Rubber Truck Air Springs

Name: Rubber Truck Air Springs
Brand: GUOMAT
Price: 59 USD

China Rubber Truck Air Springs wholesale

Brand Name : GUOMAT

Model Number : 881 MB

Certification : ISO/TS16949

Place of Origin : Guangdong , China

MOQ : 1pc

Price : $59-159/pc

Payment Terms : T/T, Western Union,paypal or others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customer's need

Material : Rubber ,Steel ,Aluminum

Bellows : 1T66F-10.8

FIRESTONE : W01 M58 8966

GOODYEAR : 1 R 14-748

CF GOMMA : 1 TC 360-45

TAURUS KR : 836-05

Contact Now

Truck Air Springs 881 MB GOODYEAR 1 R 14-748 CF GOMMA 1 TC 360-45 for BPW 36 Axle

GUOMAT 1T881MB Technical parameters

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12

Screw Center Distance of Top Cover Plate : 210 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1,5.

Distance Between Gas Hole and Stud :25 mm

Distance Between Gas Hole and Central axis :95 mm

❸ Cover Plate

Top Cover Plate Diameter: Ø311.5 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 355 mm

❺ Bumper block / Buffer block

Bumper Block height :30 mm

❻ Bottom Piston

Bottom Piston Diameter : Ø256mm

Bottom Piston Height :188.5 mm

❼ Piston Bolt

Piston Bolt Tooth : M16

12 pieces of Bolt

Middle inside between center Bolt : 70 mm

Middle faster between center Bolt : 120 mm

Inside the most close Bolt :45 mm

Inside and the beside Bolt:80 mm

881 MB details OEM References

Cross References	Vehicles OEM References
CONTITECH 881 MB**CPL	BPW BPW 36
FIRESTONE 1T66F-10.8 W01 M58 8966**CPL	BPW 05.429.43.51.0
GOODYEAR 1 R 14-748	BPW 05.429.40.61.1
DUNLOP FR D14 B 41**CPL	BPW 05.429.41.36.1
CF GOMMA 1 TC 360-45**CPL	BPW 05.429.40.08.1
TAURUS KR 836-05**CPL	Meritor : MLF7065
Airtech : 130522/3881-01k
Granning: 15917
Pirelli: 1TC 360-45
WABCO : 951 814 712 0

881MB W01-M58-8966 / W01M588966 / WO1 M58 8966

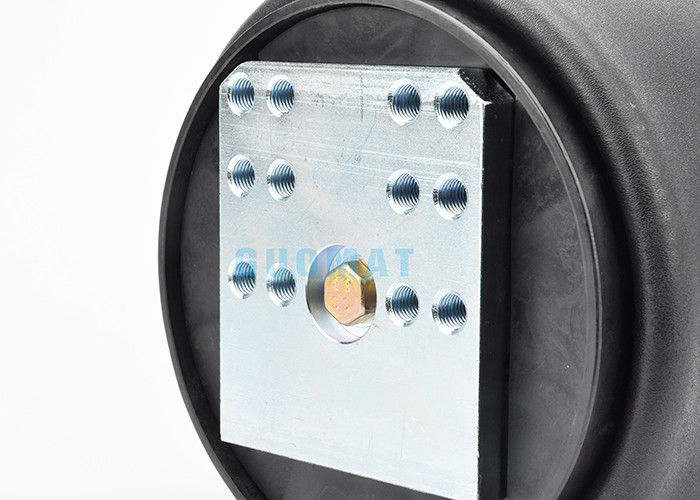

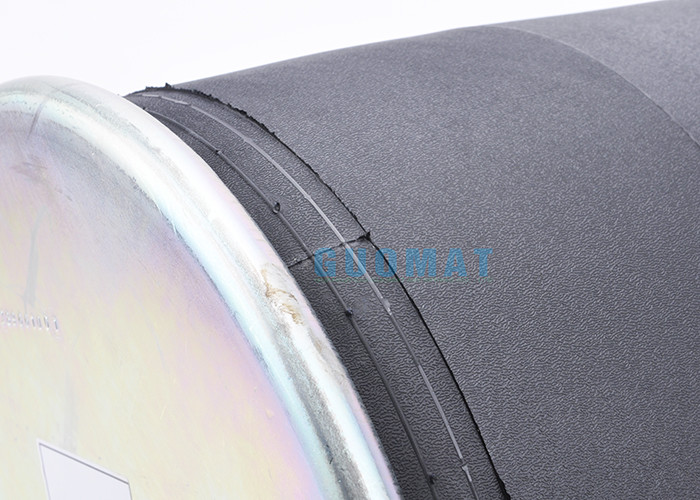

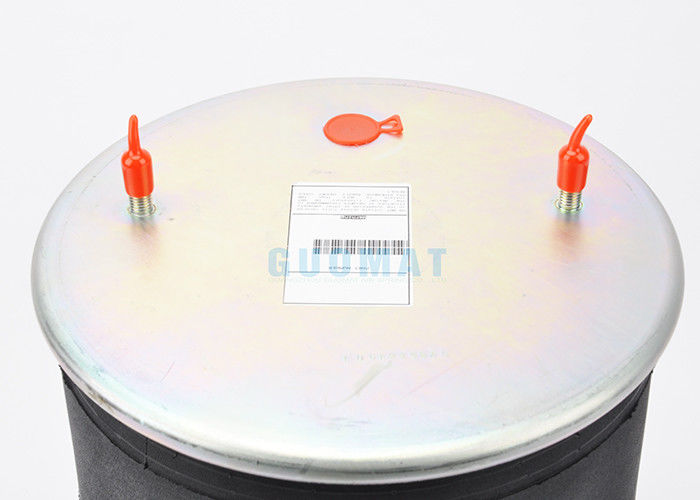

881 MB detail pictures

t Rubber Truck Air Springs u

Rubber Truck Air Springs
