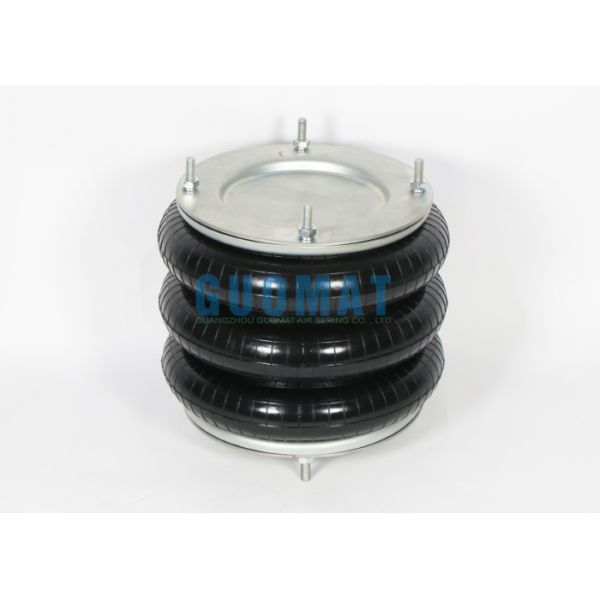

12"x 3 Triple Bellow Air Spring FT 412-32 DS Contitech Rubber Industrial Air Spring
Product Description
| Parameter | Description |
| Brand | GUOMAT |
| Product Type | Industrial Air Spring |
| Model Number | 3B12X3T |
| Product Name | Industrial Air Spring / Air Bellow |
| Primary Material | High-Strength Rubber |
| Operating Medium | Compressed Air (Dry, Lubricated) |
| Temperature Range Standard | -30°C to +70°C |
| Pressure Range | 2 - 7 bar |
| Mounting Type | Triple Convoluted |
| Application | Industrial Machinery, Vibration Isolation, Suspension Systems, Precision Equipment Platforms |
| Warranty | 12 Months |
Technical Data : M/31123
Medium Compressed: air
Operating Temperature: 30℃ ... 70℃
Operating Pressure: 0 ... 8 bar, 0 ... 116 psi
Port Size: G1/2
Nominal Diameter: 12"
Number Of Convolutions: 3
Stroke Length: 330 mm
Theoretical Force: 40600 N
Dimensions - Height: 350 mm
Dimensions - Length: 330 mm
Dimensions - Width: 330 mm
Weight: 6.9 kg
GUOMAT 3B12X3T Repalces These Air Springs
Continental ContiTech: FT 412-32 DS
Continental ContiTech: FT 412-32 1/2 M10
Continental ContiTech Order Number: 66339
Continental ContiTech: FT 412-32 CI G1/2
Continental ContiTech: FT 412-32 CI G1/2 M10
Continental ContiTech Bellow: FT412-32 / FT 412-32 / FT412-32DS
Firetsone Number: W01-R58-4062 / WO1-R58-4062
Firetsone Number: W01 R58 4062 / WO1 R58 4062
Firetsone Number: W01R584062 / WO1R584062
Firetsone Style: 12X3
Dunlop Pneuride: 12X3 / 12''X3
Dunlop Springride: SP1542 / SP 1542
Norgren: M/31123 / M 31123 / M31123
Common Applications of Air Springs
- Industrial Equipment Vibration Control: Installed under precision machine tools, stamping presses, optical platforms, and other equipment to isolate external vibrations and vibrations generated by their own operation.
- Height Adjustment Platforms: Used in automated production lines and testing benches, they precisely control the platform's height by adjusting air pressure.
- Material Handling: Used as support elements to lift, lower, or maintain the height of loads, such as on assembly lines.
- Load Support: Provides constant support force for loads of varying weights, compensating for weight variations.
Operation Angle Data Information Table
| Norgren Models | NominalØ(inch)x convolutions | Height H(mm) at |
| α =50° | α =10° | α =15° | α =20° | α =25° |
| M/31061 | 6X1 | 60-85 | 65-80 | - | - | - |
| M/31062 | 6x2 | - | 90-155 | 95-150 | 105-145 | 110-135 |
| M/31081 | 8x1 | 60-105 | 70-100 | - | - | - |
| M/31082 | 8x2 | - | 90-210 | 100-205 | 110-200 | 115-190 |
| M/31101 | 10x1 | 60-125 | 70-115 | 80-105 | - | - |
| M/31102 | 10x2 | - | 95-260 | 115-250 | 135-245 | 155-235 |
| M/31103 | 10x3 | 185-390 | 245-370 | 280-350 | - | - |
| M/31121 | 12x1 | 60-125 | 75-115 | 90-105 | - | - |
| M/31122 | 12x2 | - | 100-255 | 110-245 | 115-235 | 160-225 |
| M/31123 | 12x3 | 200-375 | 230-340 | 250-310 | - | - |
| M/31141 | 14 1/2x1 | 65-145 | 85-135 | - | - | - |
| M/31142 | 14 1/2x2 | - | 105-300 | 115-290 | 135-275 | 170-260 |
| M/31143 | 14 1/2x3 | 280-430 | 300-390 | 310-370 | - | - |
| M/31162 | 16x2 | - | 125-350 | 150-340 | 185-325 | 225-310 |
| M/31163 | 16x3 | 200-510 | 350-480 | 370-450 | - | - |
Product Pictures
