Goodyear Rubber Air Bellow 1B9-202 Single Convoluted Air Spring For Industrial Equipment
Product Description
Spring Type: Single Convoluted Air Spring
Brand: GUOMAT
Model Number: 1B9202
Condition: Brand New
Warranty: 12 Months
Material: Rubber and Steel
OEM Reference Number
Cross Goodyear 1B9-202
Cross Goodyear 1B 9-202
Cross Goodyear 1B9 202
Cross Goodyear 1B9202
Cross Goodyear 578 91 3 201
Cross Goodyear 578-91-3-201
Cross Goodyear 578913201
Cross Enidine YI-1B9-202
Cross Enidine YI 1B9 202
Cross Enidine YI1B9202
1B9202 Single Convoluted Air Bags Technical Data
Air Inlet: G3/4
Top Cover Plate Diameter: 160mm
Bottom Cover Plate Diameter: 160mm
Convolutions: Single
Bellows Type: Single Convoluted
Bumpers: w/o Bumpers
Natural Height: 128mm
Threaded Hole on Top Cover Plate: 2XM8X1.25
Threaded Hole on Bottom Cover Plate: 2XM8X1.25
Center Distance Between Top Threaded Holes: 70mm
Center Distance Between Bottom Threaded Holes: 70mm
Goodyear Single Convoluted Air Spring
| Bellows Number | Goodyear Number | Top Plate Number | Bottom Plate Number | OEM Number |
| 578-91-3-301 | 1B12-301 | ASA-92-8-002 | ASA-92-6-002 | Contitech FS330-11 468 Firestone W01-358-7009 |
| 578-91-3-301 | 1B12-305 | ASA-92-8-006 | ASA-92-6-002 | Firestone W01-358-6920 Firestone W01-358-7043 |
| 578-91-3-301 | 1B12-306 | ASA-92-8-002 | ASA-92-6-002 | |
| 578-91-3-301 | 1B12-313 | ASA-92-8-002 | ASA-92-6-002 | Contitech FS330-11 474 Firestone W01-358-7008 |
| 578-91-3-301 | 1B12-322 | ASB-92-8-164 | ASA-92-6-002 | Contitech FS 330-11 467 |
| 578-91-3-351 | 1B14-350 | ASA-92-8-028 | ASA-92-6-013 | Contitech FS330-11 442 Firestone W01-358-7103 |
| 578-91-3-351 | 1B14-351 | ASA-92-8-028 | ASA-92-6-013 | Contitech FS530-14 447 Firestone W01-358-7104 Firestone W01-358-7105 |
| 578-91-3-351 | 1B14-358 | ASA-92-8-031 | ASA-92-6-015 | Contitech FS530-14 339 Firestone W01-358-7112 |

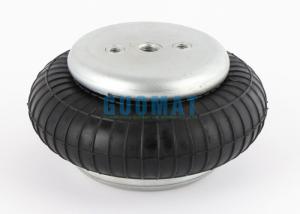

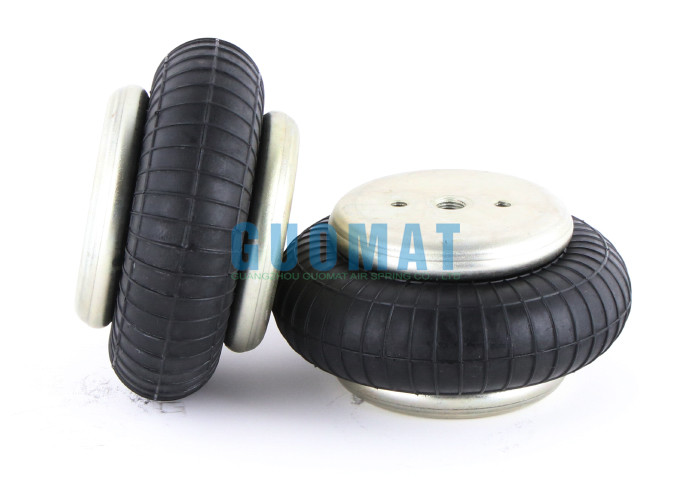

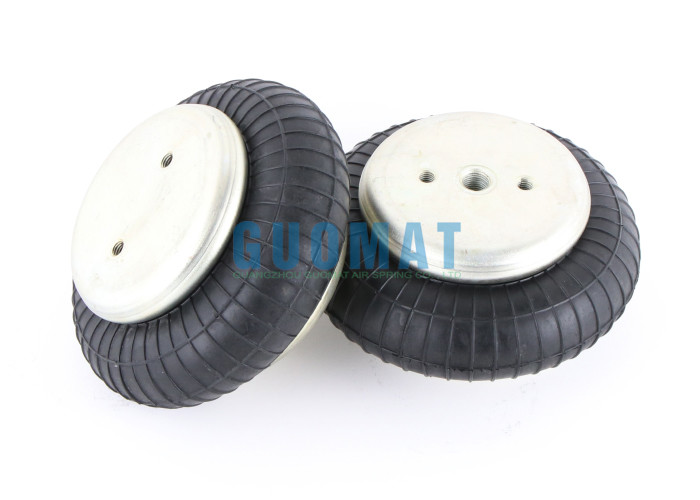

Product Picture
