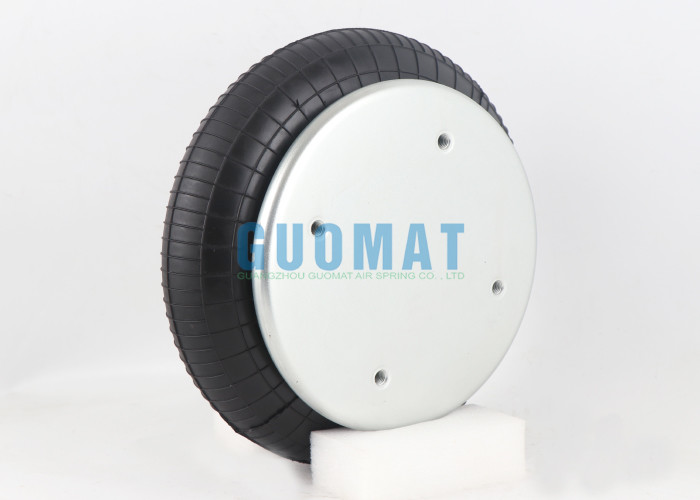

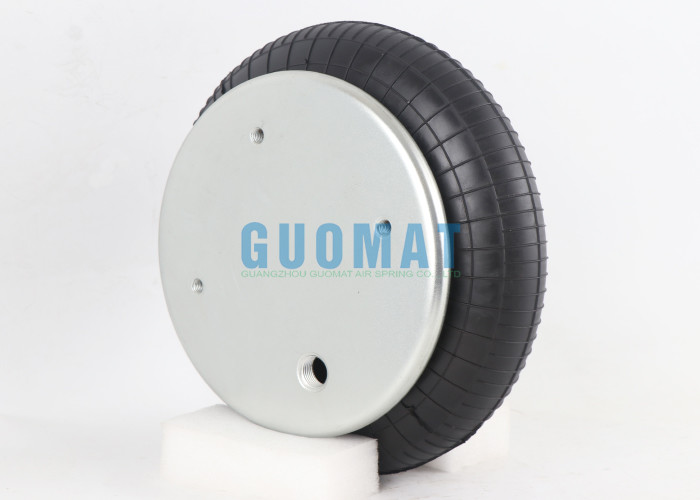

Rubber Singe Convoluted Air Spring FS330-11 468 Contitech 1B12-301 Goodyear Air Suspension
Product Description
GUOMAT NO.: 1B5330P03
Can Replace Firestone W01-358-7009 / WO1-358-7009
Can Replace Firestone W01 358 7009 / WO1 358 7009
Can Replace Firestone W013587009 / WO13587009
Can Replace Contitech FS330-11 468
Can Replace Contitech FS 330-11 468
Can Replace Goodyear 1B12-301
Can Replace Goodyear 1B 12-301
Can Replace Goodyear 578913301
Can Replace Goodyear 578 91 3 301
Can Replace Goodyear 578-91-3-301
Can Replace Triangle 6374
Can Replace Triangle 4468
Can Replace SAF Holland 90557002
Can Replace SAF Holland AR741
1B5330P03 Suspension Air Bellow Techncal Data
The maximum outer diameter of GUOMAT 1B5330P03 is 325mm (under 7Bar air pressure), the diameter of the top and bottom covers is 231mm, G1/4 air holes, M10X1.5 threaded holes, the center distance between the threaded holes is 140mm, the threaded holes are 57mm away from the air holes, the maximum height is 160mm, the minimum height is 55mm, and the compressed height is 105mm.
Vibration Isolation-Dynamic Characteristic Values
Design Height: H recommended 130mm,minimum100mm
| Pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.V(I) |
| Force (Load) | kN | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29.1 | 6.8 |
| Spring Rate | N/cm | 2645 | 3290 | 3935 | 4580 | 5225 | 58702.5 |
| Natural Frequency | Hz | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 |
Pneumatic Application-Static Characteristic Values
Force P
| Pressure | Bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol.(I) |
| Height H(mm) | 130 | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29.0 | 7.0 |
| 120 | 11.9 | 15.7 | 19.6 | 23.8 | 27.8 | 31.8 | 6.3 |
| 110 | 12.7 | 16.9 | 21.1 | 25.8 | 30.1 | 34.4 | 5.8 |
| 100 | 13.6 | 18.1 | 22.7 | 27.6 | 32.1 | 36.7 | 5.6 |
| 90 | 14.4 | 19.2 | 24.0 | 29.1 | 34.0 | 38.9 | 5.3 |
| 80 | 15.0 | 20.2 | 25.2 | 30.5 | 35.5 | 40.6 | 4.9 |
| 70 | 15.5 | 20.9 | 26.2 | 31.6 | 36.9 | 42.1 | 4.3 |
| 60 | 16.0 | 21.6 | 27.1 | 32.6 | 38.0 | 43.3 | 3.9 |
The Drawing of 1B5330P03 Suspension Air Bellows
