W01-M58-7679 Double Convoluted Industrial Air Spring 2B9-269 Goodyear Air Spring
Product Introduction
Double convoluted industrial air spring is an elastic element composed of two layers of rubber airbags. It provides support and shock absorption through compressed air and is widely used in industrial machinery, rail transportation, precision equipment and other fields. Its outer rubber material is wear-resistant and corrosion-resistant, and the inner reinforced cord layer can withstand high pressure. Compressed air is filled in the middle to form an elastic air chamber, and the stiffness and load-bearing capacity can be flexibly adjusted by adjusting the air pressure. Compared with the single-layer structure, the double-layer design has higher stability and fatigue resistance, can effectively absorb multi-directional vibration and impact, and extend the life of the equipment.
GUOMAT 2B7679 can replace Firetsone W01-M58-7679 / W01 58 7679 / W01M587679
GUOMAT 2B7679 can replace Firetsone Style 20C2
GUOMAT 2B7679 can replace Goodyear 2B9-269 / 2B 9-269 / 2B9 269
GUOMAT 2B7679 can replace Dunlop S09280 / S0 9280
GUOMAT 2B7679 can replace Gart T291/2B
GUOMAT 2B7679 can replace ORDER 213010
GUOMAT 2B7679 can replace AIRKRAFT 113010
R.O.R/Meritor: 21221356
Weweler: US 07394F
Schmitz trailer: 016808
Granning: 15670
GUOMAT 2B7679 Industrial Technical Parameters
Convolutions: Double/2
The max. height: 325mm
The min. height: 95mm
The rubber bellows max.outer diameter: 262mm
Air inlet: 1/4NPT
Blind Nuts: 2XM10X1.5
Top and bottom caover plate diameter: 160mm
Center distance between threaded holes: 89mm
This Part can be Installed on the Following Industrial Equipment
| Scissor Lift | Reel tensioning | Roller tensioning |
| Hopper Vibration and damping | Machine isolation | Platfotm lift |
| Mechanical handling stop | Direct force | Short stroke mechanical linkage |
| Quick lock device | Impact absorbtion | Hot foil stamping press |
Our Services
1. OEM Manufacturing welcome: Product, Package...
2. Sample order is available.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

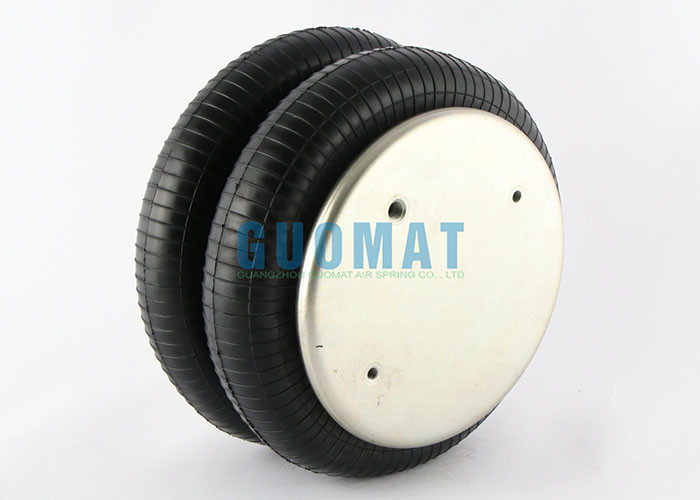

Product Picture
