262mm Design Height Flange Connection Air Suspension Spring For Vibratory Conveyors
Flange Air Spring
A flange air spring is a type of air spring (pneumatic suspension component) that incorporates flanges for mounting and sealing purposes. These flanges allow for secure attachment to other structures, such as vehicle chassis, industrial machinery, or vibration isolation systems.
Brand: GUOMAT
Part number: 2H630262
Product name: Air Spring
Nominal diameter: 530mm
Minimum compression: 90mm
Safe extension: 300mm
Full stroke: 210mm
Natural height: 262mm
Maximum outer diameter: 660mm
Cover plate diameter: 610mm
Thread specification: M10
Number of threads: 30pcs
Center distance between threads: 560mm
| Bearing Capacity | Inflation Pressure | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa | 0.6Mpa |
| Installation Height | | | | | |
| 90 | | 6241 | 9433 | 12534 | 15691 | 18710 |
| 140 | (mm) | 5559 | 8501 | 11190 | 14061 | 16950 |
| 190 | (mm) | 5104 | 7636 | 10184 | 12766 | 15298 |
| 240 | (mm) | 4710 | 6953 | 9024 | 11775 | 14224 |
| 262 | (mm) | 4371 | 6545 | 8820 | 10585 | 13410 |
| 290 | (mm) | 3910 | 5941 | 7974 | 9943 | 12184 |
| 300 | (mm) | 3810 | 5693 | 7675 | 9543 | 11742 |
| 340 | (mm) | 2812 | 4277 | 5901 | 7451 | 9190 |
| Stiffness and frequency at design height | Vertical Stiffness | (Kg/cm) | 493 | 732 | 919 | 1081 | 1234 |
| Natural frequency | Hz | 1.68 | 1.67 | 1.61 | 1.6 | 1.52 |
| cpm | 101 | 100 | 97 | 96 | 91 |
| Bearing Capacity | Inflation Pressure | 0.7Mpa | 0.8Mpa | 0.7Mpa Volume(dm3) |
| Installation Height | | | | |
| 90 | (mm) | 22277 | 25476 | 23.62 |
| 140 | (mm) | 20134 | 23184 | 37.74 |
| 190 | (mm) | 18222 | 20924 | 49.2 |
| 240 | (mm) | 16680 | 19253 | 59 |
| 262 | (mm) | 15801 | 17907 | 63 |
| 290 | (mm) | 14357 | 16470 | 67.91 |
| 300 | (mm) | 13776 | 15030 | 69.41 |
| 340 | (mm) | 10934 | 12745 | 73.12 |
| Stiffness and frequency at design height | Vertical Stiffness | (Kg/cm) | 1381 | 1539 | |
| Natural frequency | Hz | 1.48 | 1.47 | |
| cpm | 89 | 88 | |
Every standard air spring consists of 4 layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.

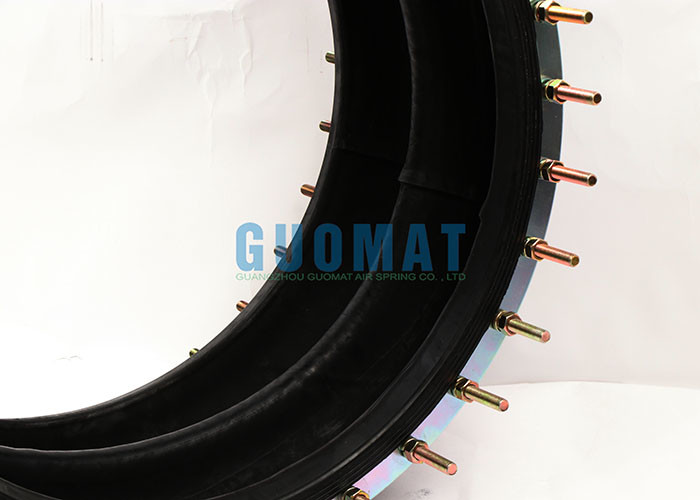

Product Image
