GUOMAT NO.: 1B7070
Name: Single Convoluted Industrial air spring
Warranty: 1 Year
Material: Rubber bellows and steel cover plate
Certification: ISO/TS16949:2009
Packing: Brown arton with (air spring), packed according to customer's requirements
Scope of application: Shock absorption of industrial equipment
Payment: T/T,PayPal,Western Union
Shipment: Ship by air,by sea,by truck or by express
1B7070 Rubber Air Bellows Technical Data
Top cover plate diameter: 105mm
Air hole: G1/4
Threaded hole of top cover plate: 2XM8X1.25
Center distance between threaded holes: 44.5mm
Center distance from threaded hole to air hole: 22.25mm
Bottom cover plate diameter: 105mm
Threaded hole of bottom cover plate: 2XM8X1.25
Center distance between threaded holes: 44.5mm
Natural outer diameter: 150mm
Maximum outer diameter: 165mm
Minimum compression height: 50mm
Maximum height: 115mm
Stroke: 65mm
GUOMAT 1B7070 can Replace The Following Manufacturer Numbers
ContiTech FS70-7
ContiTech FS 70-7
ContiTech FS70-7 CI
ContiTech FS 70-7 CI
ContiTech FS70-7 CI G1/4
ContiTech FS 70-7 CI G1/4
Phoenix SP1B05
Phoenix SP 1 B 05
Bosh 822419002
Festo EB-165-65
Weforma WBE 200- E1
Weforna Air Spring
WBE 200
WBE 200-E1 G1/4
WBE 200-E3 1/4NPT
Vibration isolation - dynamic characteristic values
Design height
Recommended 90mm,minimum 70mm
| Pressure | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol V (I) |
| Force(Load) | KN | 2.7 | 3.7 | 4.7 | 5.7 | 6.6 | 7.7 | 0.9 |
| Spring Rate C | N/cm | 1040 | 1270 | 1530 | 1770 | 2060 | 2325 |
| Natural Frequenz f0 | Hz | 3.1 | 2.9 | 2.9 | 2.8 | 2.8 | 2.7 |
Pneumatic application - static characteristic values
Force F (kN)
| Pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol V (I) |
| Height H (mm) | 100 | 2.2 | 3.1 | 4.0 | 4.8 | 5.7 | 6.6 | 1.0 |
| 90 | 2.7 | 3.6 | 4.6 | 5.6 | 6.5 | 7.5 | 0.9 |
| 80 | 3.1 | 4.1 | 5.1 | 6.2 | 7.3 | 8.3 | 0.8 |
| 70 | 3.4 | 4.5 | 5.6 | 6.7 | 7.9 | 9.0 | 0.7 |
| 60 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.5 | 0.6 |
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
|
|

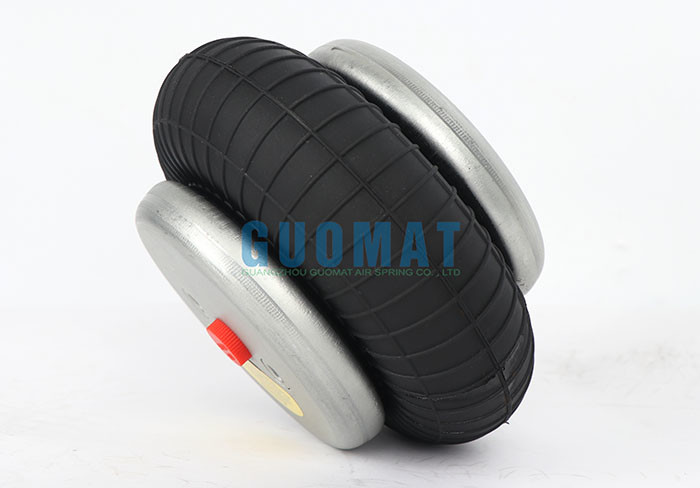

Rubber Air Bellows Navigator WBE 200-E1 Weforma Crimped Convoluted Air Springs Images
|
