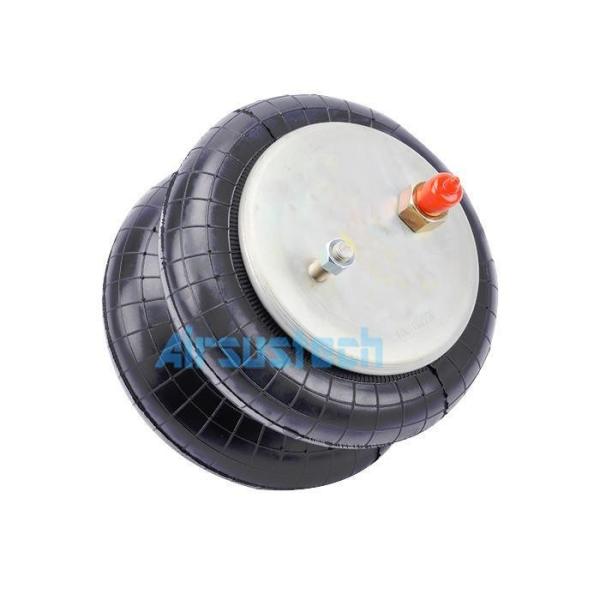

100% Tested Pneumatic Air Suspension Contitech FD 200-25 453 Effective Shock
Product Detailed Datas
- Bottom Plate Alignment: Parallel
- Bottom Plate Center To Center Diameter: 3.50 inches
- Bottom Plate Diameter: 6.31 inches
- Bottom Plate Hole Quantity: 3/4-16 UNF
- Bottom Plate Type: Steel
- Top Plate Alignment: Parallel
- Top Plate Center To Center Diameter: 3.50 inches
- Top Plate Diameter: 6.31 inches
- Top Plate Hole Quantity: 3/4-16 UNF
- Top Plate Type: Steel
- Expanded Height: 13.50 inches
- Compressed Height: 3.10 inches
- Spring Type: Double Convoluted
- Nut/Blind Nuts Type: 3/4-16 UNF
- Max Rubber Bellow Diameter: 10.40 inches
- Air Connection: 1/4-18 NPTF
- Operation: Gas-filled
Other OEM Numbers
| Fire-stone: W01-358-5231 |
| Fire-stone: W01 358 5231 |
| Fire-stone: W013585231 |
| Fire-stone: WO13585231 |
| Fire-stone: WO1 358 5231 |
| Fire-stone: WO1-358-5231 |
| CONTITECH: FD 200-25 453 |
| CONTITECH: FD 200 25 453 |
| CONTITECH: FD 20025453 |
| Contitech :161336 |
| Goodyear: 2B9-218 |
| Goodyear: 2B9 218 |
| Goodyear: 2B9218 |
| Goodyear: 578923206/2 |
| Triangle: 6332 |
| Triangle: 4453 |
| Leland: Sc2072 |
| SAF Holland : 57006927 |
| Tuthill Technology: 1290601 |
| Reyco: 12906-01 |
Supports And Services
From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.
- Global Manufacturing and Sales Facilities offer our customers:
- Highly Trained Distribution Network
- State-of-the Art Engineering Capabilities
- Custom Solution Development
- Customer Service Specialists
- Multiple Open Communication Channels
Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.
We Also Produce Other Type Contitech Air Springs
| Single Convoluted | Double Convoluted | Triple Convoluted |
| FS 40-6 CI | FD 40-10 CI | FT 330-29 CI |
| FS 50-5 CI | FD 70-13 CI | FT 430-32 CI |
| FS 70-7 CI | FD 110-15 CI | FT 530-32 CI |
| FS 100-10 CI | FD 120-17 CI | FT 530-35 CI |
| FS 120-10 CI | FD 120-20 CI | FT 960-34 CI |
| FS 120-12 CI | FD 200-19 CI | FT 1330-35 CI |
| FS 200-10 CI | FD 200-22 CI | |
| FS 310-12 CI | FD 200-25 CI | |
| FS 330-11 CI | FD 330-22 CI | |
| FS 330-14 CI | FD 330-30 CI | |
| FS 530-11 CI | FD 530-22 CI | |
| FS 530-14 CI | FD 530-35 CI | |
| FS 960-12 CI | FD 960-22 CI | |
| FS 1330-11 CI | FD 1330-25 CI | |

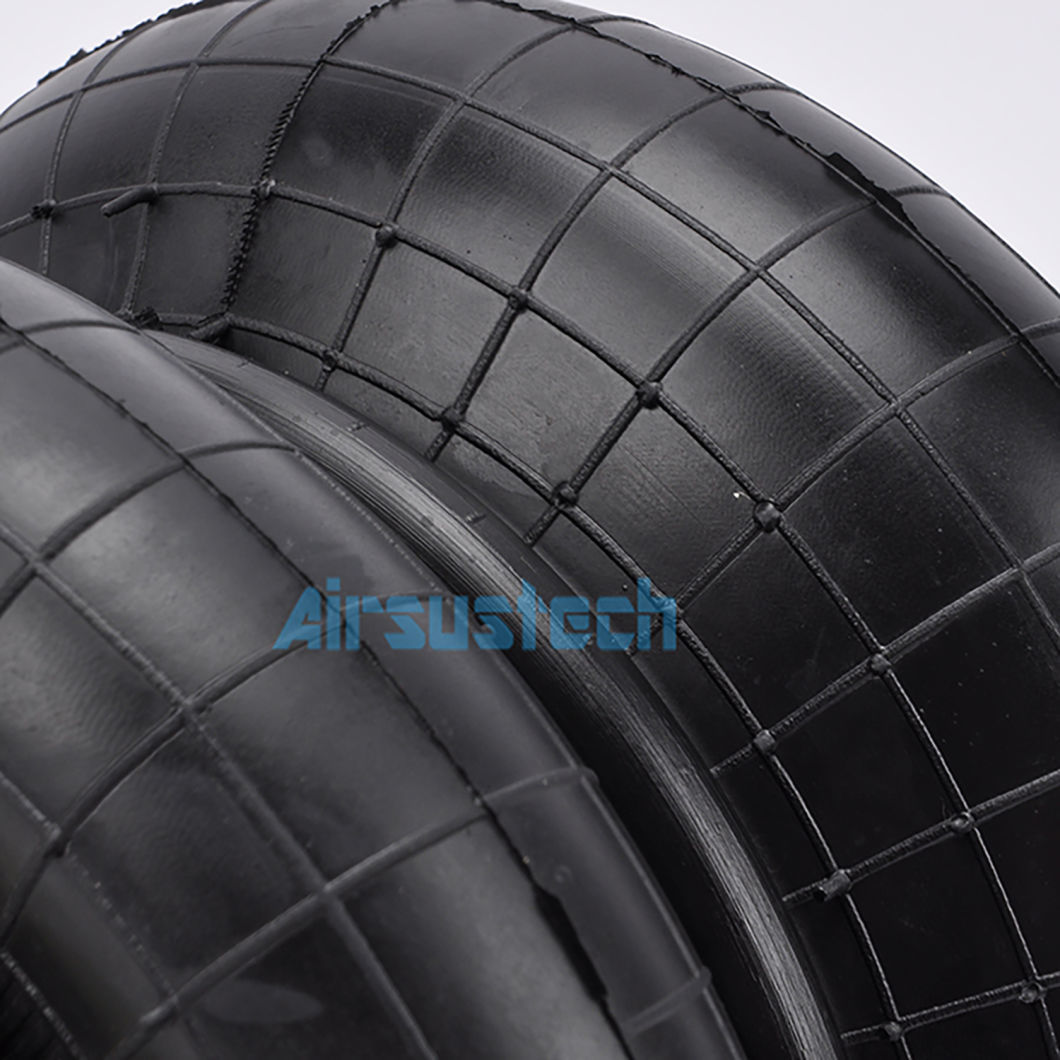

2B5231 Real Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory Workshop
