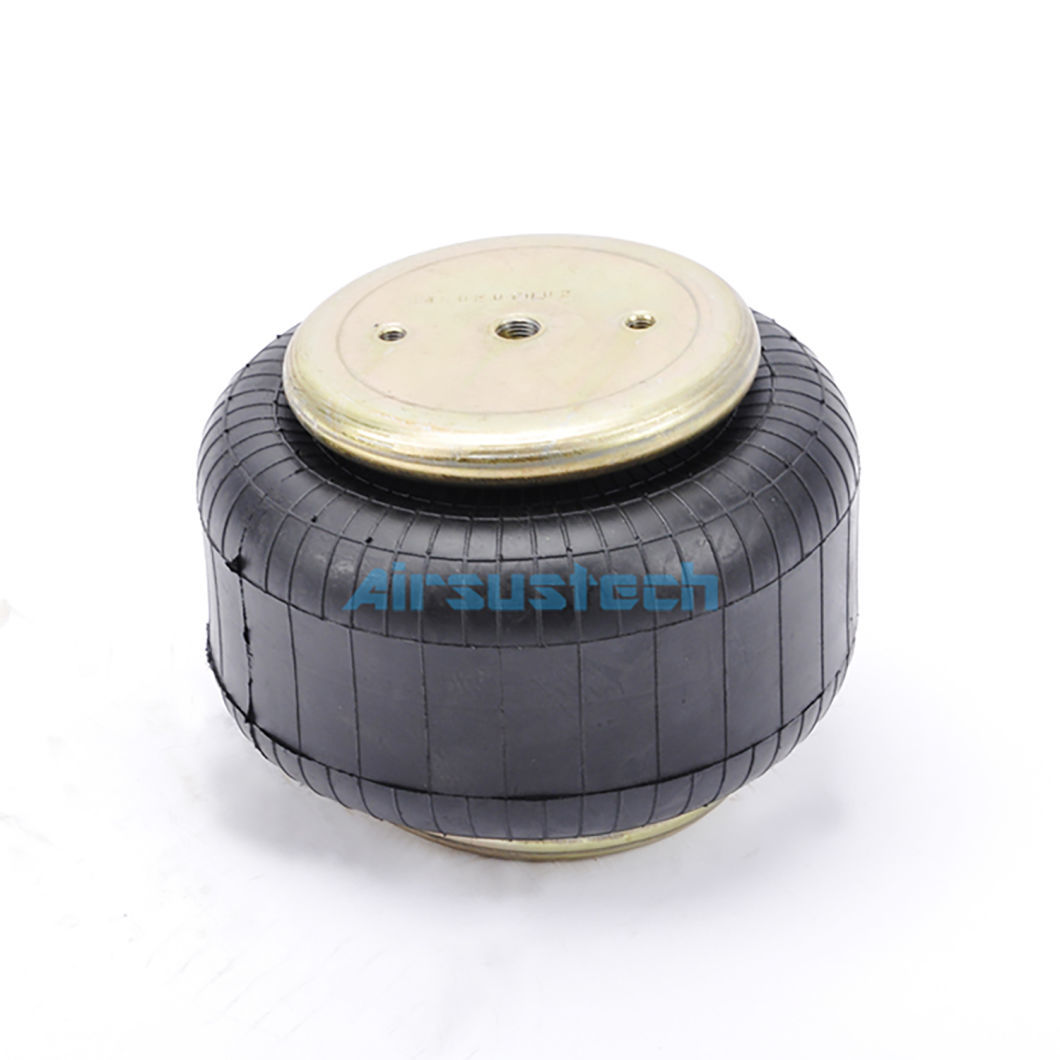

12 Months Quality Assurance Goodyear 1B8-580 Air Spring for Bronzing Machine
OEM Numbers
Goodyear 1B8-580
Goodyear 1B8 580
Goodyear 1B8580
Fire-stone W01-358-7598
Fire-stone W013587598
Fire-stone W01 358 7598
Fire-stone WO13587598
Fire-stone WO1-358-7598
Fire-stone WO13587598
Product Specifications
Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 2.75 inches
Bottom Plate Diameter: 5.31 inches
Bottom Plate Hole Quantity: 3/8-16 blind nuts
Bottom Plate Type: Steel |
Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 2.75 inches
Top Plate Diameter: 5.31 inches
Top Plate Hole Quantity: 3/8-16 blind nuts
Top Plate Type: Steel |
Expanded Height: 7 inches
Compressed Height: 2 inches
Spring Type: Single Convoluted
Nut/Blind Nuts Type: 2×3/8-16 blind nuts
Max Rubber Bellow Diameter: 9.6 inches |
Air Connection: 1/4NPT
Operation: Gas-filled |
GUOMAT Air Spring Structure
1. It is a rubber element, a flexible body formed by vulcanizing a cord layer, an inner and outer rubber layer, or a wire ring. It achieves its elastic function through the compressibility of the filled air. Commonly known as air spring, rubber airbag, airbag, etc.
2. The rubber air spring, base, socket (piston), and seal are integrated into the overall shape of the sealed cavity.
3. Depending on the shape, it can be divided into three categories: capsule, film, and shell. There are four types of sealing structures: pressure self-sealing, flange clamping, ring seal, and mixed type.
4. The load of the air spring shock absorber is mainly borne by the cord. The cord layer mainly consists of two layers, while products with special requirements consist of four layers of cord. The inner rubber primarily serves a sealing function and, in addition to the sealing function of the outer rubber, also fulfills a protective function.
We Have Other Type Goodyear Air Suspensions
| 1B12-305 | 2B6-530 | 2B6-531 | 3B12-304 |
| 1B14-350 | 2B6-532 | 2B6-535 | 3B14-351 |
| 1B14-352 | 2B6-536 | 2B7-540 | 3B14-354 |
| 1B14-364 | 2B7-541 | 2B7-542 | 3B15-376 |
| 1B15-376 | 2B7-545 | 2B7-546 | 3B15-378 |
| 1B15-378 | 2B8-550 | 2B8-552 | 3B12-305 |
| 1B12-313 | 2B8-553 | 2B8-554 | 3B14-353 |
| 1B14-351 | 2B9-200 | 2B9-201 | 3B15-375 |
| 1B14-362 | 2B9-204 | 2B9-205 | 3B15-377 |
| 1B15-375 | 2B9-216 | 2B9-250 | |
| 1B15-377 | 2B9-251 | 2B9-253 | |
| | 2B12-309 | 2B12-218 | |
| | 2B12-425 | 2B12-429 | |
| | 2B12-437 | 2B12-416 | |
| | 2B14-352 | 2B14-353 | |
| | 2B14-354 | 2B14-355 | |
| | 2B14-362 | 2B14-363 | |
| | 2B14-452 | 2B15-375 | |
| | 2B15-376 | 2B15-377 | |
| | 2B15-378 | 2B19-8433 | |
| | 2B22-8539 | | |
The Detailed Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
