Dunlop FR 8"X1 S08101 Single Convoluted Air Bellow Contitech FS 120-9 Air Spring

Name: Dunlop FR 8quotX1 S08101 Single Convoluted Air Bellow Contitech FS 1209 Air Spring
Brand: GUOMAT
Price: 1 USD

China Dunlop FR 8"X1 S08101 Single Convoluted Air Bellow Contitech FS 120-9 Air Spring wholesale

Brand Name : GUOMAT

Model Number : 1B1209

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : 1B1209

Quality : 100 % Tested

Purpose : Reduce Shock

Trademark : GUOMAT

After-sales Service : 12 Months

Firestone : W01-M58-6165

Festo : EB-215-80

Port Size : G3/4

Contact Now

Dunlop FR 8"X1 S08101 Single Convoluted Air Bellow Contitech FS 120-9 Air Spring

Product Detailed Datas

Diameter of the Top Cover Plate: 135 mm

Center-to-Center Distance of Screws on the Top Cover Plate: 70 mm

Diameter of the Bottom Cover Plate: 135 mm

Center-to-Center Distance of Screws on the Bottom Cover Plate: 70 mm

Screw (Nut) Thread Count for the Top Cover Plate: 2×M8×1.25

Screw (Nut) Thread Count for the Bottom Cover Plate: 2×M8×1.25

Air Inlet: G3/4

Maximum Diameter of the Rubber Bellow: 215 mm

Maximum Height: 115 mm

Minimum Height: 50 mm

OEM Cross References

Cotitech FS 120-9

Cotitech FS120-9

Cotitech FS 120 9

Cotitech FS120 9

Dunlop(FR) 8''1S08101

Dunlop(FR) 8''1 S08101

Bos-ch 8224 19003

Bos-ch 822419003

Fes-to EB-215-80

Fes-to EB 215 80

Fes-to EB215 80

Fes-to EB21580

Weforma WBE 300-E1

Weforma WBE 300 E1

Weforma WBE300-E1

Weforma WBE300 E1

Weforma WBE300E1

Fire-stone W01-M58-6165

Fire-stone W01M586165

Fire-stone W01 M58 6165

Fire-stone WO1M586165

Fire-stone WO1-M58-6165

Fire-stone WO1 M58 6165

Norgren PM/31081(8×1)

Airtech 140293

Airtech 111003

Airtech 1B-190FB

Megatech 1S120-9 3/4 M8

Megatech 1S120 9 3/4 M8

Megatech 1S120 9 3/4M8

Product Applications

Scissor lift

Hopper vibration and damping

Mechanical handling stop

Quick lock device

Reel tensioning

Machine isolation

Direct force

Impact absorbtion

Roller tensioning

Platform lift

Short stroke mechanical linkage

Hot foll stamping press

Six Reasons to Choose Us

1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound

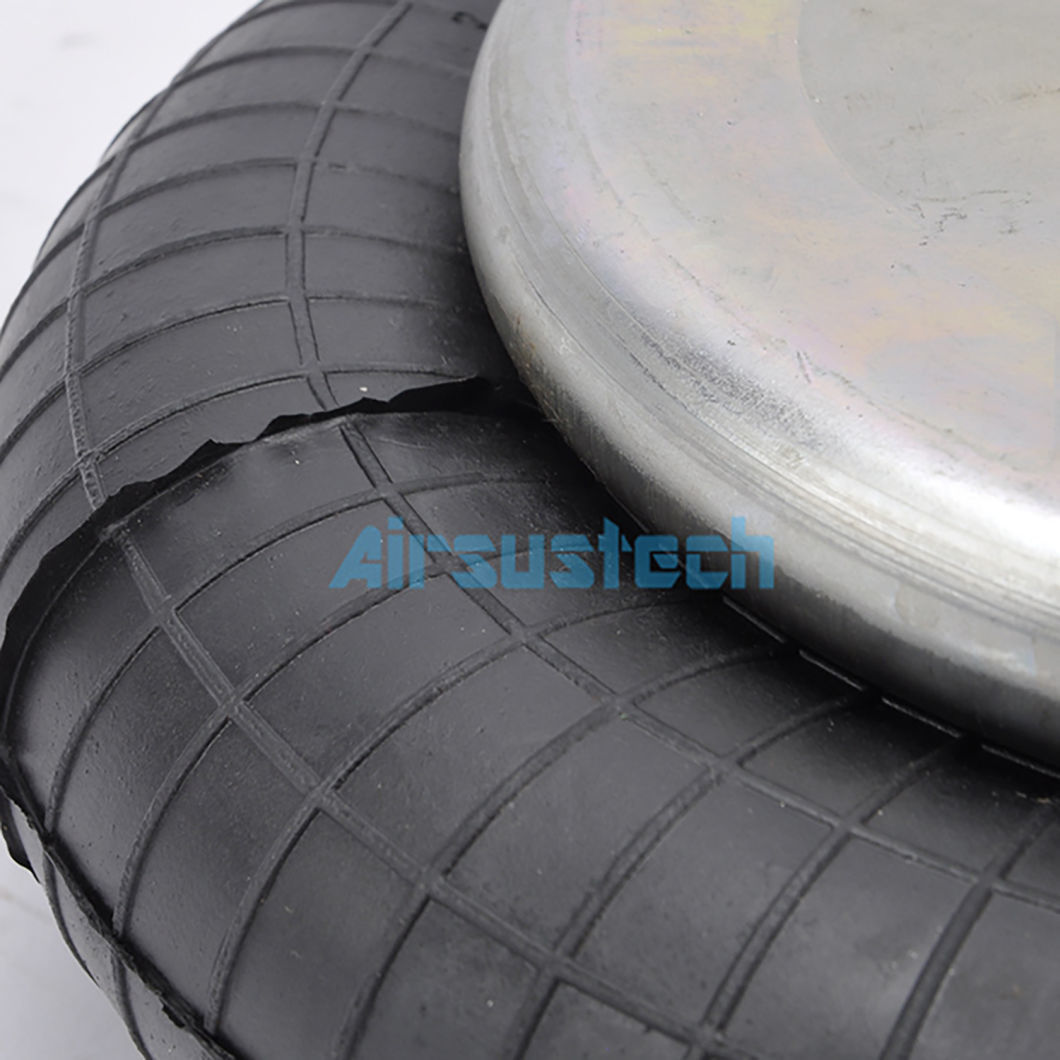

The Related Pictures of 1B1209

Dunlop FR 8"X1 S08101 Single Convoluted Air Bellow Contitech FS 120-9 Air Spring

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
