Single Natural Rubber Bellow W01R584050 Firestone Air Spring with Flange Ring
The Introduction of GUOMAT Air Springs
Air springs are extremely durable, precisely engineered, and cost-effective for a variety of actuation and vibration isolation applications. AIRSUSTECH air springs feature a proven design, natural rubber flex member construction, and corrosion-resistant end retainers to deliver superior quality and performance.
1B4.5×1P Air Bag Detailed Datas
Cover Plate Diameter: 110 mm
Center to Center Distance: 93 mm
Air Hole: G3/8
Natural Height: 78 mm
Max Rubber Bellows Width: 120 mm
Bellows Type: Single Convoluted
OEM Cross References
| Firestone Part Number W01-R58-4050, W01 R58 4050, W01R584050 WO1-R58-4050, WO1 R58 4050, WO1R584050 |
| Dunlop Pneuride Part Number 4 1/2" x 1, 4 1/2' x 1, 4 1/2 x 1 |
| Dunlop Springride Part Number SP2334, SP 2334, SP 23 34 |
| Contitech Part Number FS 44-5 DI, FS44-5 DI, FS445 DI |
| Norgren Part Number PM/31041, PM31041, PM 31041 |
| Parker Part Number 9109400 |
Guide to Temperature Ranges for Air Spring Applications
1. Continuous service
The maximum operating temperature for all GUOAMT air springs must not exceed +70ºC. Continuous service is defined as 40 hours or more per week of operation at this temperature.
2. Intermittent service
The maximum permissible temperature should not exceed 70°C. Intermittent service is defined as less than 40 hours per week of operation at this temperature. For products made with natural rubber, the minimum permissible operating temperature is +70ºC. Please note that minor cracking may occur during prolonged operation at these minimum temperatures.
We Have Other Single Convoluted Air Suspensions
| GUOMAT NO. | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 2 3/4''×1 | | 2 3/4''×1 | SP2906 | FS 22-3 DI | | 9109025 |
| 4 1/2''×1 | W01R584050 | 4 1/2''×1 | SP2334 | FS 44-5 DI | PM/31041 | 9109400 |
| 1B6×1T(AI) | W01R584078 | 6''×1(Al) | SP2913 | FS 76-7 DI | PM/31061 | 9109004A |
| 1B6×1T(Steel) | W01R584052 | 6''×1(Steel) | SP1536 | FS 76-7 DS | M/31061 | 9109004 |
| 1B8×1T | W01R584054 | 8''×1 | SP1537 | FS 138-8 DS | M/31081 | 9109014 |
| 1B10×1T | W01R584057 | 10''×1 | SP2523 | FS 210-10 DS | M/31101 | 9109024 |
| 1B12×1T | W01R584060 | 12''×1 | SP1540 | FS 412-10 DS | M/31121 | 9109044 |
| 1B14 1/2''×1T | W01R584063 | 14 1/2''×1 | SP1543 | FS 614-13 DS | M/31141 | 9109064 |
| 1B16×1T | W01R584066 | 16''×1 | | FS 816-15 DS | M/31161 | 9109126 |

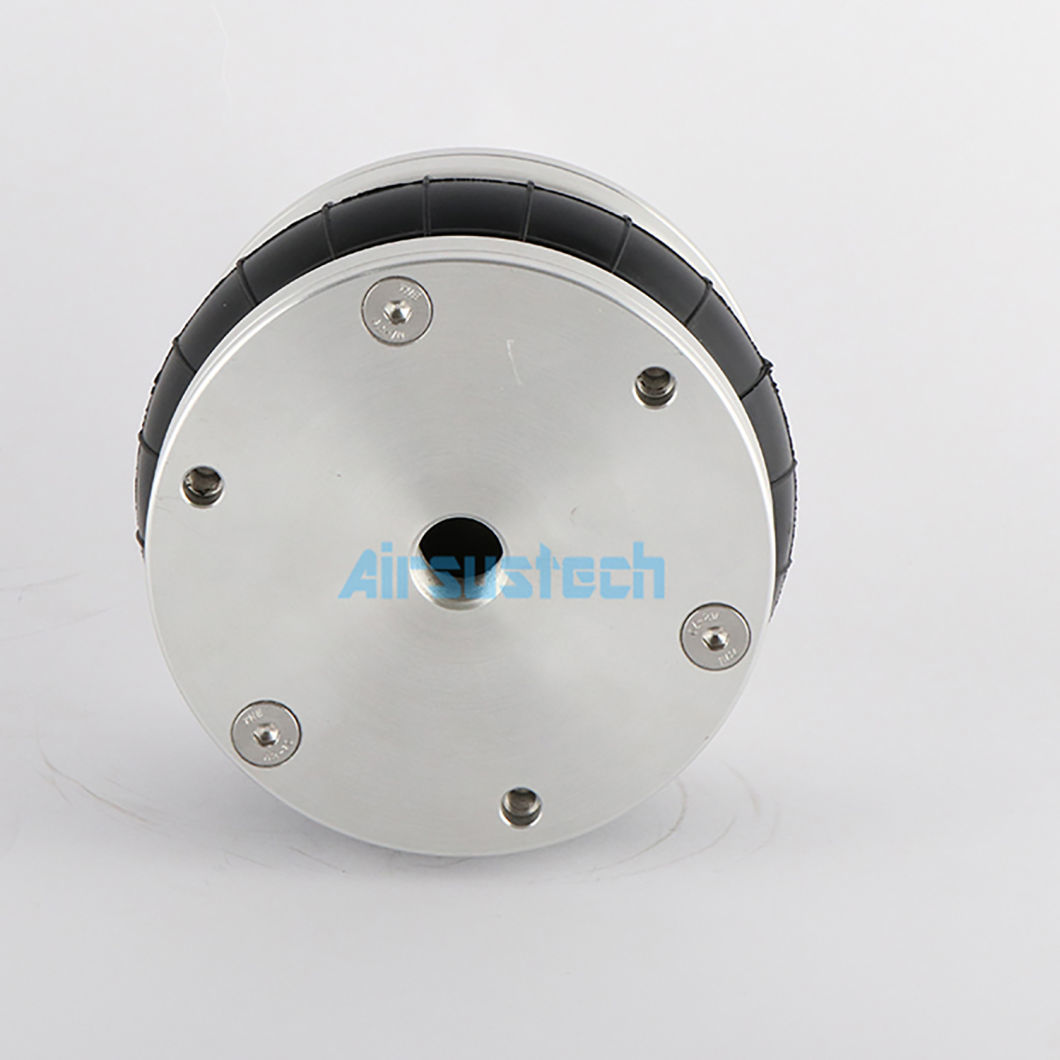

The Detailed Pictures of 1B4.5×1P
