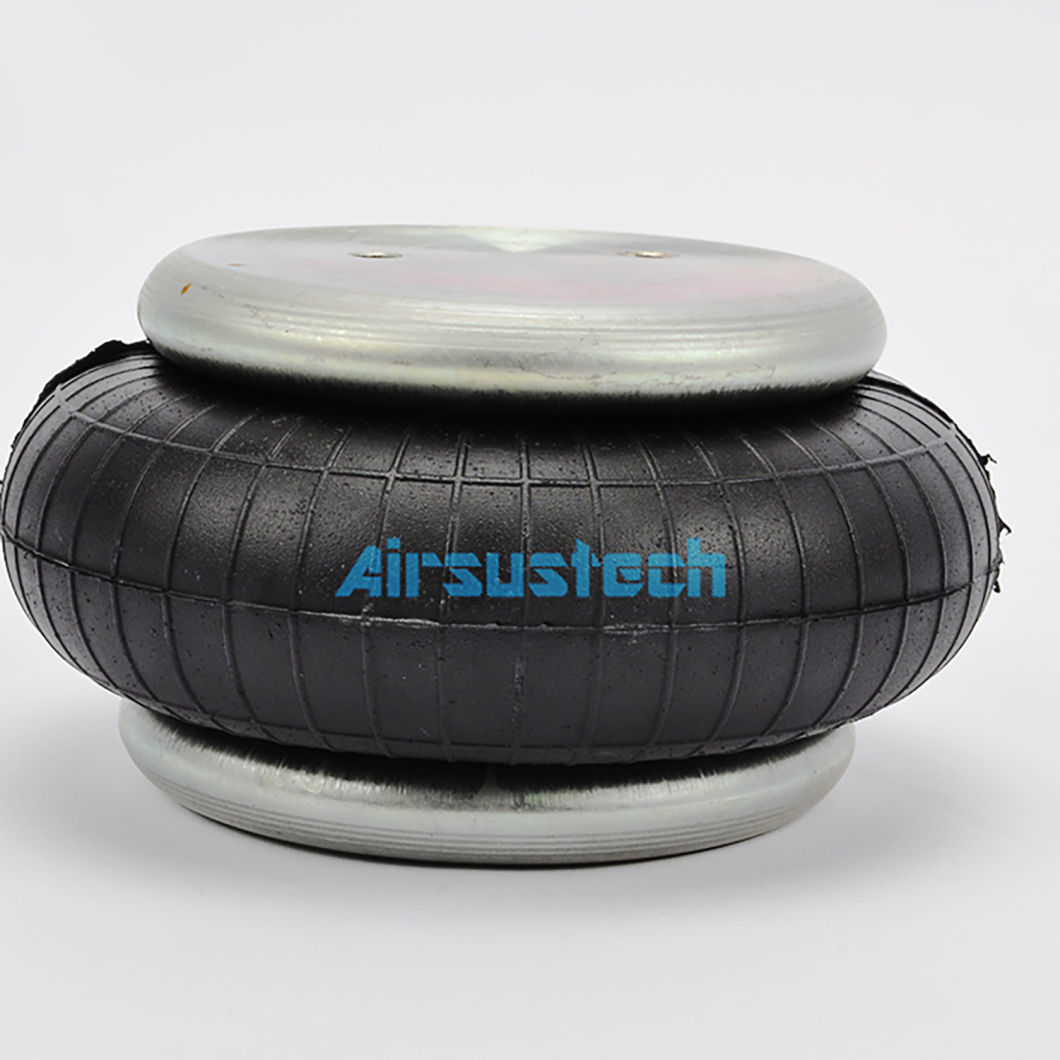

Gas-filled Air Spring Suspension Bos-CH 822419002 Contitech FS 70-7 Single Bellow
Air Spring Introduction
Air springs are highly durable, precision-crafted, and cost-efficient solutions for numerous actuation and vibration isolation needs. Constructed with fabric-reinforced neoprene or natural rubber flex members and corrosion-resistant end retainers, they ensure outstanding reliability and performance. Functioning as isolators, air springs are highly effective at minimizing the damaging impact of vibrations. They stand out by providing simultaneous vibration isolation and load-height adjustment, enabling consistent vibration dampening across varying load conditions.
1B7070 Specifications
| Top plate screw (nut) teeth: 2XM8x1.25 |
| The screw center distance of the top cover plate: 44.5mm |
| Screw (nut) teeth of the bottom cover plate: 2XM8x1.25 |
| The screw center distance of the bottom cover plate: 44.5 mm |
| Air hole/air inlet: 1/4 |
| The screw center distance between the air hole and the nut: 22.25mm |
| Top plate diameter: 105 mm |
| Diameter of the bottom cover: 105 mm |
| Maximum diameter of rubber bellows: 165 mm |
| Natural diameter of rubber bellows: 150 mm |
| Working stroke: minimum 50 mm to maximum 115 mm |
| Maximum height: 115 mm |
| Minimum height: 50 mm |
Other Part Numbers
| Cotitech | FS 70-7 | Firestone | W01-M58-6155 |
| Cotitech | FS70-7 | Firestone | W01 M58 6155 |
| Cotitech | FS 70 7 | Firestone | W01M586155 |
| Cotitech | FS70 7 | Bosch | 8224 19002 |
| Phoenix | SP 1 B 05 | Bosch | 822419002 |
| Phoenix | SP 1B 05 | Weforma | WBE 200-E1 |
| Phoenix | SP1 B 05 | Weforma | WBE 200 E1 |
| Phoenix | SP1B05 | Weforma | WBE200 E1 |
| Fes-to | EB-165-65 | Weforma | WBE200E1 |
| Fes-to | EB 165 65 | Fes-to | EB16565 |
| Fes-to | EB165 65 | | |
GUOMAT Air Spring Features
1. Low installation height
In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.
2. Angular movement
Depending on the type, GUOMAT air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.
3. Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.
