Yokohama Rubber Bellows Only With Hoop S-350-3R Triple Convoluted Type Air Spring

Brand Name : GUOMAT

Model Number : F-350-3

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : F-350-3

Fuction : Reduce Shock

Brand : GUOMAT

Bellows Type : Triple Convoluted

Quality Assurance : 12 Months

Suspension System : Air Spring Suspension

OEM Number : S-350-3R

Sample : Available

Contact Now

Yokohama Rubber Bellows Only with Hoop S-350-3R Triple Convoluted Type Air Spring

The Introduction of GUOMAT Air Springs

The production process and production process of the surface fabric of the air spring machine penetrate into the gap of the fabric, and the bonding of the process rubber and the fabric of the rubber rope formed by tight carding. Reduce shrinkage: The elastic deformation of the rubber should be reduced, so that the surface of the pressed rubber wire is smooth and the dimensional change is small. The air spring film required for the production of air springs usually uses a three-roller air spring machine. Through this process, it embodies the protection of the air spring in many ways, thus prolonging its service life.

OEM Cross reference

AIRSUSTECH Part No.: F-350-3

YOKOHAMA S-350-3R

YOKOHAMA S 350 3R

YOKOHAMA S-350-3

YOKOHAMA S 350 3

YOKOHAMA S350-3R

YOKOHAMA S350-3

Specifications of F-350-3 Air Bag

Design Height: 160mm

Max. Height: 250mm

Min Height: 85mm

Common Maximum Travel(mm): ±65mm

Compression Max. Outside Diameter (mm): 410mm

Standard height, approximate value at 0.49MPA internal pressure

Efective Area(cm2): 960

Volume(L): 15.0

Load (KN):47.1

Dynamic Spring Constant(n/mm): 647

Natural Vibration Frequence(Hz): 1.8

Maximum Internal Pressure (MPA): 0.88

Internal Pressure Failure(MPA): 3.9-4.9


Other Types of F Series Air Shock Suspensions

GUOMAT NO.

Yokohama Reference No.

Hight H(mm)

Commonly Maximum Stroke(mm)

The Largest Diameter When Compressed(mm)

Design High(mm)

Maximum High(mm)

Minimum Height(mm)

F-600-1

S-600-1

72

122

40

±30

700

F-600-2

S-600-2

102

172

57

±45

660

F-600-3

S-600-3

160

270

90

±68

660

F-600-4

S-600-4

218

363

123

±90

660

F-600-5

S-600-5

276

456

156

±113

660

F-550-2

S-550-2

102

172

50

±45

610

F-550-3

S-550-3

160

270

90

±68

610

F-500-2

S-500-2

102

172

57

±45

560

F-500-3

S-500-3

160

270

90

±68

560

F-500-4

S-500-4

218

363

123

±90

560

F-500-5

S-500-5

276

456

156

±113

560

F-450-1

S-450-1

72

117

40

±30

510

F-450-2

S-450-2

102

172

57

±45

510

F-450-3

S-450-3

160

270

90

±68

510

F-450-4

S-450-4

218

363

123

±90

510

F-450-5

S-450-5

276

456

156

±113

510

F-400-2

S-400-2

102

167

57

±45

460

F-400-3

S-400-3

160

260

90

±68

460

F-400-4

S-400-4

218

348

123

±90

460

F-400-5

S-400-5

276

435

156

±113

460

F-350-1

S-350-1

72

117

40

±30

450

F-350-2

S-350-2

102

160

55

±42

410

F-350-4

S-350-4

218

336

118

±85

410

F-300-1

S-300-1

72

117

40

±30

400

F-300-2

S-300-2

98

158

53

±40

360

F-300-3

S-300-3

152

242

82

±60

360

F-300-4

S-300-4

206

326

111

±80

360

F-240-4

S-240-4

206

316

111

±80

300

F-240-3

S-240-3

152

232

82

±60

300

F-240-2

S-240-2

98

148

53

±40

300

F-240-1

S-240-1

72

110

40

±30

340

F-220-4

S-220-4

206

311

111

±80

280

F-220-3

S-220-3

152

232

82

±60

280

F-220-2

S-220-2

98

148

53

±40

280

F-200-2

S-200-2

98

148

53

±35

260

F-200-3

S-200-3

152

232

82

±53

260

F-200-4

S-200-4

206

311

111

±70

260

F-160-1

S-160-1

72

102

40

±25

220

F-160-2

S-160-2

98

148

53

±35

220

F-160-3

S-160-3

152

227

82

±53

220

F-160-4

S-160-4

206

306

111

±70

220

F-120-4

S-120-4

206

306

111

±70

180

F-120-3

S-120-3

152

227

82

±53

180

F-120-2

S-120-2

98

148

53

±35

180

F-100-4

S-100-4

206

296

121

±60

160

F-90-3

S-90-3

152

222

87

±45

160

F-90-2

S-90-2

98

143

58

±30

160

F-90-1

S-90-1

76

106

46

±30

125

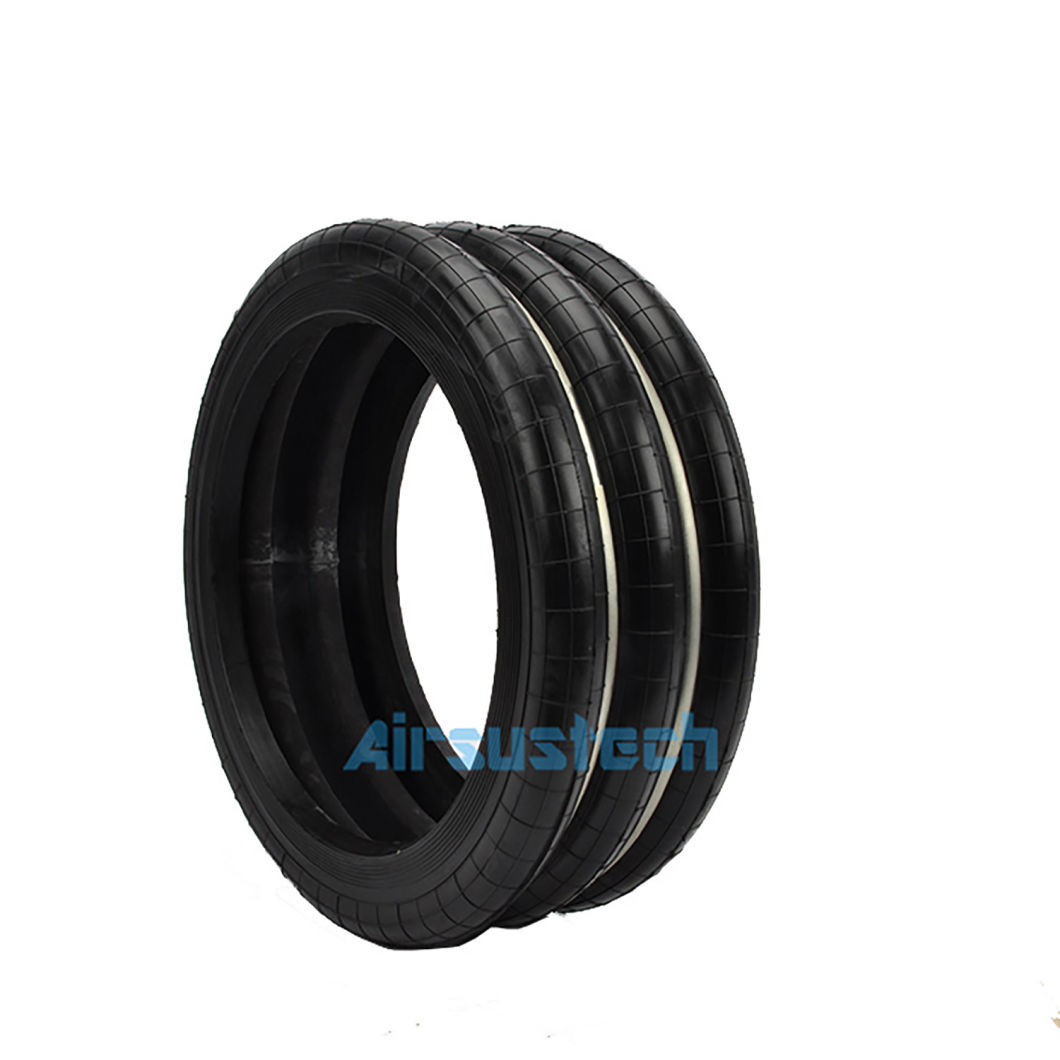

The Real Pictures of F-350-3


Yokohama Rubber Bellows Only With Hoop S-350-3R Triple Convoluted Type Air Spring

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Yokohama Rubber Bellows Only With Hoop S-350-3R Triple Convoluted Type Air Spring


Factory Workshop
Yokohama Rubber Bellows Only With Hoop S-350-3R Triple Convoluted Type Air SpringYokohama Rubber Bellows Only With Hoop S-350-3R Triple Convoluted Type Air Spring
