Air Suspension PM/31062 6'' Diameter Air Bellow Norgren Air Spring 115MM Stroke
2B6×2T Detailed Datas
| Top plate screw (nut) teeth | 4pcs X M8 |
| Screw (nut) teeth of the bottom cover plate | 4pcs X M8 |
| Air hole/air inlet | G1/2 |
| Center distance between air inlet and nut | 22 mm |
| Top plate diameter (width | 153.5 mm |
| Diameter of bottom cover (width) | 153.5 mm |
| Stroke of Rubber Bellows | 80 mm-195 mm |
| Rubber Bellows' Diameter max at 7 bar | 75 mm |
| Bumper block/bumper block | No bumper |
| Belt loop/Belt loop/Girdle Hoop | one piece of belt loop/girdle hoop |
Vibration isolation - dynamic characteristic values
Design height H: recommended 160mm, minimum 150mm
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [kN] | 2.6 | 3.5 | 4.5 | 5.5 | 6.5 | 7.6 |
2.0
|
| Spring rate [N/cm] | 675 | 855 | 1035 | 1215 | 1395 | 1570 |
| Natural frequency [Hz] | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 |
Pneumatic application - static characteristic values
Force F [kN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H [mm] | 160 | 2.6 | 3.5 | 4.5 | 5.5 | 6.5 | 7.6 | 2.0 |
| 140 | 3.3 | 4.5 | 5.6 | 6.8 | 8.1 | 9.3 | 1.7 |
| 120 | 3.9 | 5.2 | 6.6 | 8.0 | 9.4 | 10.8 | 1.5 |
| 100 | 4.6 | 6.2 | 7.8 | 9.4 | 11.1 | 12.8 | 1.2
|
2B6×2T Replaces These Air Suspensions
- ContiTech: FD 76-14 1/2 M10
- ContiTech: FD 76-14 DS G1/2
- ContiTech: FD 76-14 DS G1/2 CR
- ContiTech: FD 76-14 DS CR G1/2
- ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
- ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
- Norgren: PM/31062 / PM 31062 / PM31062
- Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
- Dunlop FR: SP1482
- Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
- Double Convoluted Air Spring 2B180-115 D185
- Double Convoluted Air Spring 2B180-115 D185
- Replaces These Air Springs (Air Bellows)

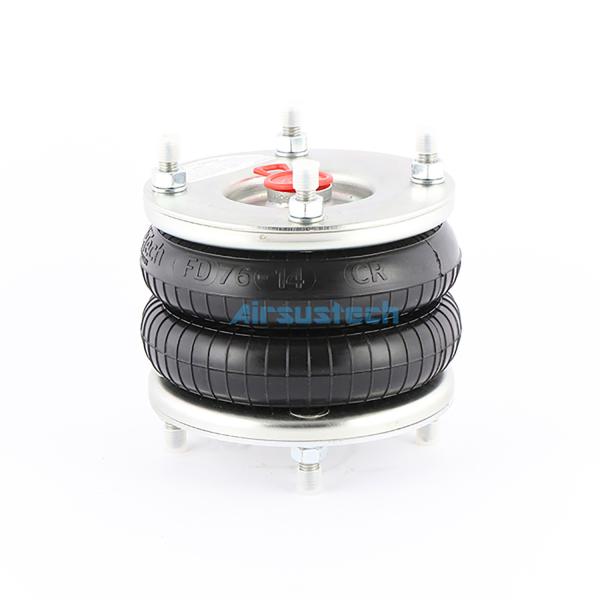

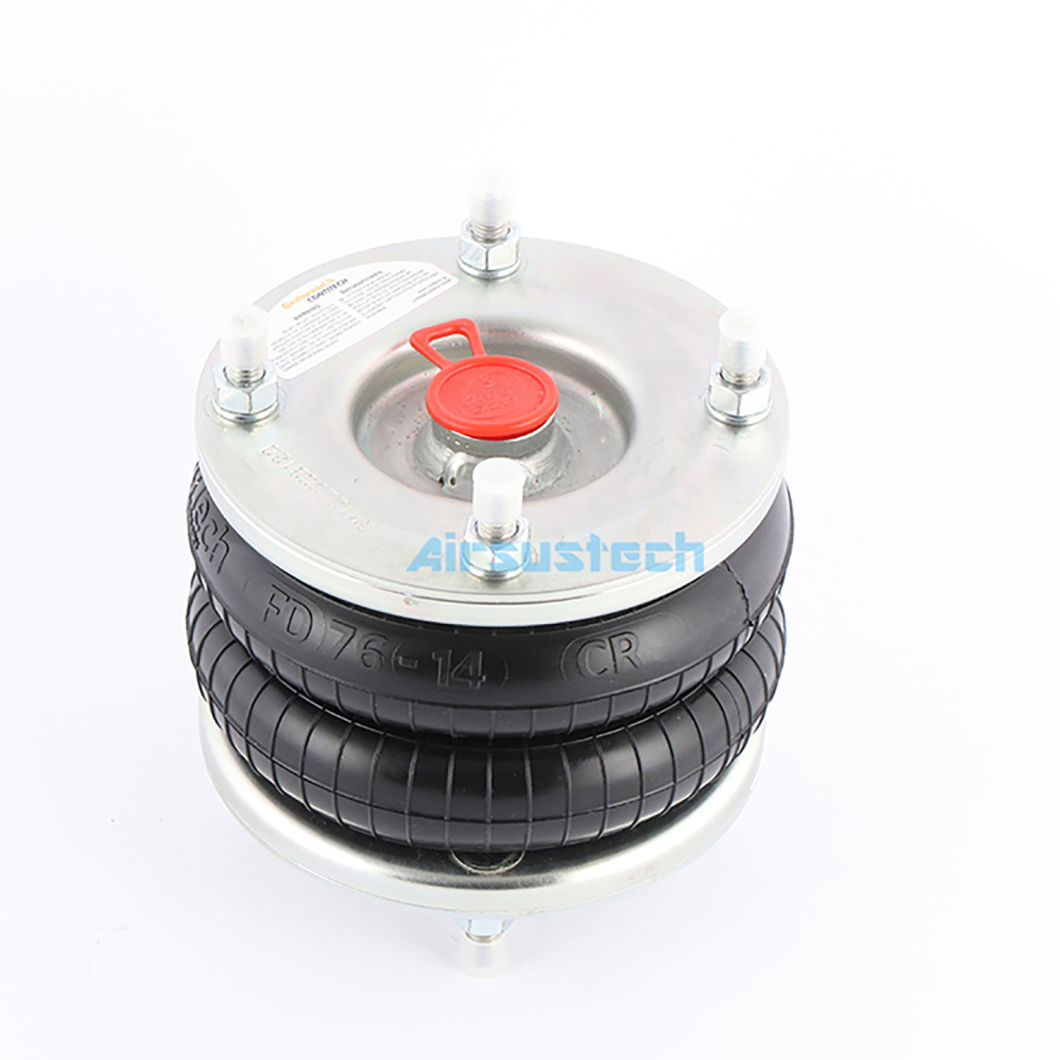

Product Images
