Port Size G1/2 Dunlop SP1540 Air Spring Suspension Firestone W01-R58-4060
The Introduction of Air Suspension
The 1B12×1T air shock suspension is a reliable, high-performance air spring widely used in industrial and automotive applications. It is designed to provide effective vibration isolation, load handling, and shock absorption with its durable, double convoluted structure. Constructed with high-quality rubber, the 1B12×1T air bag features an airtight inner layer and an oil-resistant outer layer, offering excellent wear resistance and long-lasting performance. Commonly found in vehicles like trucks, trailers, and specialized machinery, the SP1540 pneumatic air rubber bellow enhances stability and reduces vibration, ensuring smoother operations. Its superior elasticity and load capacity make it well-suited for heavy-duty environments. Additionally, its compatibility with similar models makes it a practical replacement option in various systems.
Other OEM Number
Fire-stone: 12 X 1 W01-R58-4060
Fire-stone: 12 X 1 W01R584060
Fire-stone: 12 X 1 W01 R58 4060
Fire-stone Style: 12" x1 / 12"x1 / 12x1
Dunlop FR: 12"x1 DUNLOP SP 1640
Dunlop UK (Pneuride): PNP 30552 01 20 /PNP305520120
Norgren: M/31121 / M 31121 / M31121
Nominal (inch) x convolutions: 12" x1 / 12"x1 / 12x1
Parker: 12"x1 9109044
ContiTech Part Number: FS 412-10 DS / FS210-10DS / FS21010DS
ContiTech skin bagPart Number: FS 412-10 / FS412-10 / FS41210
ContiTech Part Number: FS 412-10 DS G1/2
1B12×1T Air Spring Technical Datas
Outer Diameter (OD): 300 mm
Inner Diameter (ID): 260 mm
Height/Thickness: 232 mm
Threaded Holes: 4×M10 (evenly distributed)
Length/Interface: 6.1/2 inches (165.1 mm)
Key Roles in Application
1. Vibration Damping:
Minimizes vibrations generated during high-speed cutting operations, ensuring machining accuracy and surface finish quality.
Reduces resonance effects between the machine structure and external disturbances (e.g., floor vibrations).
2. Load Compensation:
Automatically adjusts internal pressure to compensate for variable tooling loads, maintaining consistent machine bed alignment.
Supports dynamic weight shifts during multi-axis movements (e.g., spindle head repositioning).
3. Advantages of SP1540 in This Application:
- High Load Capacity: Designed to handle static and dynamic loads up to 4,000 N, suitable for medium-to-heavy CNC machines.
- Compact Design: Fits into space-constrained machine bases without interfering with operational components.
- Precision Pressure Control: Integrated regulators enable real-time stiffness adjustments for optimal process stability.
- Durability: Corrosion-resistant materials and reinforced bellows ensure reliability in coolant-exposed environments.

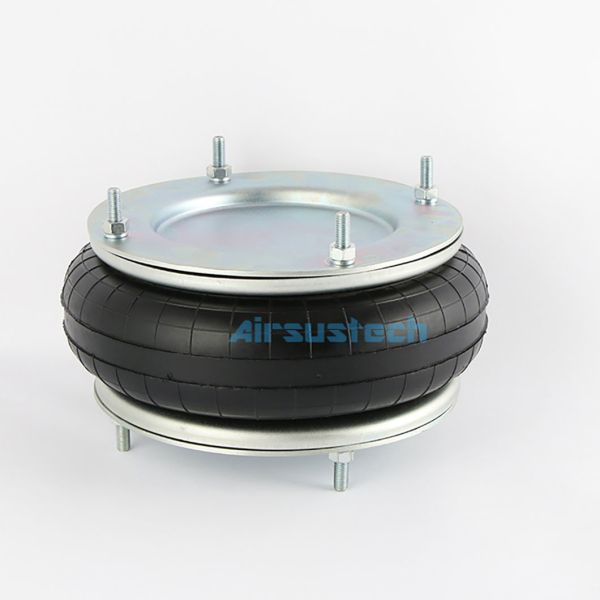

The Related Picture of 12''×1 Air Spring
