Yokohama S-200-3R Hydraulic Punch Press Airbag Triple Type Pneumatic Air Spring
F-200-3 Punch Air Spring Details
Natural Height: 152 mm
Maximum Height: 232 mm
Minimum Height: 82 mm
Max. Stroke: 150 mm
Max. Outside Diameter: 260 mm
Effective Area @ 0.49 MPa at Standar Height: 315
Volume @ 0.49 MPa at Standar Height: 5.2 L
Load @ 0.49 MPa at Standar Height: 15.4 kN
Dynamic Spring Constant @ 0.49 MPa at Standar Height: 235 n/mm
Natural Vibration Frequency @ 0.49 MPa at Standar Height: 2.0 Hz
Usable Internal Pressure: 0.88 MPa
Internal Pressure Failure: 2.9-3.9 MPa
Other OEM Number
GUOMAT NO.: F-200-3
YOKOHAMA: S-200-3R
YOKOHAMA: S2003R
YOKOHAMA: S 200 3R
Scope of Application
Presses, punching machines, mechanical punching machines, pneumatic punching machines, hydraulic punching machines, high-speed mechanical punching machines, high-frequency punching machines, CNC punching machines, ordinary mechanical punching machines, manual punching machines, spiral punching machines, rack punching machines, connecting rod punching machines, cam punching machines, papermaking equipment, papermaking production lines, paper equipment, etc.
GUOMAT Punch Air Bags Cross YOKOHAMA Air Springs
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
| F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
| F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
| F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
| F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
| F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
| F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
| F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
| F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
| F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
| F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
| F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
| F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
| F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
| F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
| F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
| F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
| F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
| F-400-4 | S-400-4R | S 400 4R | F-90-3 | S-90-3R | S 90 3R |
| F-400-5 | S-400-5R | S 400 5R | F-90-2 | S-90-2R | S 90 2R |
| F-350-1 | S-350-1R | S 350 1R | F-90-1 | S-90-1R | S 90 1R |
| F-350-2 | S-350-2R | S 350 2R | F-300-1 | S-300-1R | S 300 1R |
| F-350-3 | S-350-3R | S 350 3R | F-300-2 | S-300-2R | S 300 2R |
| F-350-4 | S-350-4R | S 350 4R | F-300-3 | S-300-3R | S 300 3R |
| | | | F-300-4 | S-300-4R | S 300 4R |

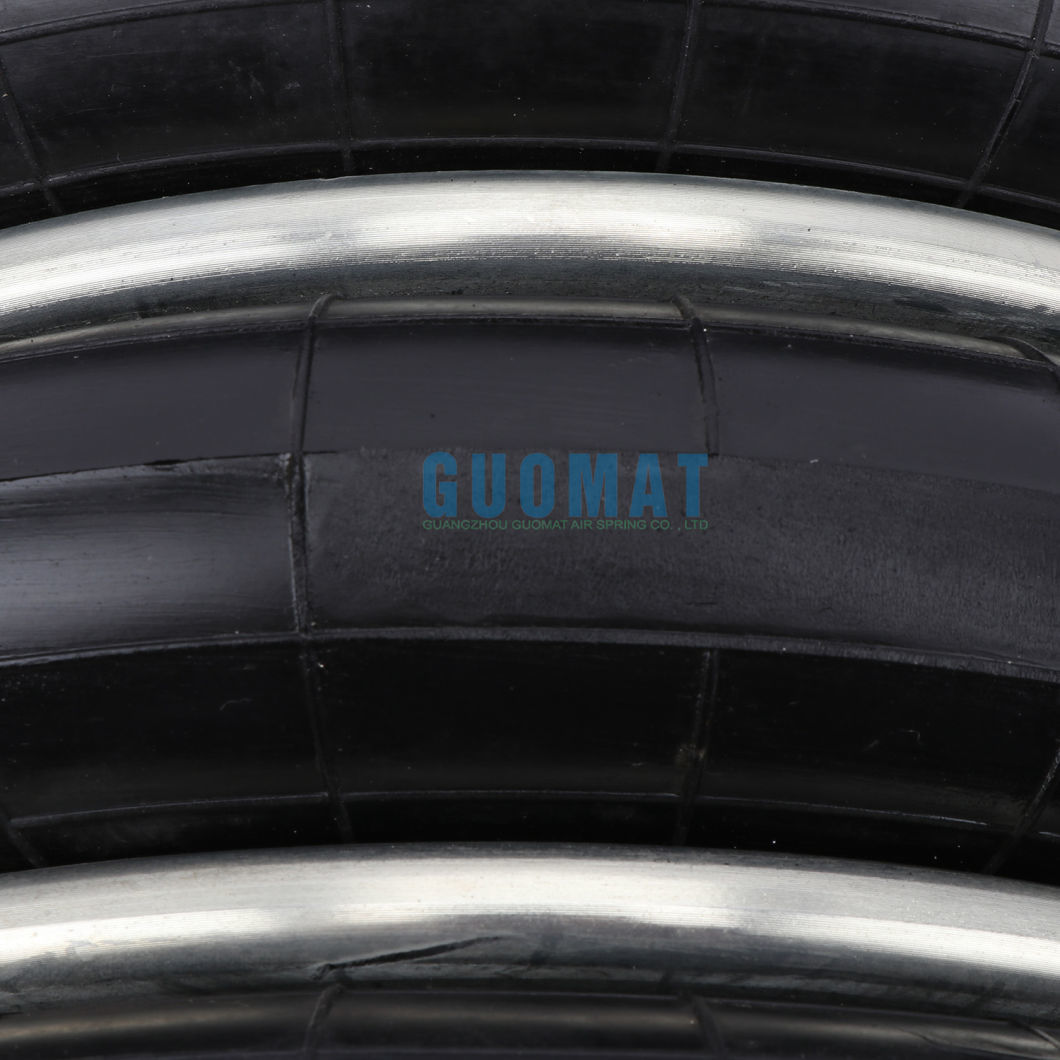

F-200-3 Real Pictures
