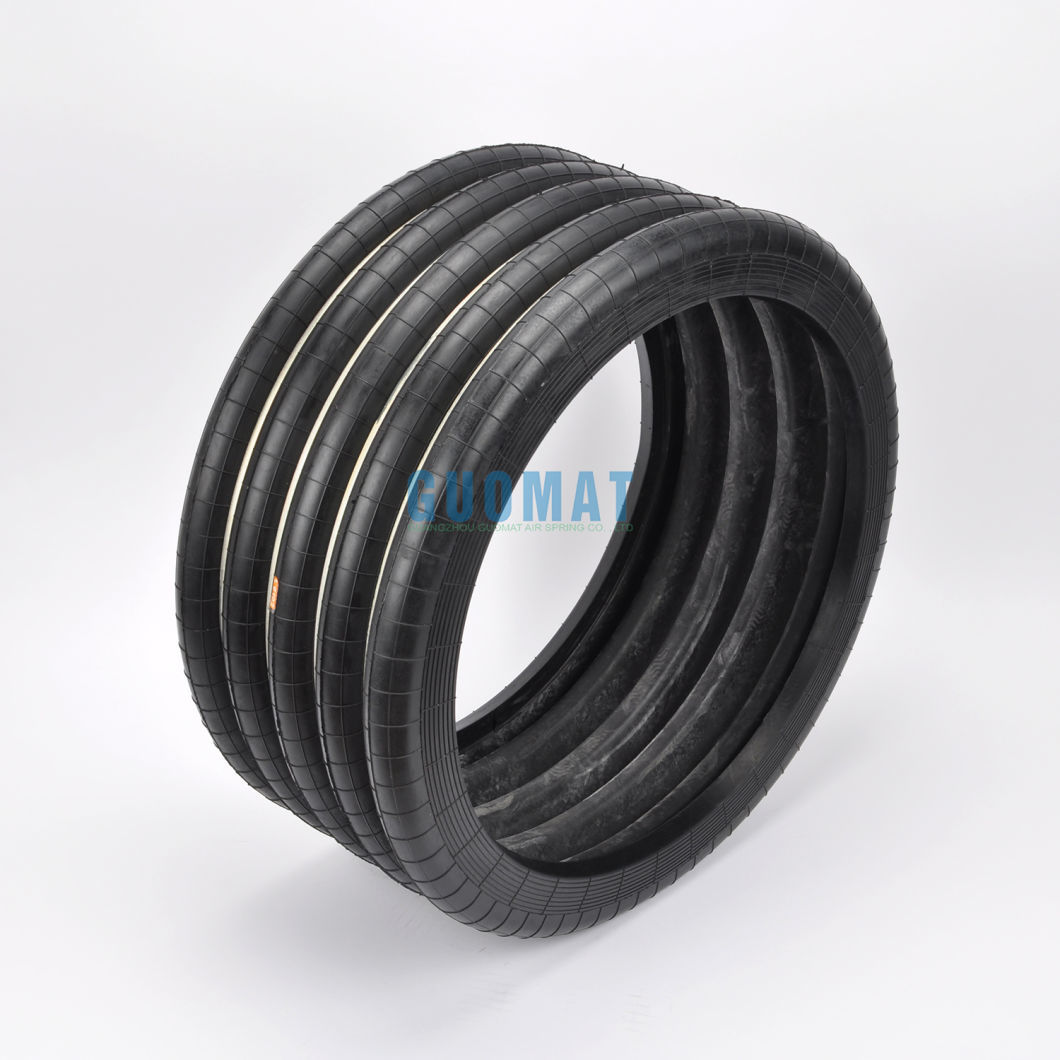

S-600-5 Yokohama Triple Convoluted Rubber Bellows Only With Hoop for Punch

Name: S6005 Yokohama Triple Convoluted Rubber Bellows Only With Hoop for Punch
Brand: GUOMAT
Price: 1 USD

China S-600-5 Yokohama Triple Convoluted Rubber Bellows Only With Hoop for Punch wholesale

Brand Name : GUOMAT

Model Number : F-600-5

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Structure : Quintuple Convoluted

Size : Standard

Application : Industrial Punching Machine

Trademark : GUOMAT

Design Height : 276MM

Full Stroke : 300MM

Function : Reduce Shock

Contact Now

S-600-5 Yokohama Triple Convoluted Rubber Bellows Only With Hoop for Punch

Product Details

GUOMAT NO.	Reference NO.	Height H(mm)			Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area(cm²)	Volume(L)
GUOMAT NO.	Reference NO.	Design Height (mm)	Max Height (mm)	Min Height(mm)	Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area(cm²)	Volume(L)
F-600-5	S-600-5	276	456	156	±113	660	2830	76.6
F-600-4	S-600-4	218	363	123	±90	660	2830	59.9
F-600-3	S-600-3	160	270	90	±68	660	2830	43.2
F-600-2	S-600-2	102	172	57	±45	660	2830	26.3
F-600-1	S-600-1	72	122	40	±30	700	2830	19.0

We Also Have Other Type Air Springs

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R

About Air Spring

1) Stud - Manufactured as a permanent part of the bead plate assembly for maximum strength and durability. Used to attach the spring to the vehicle's suspension.

2) Combo Stud - Serves the dual purpose of mounting the spring to the suspension and providing an entrance for air.

3) Blind Nut - Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.

4) Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the bellows.

5) Bead Plate - Crimped onto the bellows at the factory for a more durable design and maximum 2 Year / 200,000 mile warranty.

Feedback

We will strive for excellent customer service on every order. Once you have received your product and you are satisfied with it, please leave positive feedback and we will do the same within minutes. Please do not leave Neutral or Negative without contacting us first. We will do our best to fix the problem.

Product Pictures
