Rubber Bellow Guomat F-450-4 Cross Yokohama S-450-4 Electric Punch Air Spring
Product Description
Punch air springs are widely used in stamping and forming of electronics, communications, computers, household appliances, furniture, transportation, (automobiles, motorcycles, bicycles) hardware parts, etc. They are widely used in manufacturing industries such as precision machinery, instruments, computers, cameras, automobiles, motorcycles, computers, equipment, and household appliances.
Technical Data Of F-450-4
| GUOMAT Number | F-450-5 | F-450-4 | F-450-3 | F-450-2 | F-450-1 |
| Reference Number | S-450-5 | S-450-4 | S-450-3 | S-450-2 | S-450-1 |
| Design Height (mm) | 276 | 218 | 160 | 102 | 72 |
| Max Height (mm) | 456 | 363 | 270 | 172 | 117 |
| Min Height (mm) | 156 | 123 | 90 | 57 | 40 |
| Common Maximum Travel (mm) | ±113 | ±90 | ±68 | ±45 | ±30 |
| Compression Max Outside Diameter (mm) | 510 | 510 | 510 | 510 | 510 |
| Effective Area (cm2) | 1590 | 1590 | 1590 | 1590 | 1590 |
| Volume(L) | 43.6 | 33.9 | 24.3 | 14.7 | 11.9 |
| Load (KN) | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 |
| Dynamic Spring Constant (n/mm) | 588 | 755 | 1040 | 1687 | 2295 |
| Natural Vibration Frequency (Hz) | 1.4 | 1.6 | 1.8 | 2.3 | 2.7 |
| Maximum Internal Pressure (MPa) | 0.69 | 0.69 | 0.69 | 0.69 | 0.69 |
| Internal Pressure Failure(MPa) | 3.9-4.9 | 3.9-4.9 | 3.9-4.9 | 3.9-4.9 | 2.9-3.9 |
GUOMAT Also Provide Other Models
| S-600-5 | S-550-3 | S-500-5 | S-450-5 | S-400-5 | S-350-4 | S-300-4 | S-240-4 |
| S-600-4 | S-550-2 | S-500-4 | S-450-4 | S-400-4 | S-350-3 | S-300-3 | S-240-3 |
| S-600-3 | | S-500-3 | S-450-3 | S-400-3 | S-350-2 | S-300-2 | S-240-2 |
| S-600-2 | | S-500-2 | S-450-2 | S-400-2 | S-350-1 | S-300-1 | S-240-1 |
| S-600-1 | | | S-450-1 | | | | |
| S-220-4 | S-160-4 | S-200-4 | S-120-4 | S-100-4 | S-90-3 | S-60-4 | S-50-3 |
| S-220-3 | S-160-3 | S-200-3 | S-120-3 | S-100-3 | | S-60-3 | S-50-2 |
| S-220-2 | S-160-2 | S-200-2 | S-120-2 | S-100-2 | | S-60-2 | |
| | S-160-1 | | | | | | |

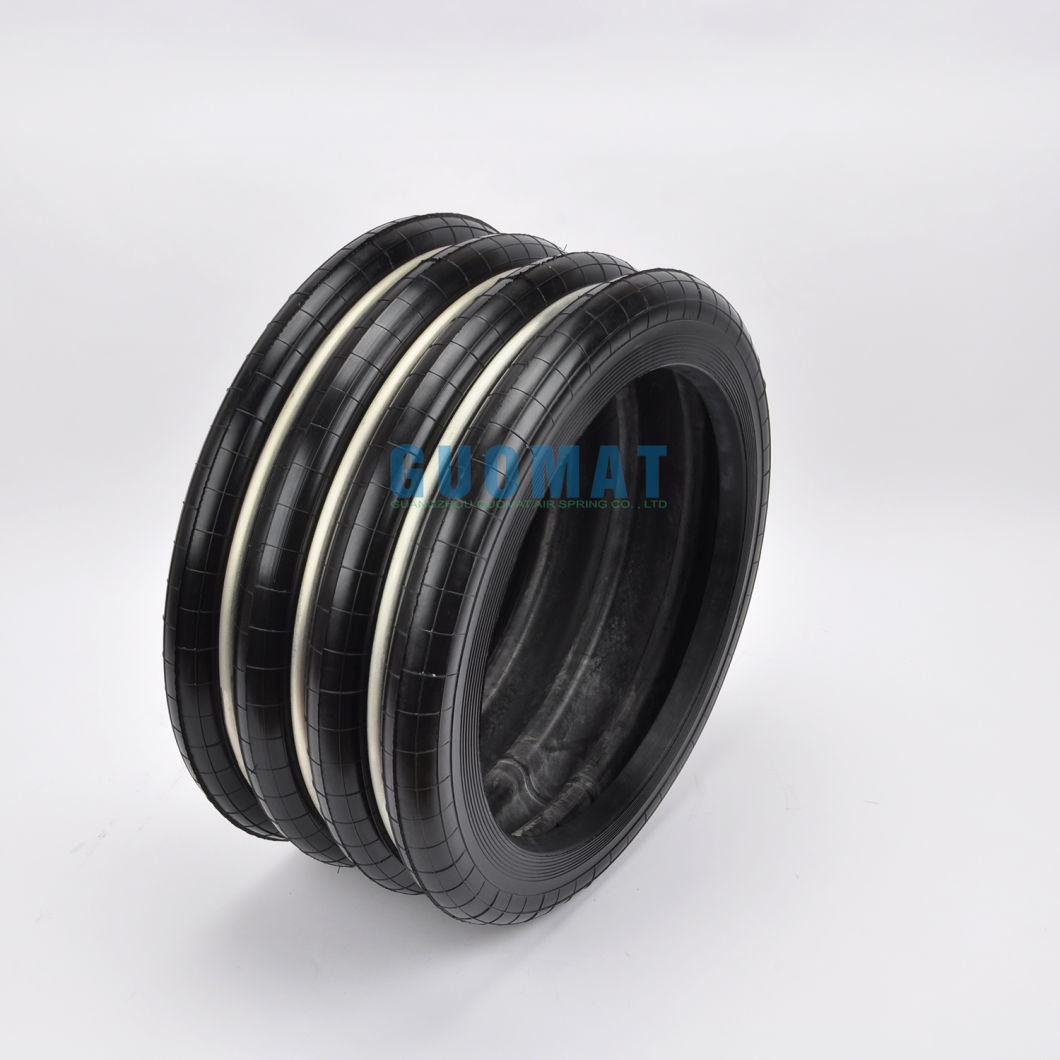

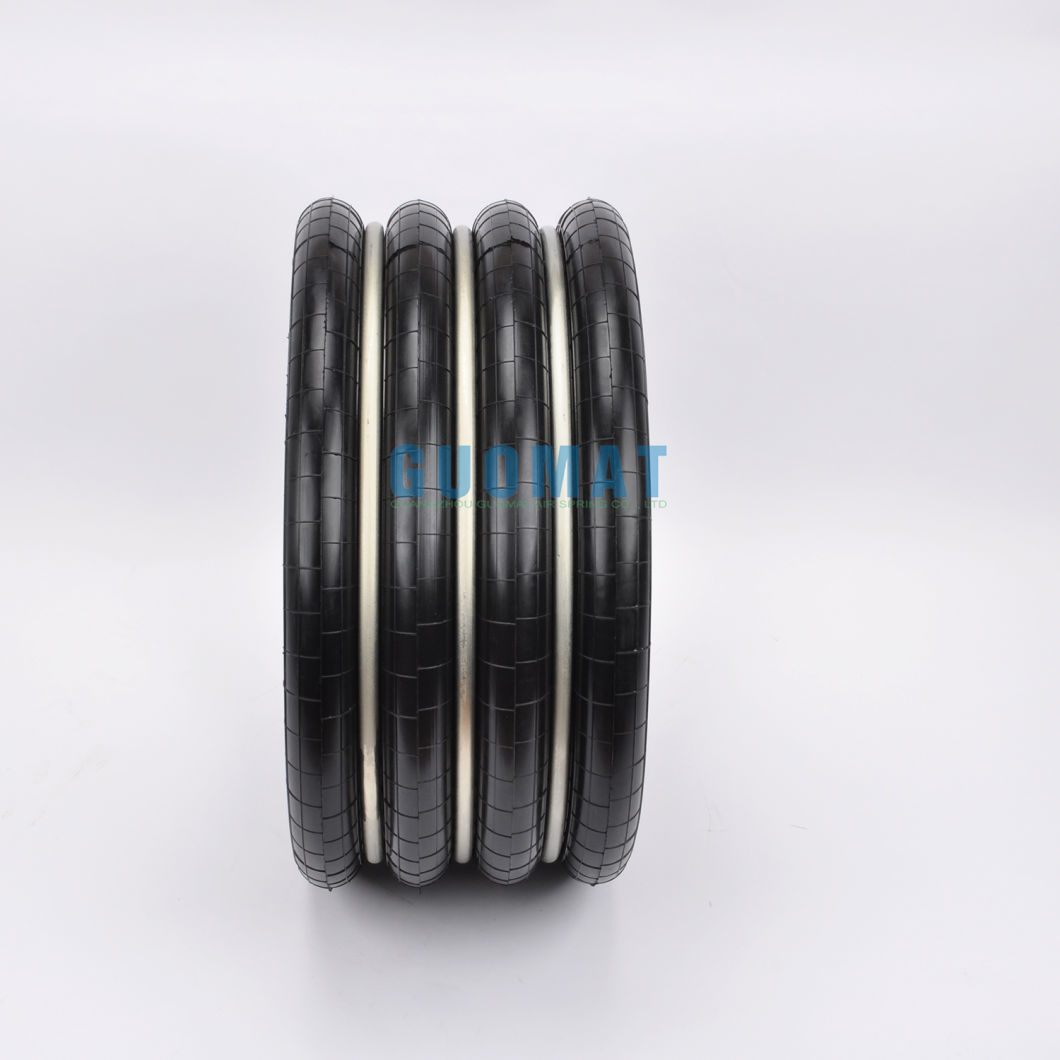

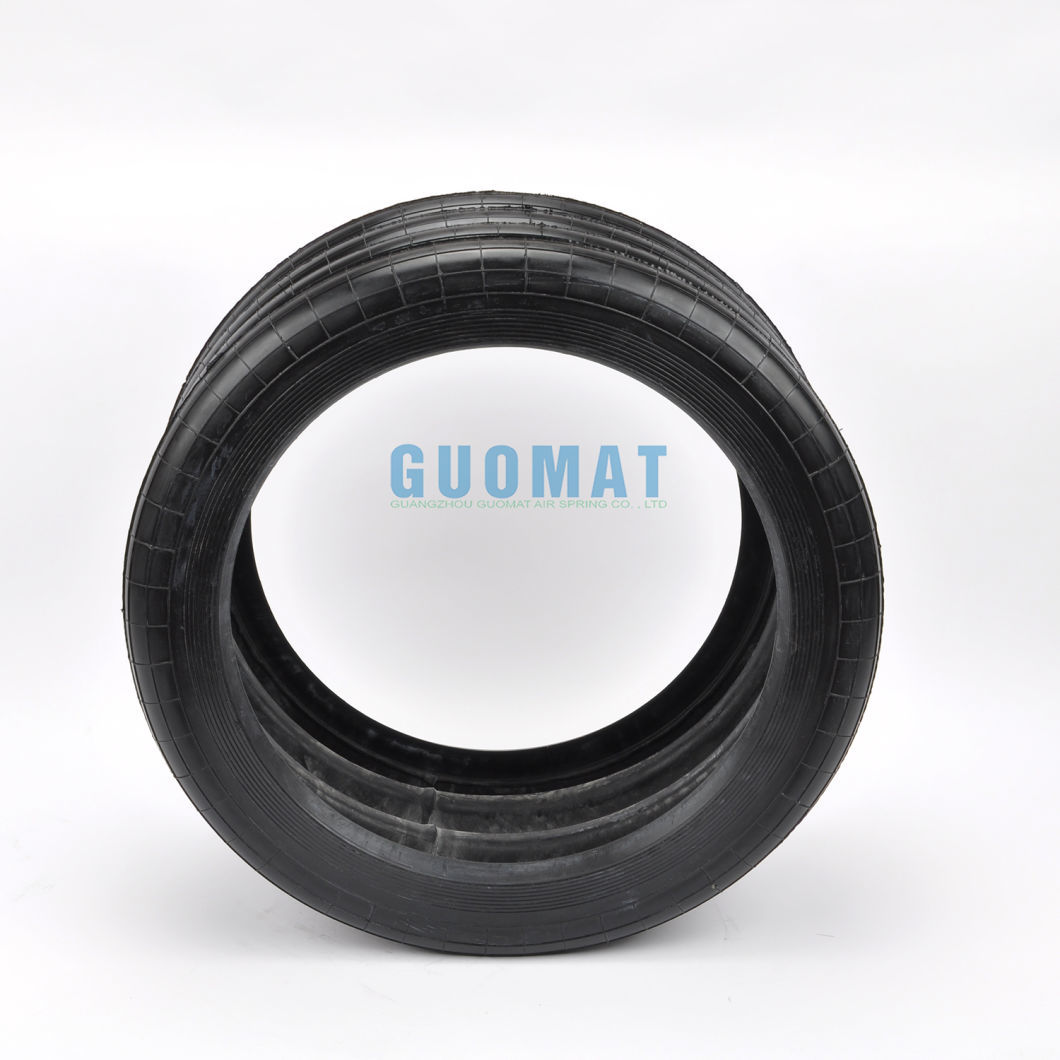

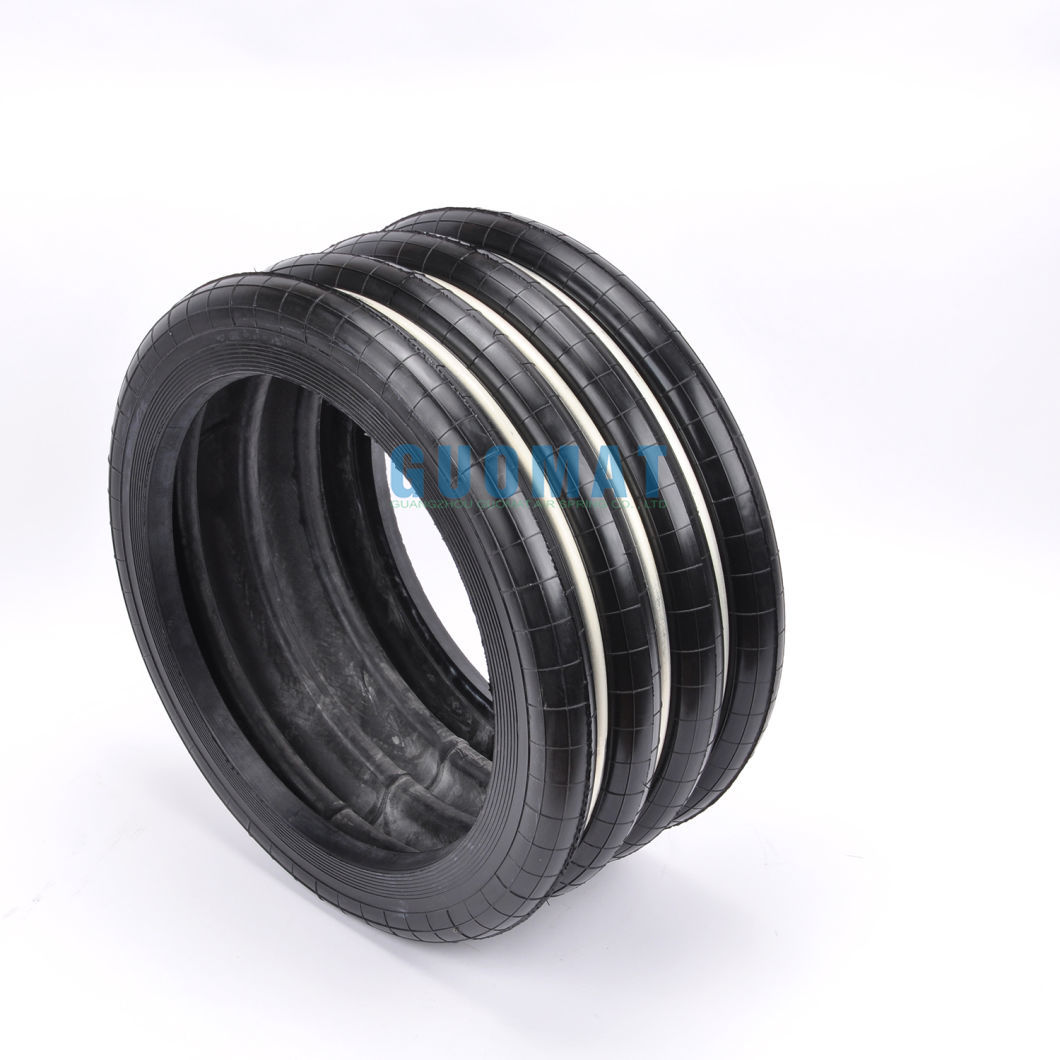

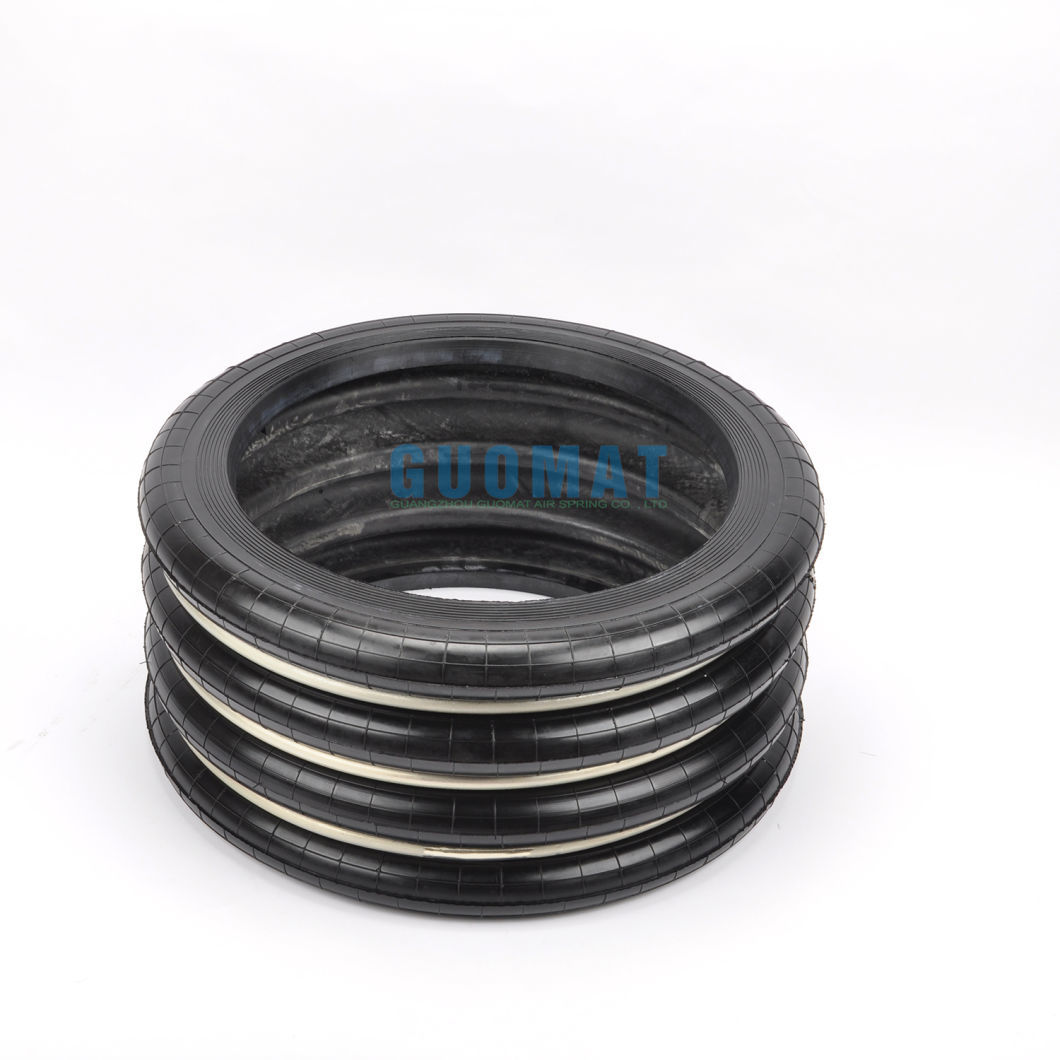

Product Images
