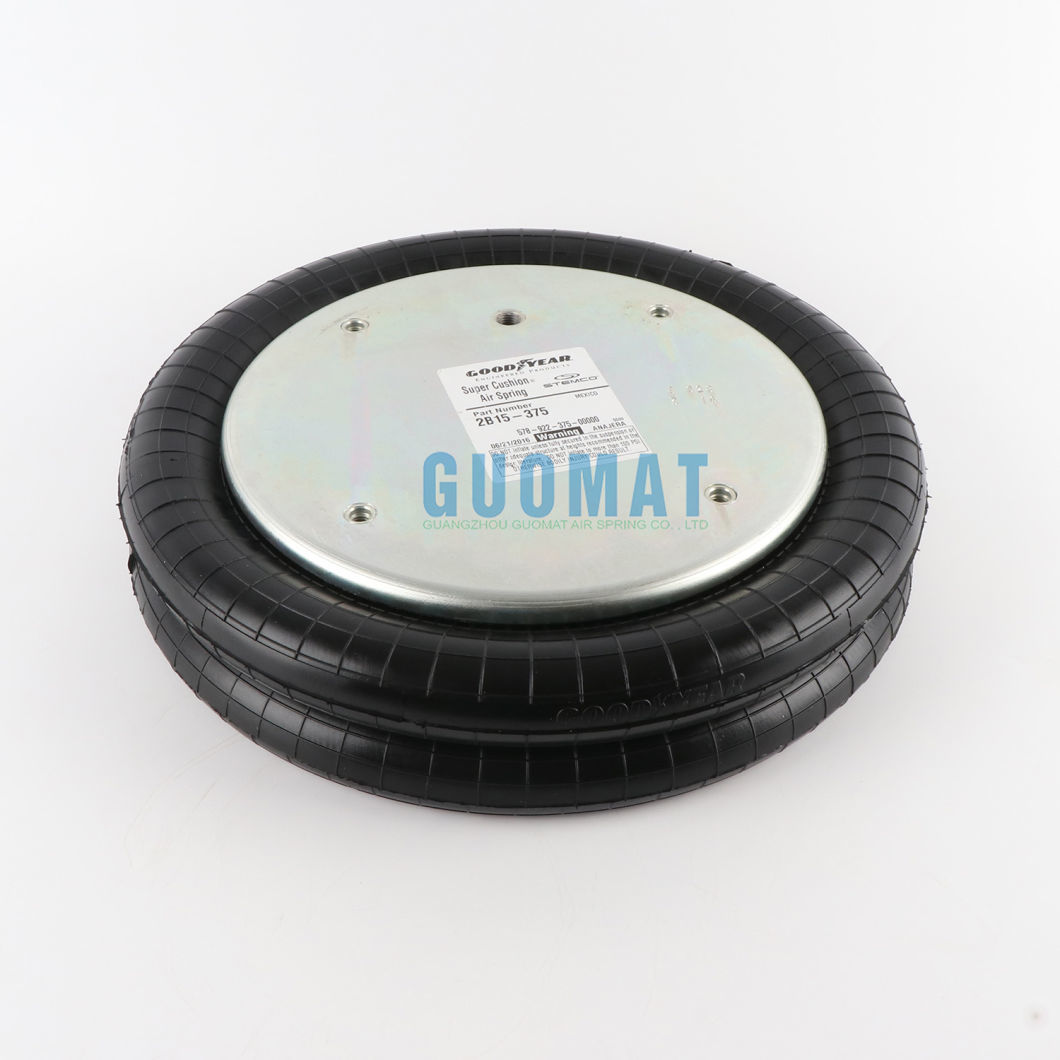

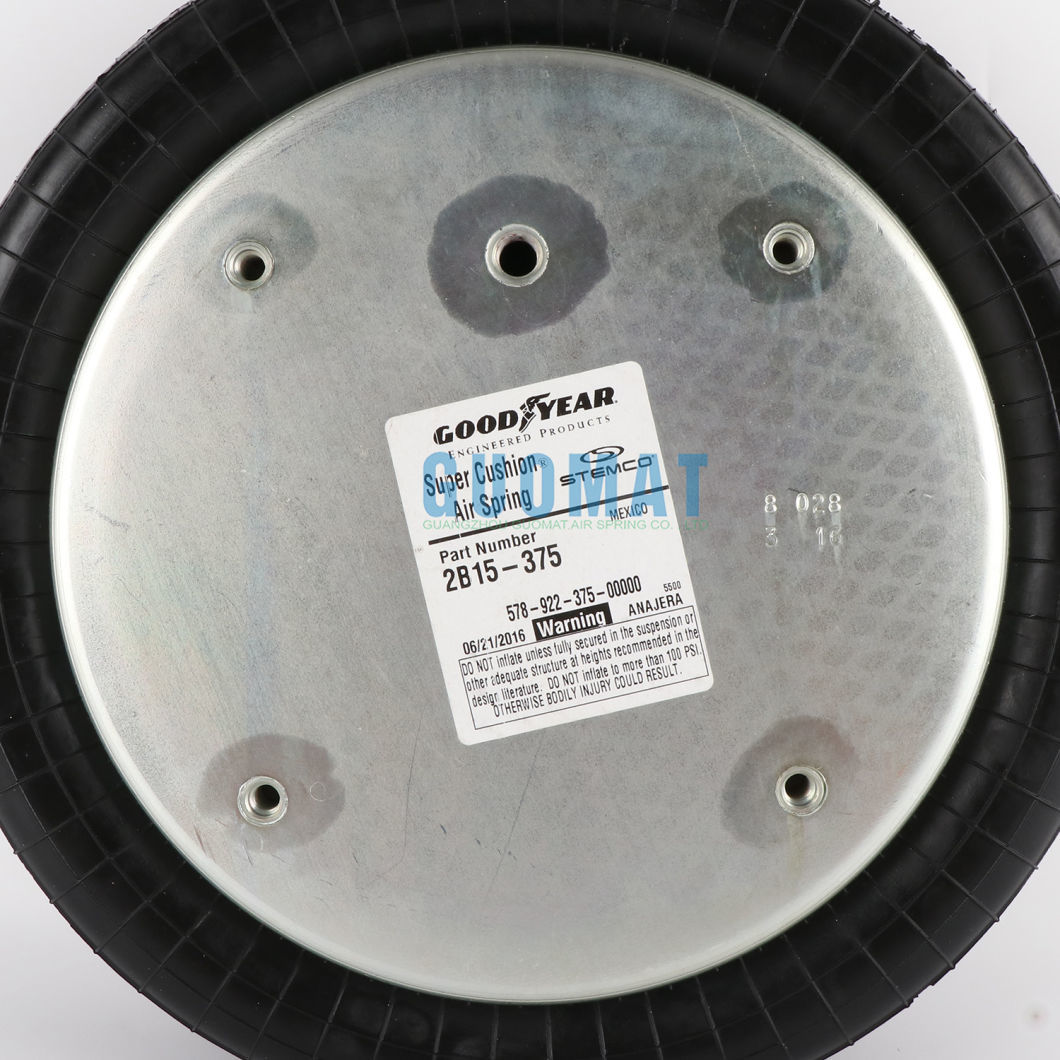

Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator
Cross OEM Number
Goodyear Parts NO.: 2B14-468
Goodyear Parts NO.: 2B14 468
Goodyear Parts NO.: 2B14468
Goodyear Parts NO.: 2B14-362
Goodyear Parts NO.: 2B14 362
Goodyear Parts NO.: 2B14362
Goodyear Parts NO.: 2B14-450
Goodyear Parts NO.: 2B14 450
Goodyear Parts NO.: 2B14450
Goodyear Parts NO.: 2B15-375
Goodyear Parts NO.: 2B15 375
Goodyear Parts NO.: 2B15375
Fire stone Air Spring Parts NO.: W01-358-6800
Fire stone Air Spring Parts NO.:: W01 358 6800
Fire stone Air Spring Parts NO.:: W013586800
Fire stone Air Spring: 21D-2
Fire stone Air Spring: 21-2
Fire stone Air Spring: 21 2
ContiTech Parts NO.: FD530-30 518 1/4 NPT
ContiTech Parts NO.: FD530-30518 1/4 NPT
Product Information
| Nut / Blind Nut |
| Top Cover Plate Screw (Nut) Tooth | 4 pcs X 3/8-16UNC |
| Screw Center Distance of Top Cover Plate | 159 mm |
| Bottom Cover Plate Screw (Nut) Tooth | 4 pcs X 3/8-16UNC |
| Screw Center Distance of Bottom Cover Plate | 159 mm |
| Gas Hole / Air inlet / Air Fitting |
| Gas Hole / Air inlet | 1/4NPT |
| Center Distance Between Nut and Air inlet | 79.5 mm |
| Cover Plate |
| Top Cover Plate Diameter (Width) | 287 mm |
| Bottom Cover Plate Diameter (Width) | 287 mm |
| Rubber Bellows |
| Rubber Bellows MAX Diameter | 401 mm |
| Compressed Height | 76.2 mm |
| Maximum Height | 351 mm |
| Working Stroke | 254mm |
Product Technical Data
Vibration isolation - dynamic characteristics values
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 |
| Force (Load) [lbs] | 3740 | 5610 | 7480 | 9350 | 11220 |
| Spring Rate [lbs/in] | 987 | 1388 | 1811 | 2165 | 2628 |
| Natural Frequency [Hz] | 1.6 | 1.6 | 1.6 | 1.5 | 1.5 |
Pneumatic application - static characteristics values
Force F [lbs]
| Pressure p | [psi] | 20 | 40 | 60 | 80 | 100 | 120 |
| Height H [in] | 11 | 1660 | 3330 | 4990 | 6650 | 8320 | 9980 |
| 9 | 2100 | 4210 | 6310 | 8410 | 10520 | 12620 |
| 7 | 2440 | 4880 | 7320 | 9760 | 12200 | 14640 |
| 5 | 2650 | 5310 | 7960 | 10620 | 13270 | 15920 |
The Must be Enough Clearance Around The Air Bellow
- The full surface of the metal parts is to be used to bear the forces.
- Air bellows must be equipped with lateral guides.
- Deflate the air bellows fully before removing.
- Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and weldin sparks.
- Should the air bellow be subjected to special media in an application, ask Precision Engineering for further information, specifying the medium, temperature and concentration.
