Pneumatic Actuator Flexible No. 578-92-3-202 Firestone Air Spring W01-M58-6183

Name: Pneumatic Actuator Flexible No 578923202 Firestone Air Spring W01M586183
Brand: GUOMAT
Price: 1 USD

China Pneumatic Actuator Flexible No. 578-92-3-202 Firestone Air Spring W01-M58-6183 wholesale

Brand Name : GUOMAT

Model Number : 2B6183

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Bellows Type : Double Convoluted

Cross Number : FD 200-25 CI G 1/4

Working Stroke : 254MM

Air Hole : 1/4BSP

Nuts Type : 3/8-16 Blind Nuts

After-sales Service : 12 Months

Fitment Type : Direct Replacement

Contact Now

Pneumatic Actuator Flexible No. 578-92-3-202 Firestone Air Spring W01-M58-6183

Design Specifications

AIRSTROKE ACTUATOR
Maximum Diameter @ 7 Bar (mm)	264
Maximum Height (mm)	76
Maximum Stroke (mm)	203
Minimum Usable Height (mm)	279
Force in kN @ 5 Bar at Stroke of 25 mm	16.1
Force in kN @ 5 Bar at Stroke of 50% of Max Stroke	12.4
Force in kN @ 5 Bar at Stroke of Maximum Stroke	8.9
Material	2-Ply Standard Cord
END CLOSURE DETAILS
Bead plate Type	3
Dim. A (Blind Nut Centers) (mm)	89
Dim. B (mm)	73
AIRMOUNT ISOLATOR
Design Height (mm)	254
Load (at Design Height) at: 3 Bar (kN)	6.2
Load (at Design Height) at: 5 Bar (kN)	10.9
Load (at Design Height) at: 7 Bar (kN)	15.6
Natural Frequency (@5 Bar)(fn(Hz)	1.6
% of Isolation at Forced Frequency 7 Hz	93.9
% of Isolation at Forced Frequency 13 Hz	98.5
% of Isolation at Forced Frequency 25 Hz	99.6

Product Technical Parameters

Pneumatic application - static characteristic values Force F [kN]
Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H [mm]	230	4.21	5.7	7.2	8.73	10.3	12	6.4
	200	5.8	7.78	9.74	11.7	13.8	15.9	5.7
	170	6.96	9.3	11.7	14.1	16.5	19	5
	140	7.86	10.5	13.2	15.8	18.5	21.3	4.1
	110	8.52	11.4	14.2	17.1	19.9	22.9	3.4
	80	9.07	12	15	18	21	24.1	2.5

Refer Number

ORDER NO: 500178-WH

WUHLERMANN NO: 2RC-225-15C

OEM NODAIMLER CHRYSLER: A 946 328 24 01

JOST: JAS 30 107 024 01
JOST: 3010702401
FIRESTONE: W01 M58 6183
CONTITECH: FD 200-25 1/4 M8

Rubber Damage from Chemicals

Grease and oil are common examples that can cause this condition after
prolonged contact with the rubber flexible member.
Possible causes:
Excessive oil in the air supply.
Excessive greasing of universal joints.
Excessive greasing of the fifth wheel.
Leaking seals in suspension components.
Use of petroleum based cleaners on the air spring (use only soap and water for cleaning)

Other OEM Numbers

57892227000000	20094503	Y	2B9-270	2B9-270
2B9-270	20113233	N	2B9-270 Bellows Air Spring	2B9-270 Bellows Air Spring
57892227100000	20094504	Y	2B9-271	2B9-271
57892227200000	20094505	Y	2B9-272	2B9-272
57892227300000	20468329	Y	2B9-273	2B9-273
57892227300019	20106773	Y	ENIDINE YI-2B9-273	ENIDINE YI-2B9-273
57892227430000	20113331	Y	2B9-274	2B9-274
57892227500000	20112684	Y	2B9-275	2B9-275
57892227500004	20808326	Y	2B9-275 Bellows Air Spring	2B9-275 Bellows Air Spring
57892227500019	20112685	Y	ENIDINE YI-2B9-275	ENIDINE YI-2B9-275
57892227700000	20116850	Y	2B9-277	2B9-277
2B9-277	20116851	N	2B9-277	2B9-277
57892227800000	20136848	Y	2B9-278	2B9-278
2B9-278	20136849	N	2B9-278	2B9-278
57892227900000	20139902	Y	2B9-279	2B9-279
57892228000000	20149466	Y	2B9-280	2B9-280
2B9-280	20149467	N	2B9-280 Bellows Air Spring	2B9-280 Bellows Air Spring
57892228100000	20149460	Y	2B9-281	2B9-281
2B9-281	20149461	N	2B9-281	2B9-281
57892228300000	20149464	Y	2B9-283	2B9-283
57892228300004	20149465	Y	2B9-283	2B9-283
57892228600000	20168826	Y	2B9-286	2B9-286
2B9-286	20168880	N	2B9-286	2B9-286
57892228800000	20174047	Y	2B9-288	2B9-288
2B9-288	20174048	N	2B9-288 Bellows Air Spring	2B9-288 Bellows Air Spring
57892229000000	20177683	Y	2B9-290	2B9-290
2B9-290	20177686	N	2B9-290	2B9-290
57892229100000	20190132	Y	2B9-291	2B9-291
2B9-291	20190124	N	2B9-291	2B9-291
57892229500000	20258853	Y	2B9-295	2B9-295
57892229500004	20258854	Y	2B9-295	2B9-295
57892229600000	20268043	Y	2B9-296	2B9-296
2B9-296	20268044	N	2B9-296 Bellows Air Spring	2B9-296 Bellows Air Spring
57892229700000	20264980	Y	2B9-297	2B9-297
2B9-297	20264983	N	2B9-297	2B9-297
57892229800000	20264762	Y	2B9-298	2B9-298
2B9-298	20264763	N	2B9-298	2B9-298

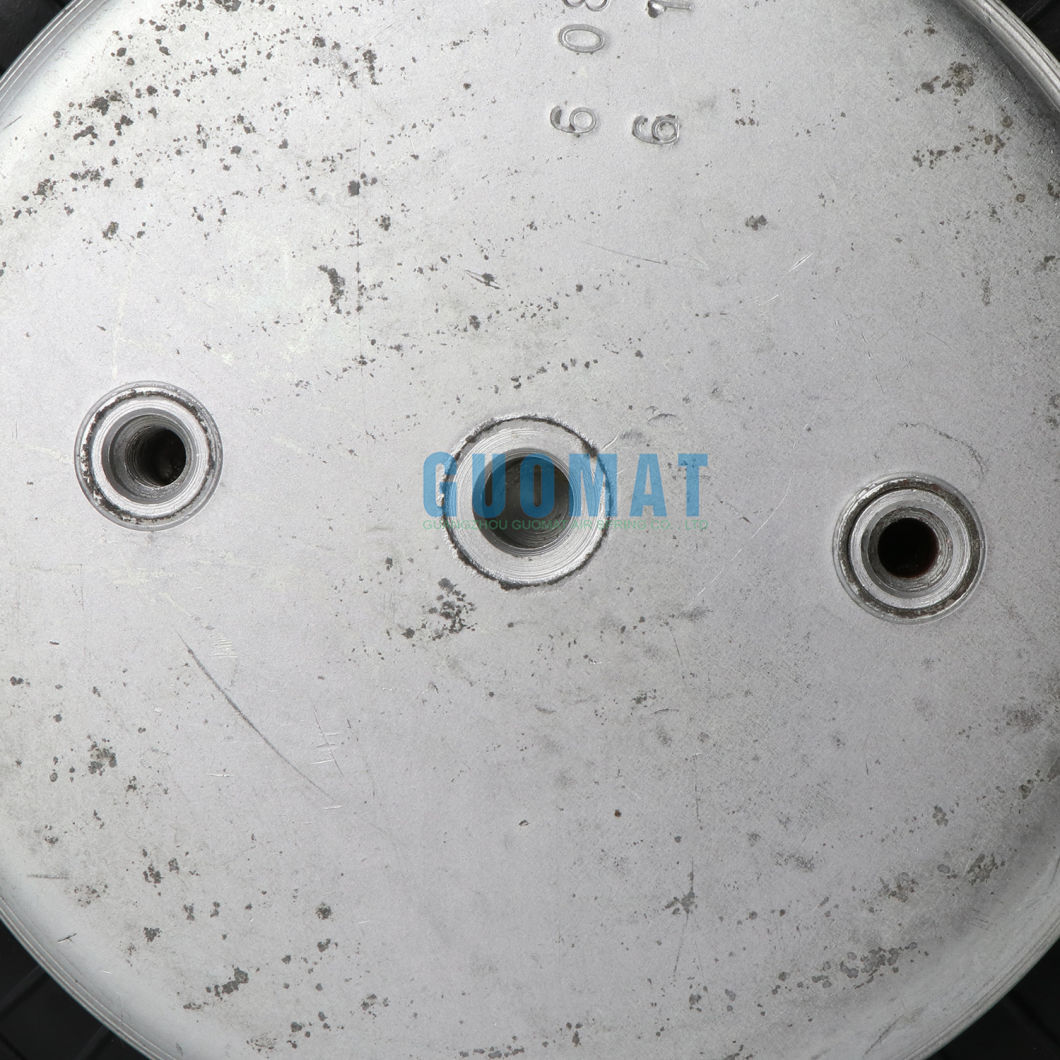

The Detailed Photos

Pneumatic Actuator Flexible No. 578-92-3-202 Firestone Air Spring W01-M58-6183
