Guomat F-300-3 Industrial Air Spring Cross Yokohama S-300-3r Air Rubber Bellow
F-300-3 Specifications
| Model Size | Height H(mm) | Common Maximum Travel(mm) | Compression Max. Outside Diameter (mm) | Standard height, approximate value at 0.49MPA internal pressure | Maximum Internal Pressure (MPA) | Internal Pressure Failure(MPA) |
| Design Height | Max. Height | Min Height | Effective Area(cm2) | Volume(L) | Load(KN) | Dynamic Spring Constant(n/mm) | Natural Vibration Frequency(Hz) |
| S-300-4R | 206 | 326 | 111 | ±80 | 360 | 710 | 15.5 | 34.7 | 324 | 1.5 | 0.88 | 3.9-4.9 |
| S-300-3R | 152 | 242 | 82 | ±60 | 360 | 710 | 11.2 | 34.7 | 490 | 1.9 | 0.88 | 3.9-4.9 |
| S-300-2R | 98 | 158 | 53 | ±40 | 360 | 710 |
7.4 | 34.7 | 745 | 2.3 | 0.88 | 3.9-4.9 |
| S-300-1R | 72 | 117 | 40 | ±30 | 400 | 710 | 5.6 | 34.7 | 1108 | 2.8 | 0.69 | 2.9-3.9 |
OEM Number
AIRSUSTECH Part No.: F-300-3
YOKOHAMA S-300-3R
YOKOHAMA S 300 3R
YOKOHAMA S3003R
Other Types
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
| F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
| F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
| F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
| F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
| F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
| F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
| F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
| F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
| F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
| F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
| F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
| F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
| F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
| F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
| F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
| F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
| F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
| F-400-4 | S-400-4R | S 400 4R | F-90-3 | S-90-3R | S 90 3R |
| F-400-5 | S-400-5R | S 400 5R | F-90-2 | S-90-2R | S 90 2R |
| F-350-1 | S-350-1R | S 350 1R | F-90-1 | S-90-1R | S 90 1R |
| F-350-2 | S-350-2R | S 350 2R | F-300-1 | S-300-1R | S 300 1R |
| F-350-3 | S-350-3R | S 350 3R | F-300-2 | S-300-2R | S 300 2R |
| F-350-4 | S-350-4R | S 350 4R | F-300-3 | S-300-3R | S 300 3R |
| | | | F-300-4 | S-300-4R | S 300 4R |
Storage Precautions
1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius

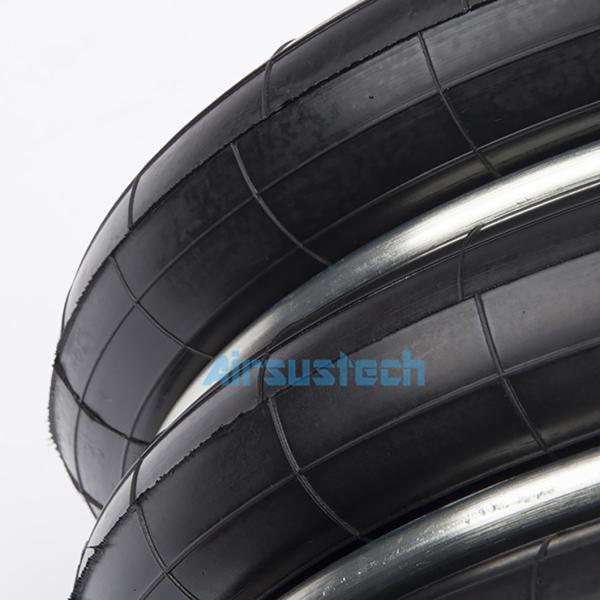

The Related Picture of F-300-3
