1/4NPT Air Inlet Triple Convoluted Air Rubber M10X1.5 Guomat Air Spring 3B5617

Name: 14NPT Air Inlet Triple Convoluted Air Rubber M10X15 Guomat Air Spring 3B5617
Brand: GUOMAT
Price: 1 USD

China 1/4NPT Air Inlet Triple Convoluted Air Rubber M10X1.5 Guomat Air Spring 3B5617 wholesale

Brand Name : GUOMAT

Model Number : 3B5617

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Product NO. : 3B5617

Structure : Triple Convoluted

Air Inlet : 1/4NPT

Plate Diameter : 231mm

Pressure Ability : 0.2-0.8 M PA

Trademark : GUOMAT

Type : Gas-Filled

Spring Material : Rubber And Steel

Contact Now

1/4NPT Air Inlet Triple Convoluted Air Rubber M10X1.5 Guomat Air Spring 3B5617

Product Introduction

Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.
The actuator also features top and bottom plates that are crimped and coated with a zinc plating. This addition serves to provide excellent corrosion resistance, ensuring that the actuator maintains its high-quality performance over time. With its unique combination of power, adaptability, and durability, our Convolution Air Actuator stands as a dependable choice for any industrial requirement.

Product Information

Air Inelt	1/4NPT
Screw Type	M10×1.5
Design Height	195 mm
Natural Diameter	295 mm
Cover Plate Diameter	231 mm
Center to Center Distance	157.5 mm
Distance Air Hole Betweeen Screw	73 mm

Hot Selling Air Spring

FOR S-CANIA TRUCK	FOR V-OLVO TRUCK
FOR DAF TRUCK	FOR BPW TRUCK
FOR HENDRICKSON TRUCK	FOR SAF TRUCK
FOR FREIGHTLINER TRUCK	FOR MERCEDES-BNEZ TRUCK
FOR MAN TRUCK	FOR MERITOR TRUCK

GUOMAT Other Related Product

Contitech	Goodyear	Fire-stone	Phoenix
928N	8042	W01-095-0228	2E23A
943N	9001	W01-095-0189
973N	8012	W01-095-0198	1F21A
945N	9014	W01-095-0063	1E21C
975N		W01-095-0437	1E10
		W01-095-0294
		W01-358-9391
4913NP02	1R14-753	W01-095-0500	1D28H-16
	1R14-869
4159NP06		W01-M58-0736
810NTB	1R14-713	W01-M58-0749	1DK28A4
4022NP02	1R11-709	W01-M58-0756
4022NP02	1R11-709	W01-M58-0756
836MB		W01-M58-0775	1DF25-4
836MB	1R12-700	W01-M58-0776	1DF25-1
836M2K1	1R12-711	W01-M58-8721	1DF25-13
887M	1R11-796	W01-M58-0780
889MK2		W01-M58-0781
		W01-M58-0918
4004NP02		W01-M58-0919
4004NP02		W01-M58-0919


6603NP02
4183NP23
4883N1P07
6609NP01

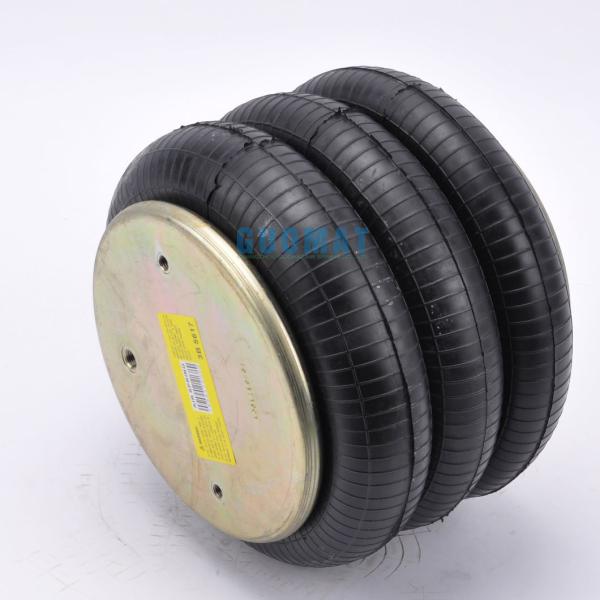

Product Picture

1/4NPT Air Inlet Triple Convoluted Air Rubber M10X1.5 Guomat Air Spring 3B5617
