Brand New W01-358-8006 Firestone Industrial Air Spring For Truck Suspension Parts
Product Introduction
Our high-performance actuator is expertly designed to provide unparalleled performance and remarkable versatility, catering to a diverse range of applications. At the core of its robust design lies a crimped assembly, engineered to deliver superior strength and reliability. Adding to its exceptional framework is a convoluted bellow that is meticulously manufactured using Natural Rubber.
Natural Rubber is esteemed for its outstanding dynamic performance and universal qualities, ensuring the actuator remains powerful and effective under various operating scenarios. This unique combination of materials and engineering precision ensures our actuator offers not only reliability but also adaptability across an array of demanding conditions.
Product Parameters
| Screw Center Distance of Top Cover Plate:157.5mm |
| Screw Center Distance of Bottom Cover Plate:157.5mm |
| Top Cover Plate Diameter:231mm |
| Bottom Cover Plate Diameter:231mm |
| The Working Stroke:MAX 460 mm to MIN 117mm |
| Maximum Height : 460 mm |
| Minimum Height :117mm |
| Compression Height :343mm |
OEM Number
Firestone
W01-358-8006, W01 358 8006, W013588006
WO1-358-8006, WO1 358 8006, WO13588006
Contitech
FT 330-29 430, FT 33029 430, FT 330 29 430
FT330-29 430, FT33029 430, FT330 29 430
Goodyear
3B12-304, 3B12304, 3B12 304
3B 12-304, 3B 12 304, 3B 12304
Triangle
6334, 4430
Leland
Sc2132
Arvin Meritor
200620
Product Applications
- Scissor lift
- Hopper vibration and damping
- Mechanical handling stop
- Quick lock device
- Reel tensioning
- Machine isolation
- Direct force
- Impact absorbtion
- Roller tensioning
- Platform lift
- Short stroke mechanical linkage
- Hot foll stamping press

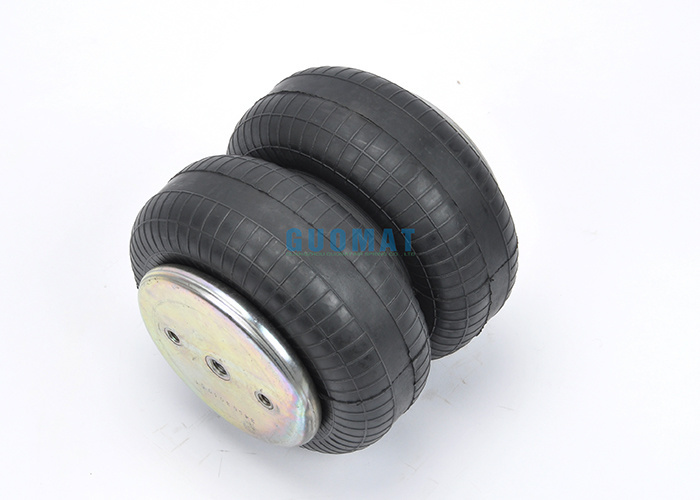

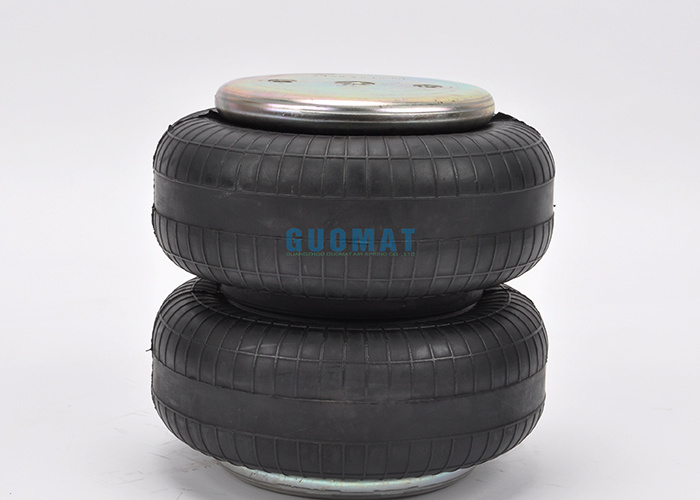

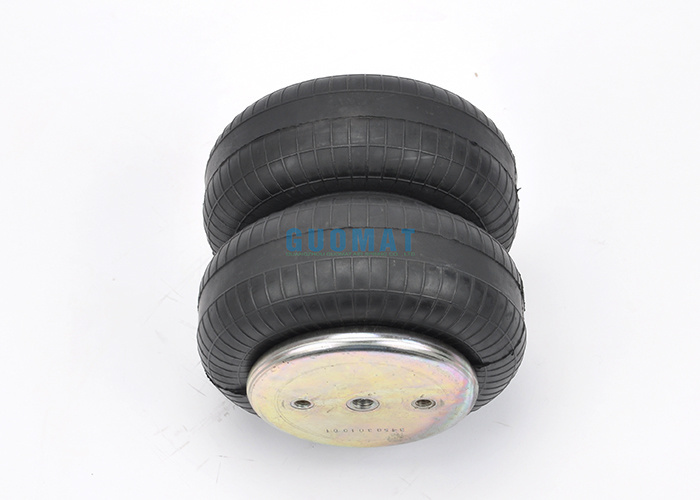

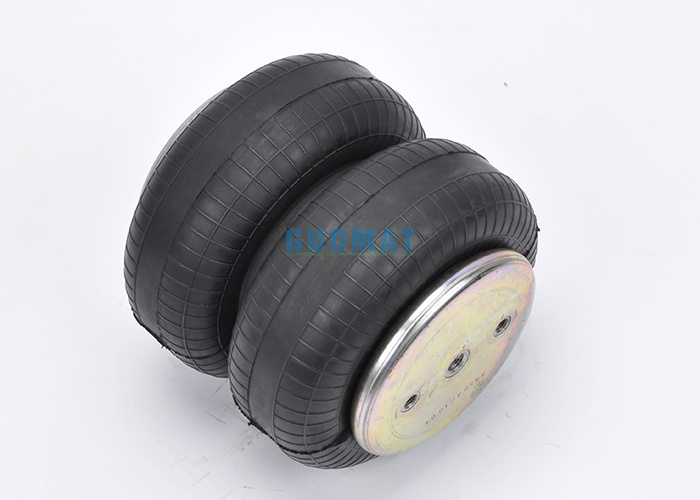

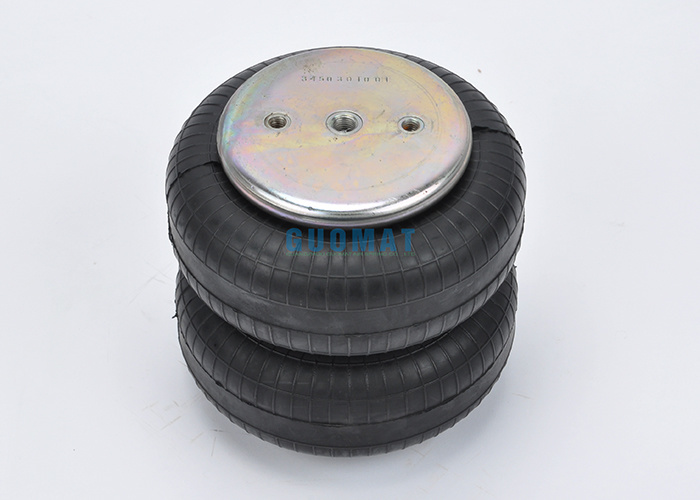

Product Detailed Pictures
