Guomat Industrial Air Spring 3B2400 Air Shocks Triple Convoluted Type Air Bellow

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Guomat Industrial Air Spring 3B2400 Air Shocks Triple Convoluted Type Air Bellow

Brand Name : GUOMAT

Model Number : 3B2400

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : 3B2400

N.W. : 5.5 Kg

Air Inlet : 1/2-14NPT

Warranty : One Year

Material : Rubber and Iron

OEM : Yes

Type : Suspension Spring

Customization : Available | Customized Request

Contact Now

Guomat Industrial Air Spring 3B2400 Air Shocks Triple Convoluted Type Air Bellow

Product Introduction

Air springs are meticulously designed to deliver exceptional durability, precise engineering, and cost-efficiency for an extensive range of actuation and vibration isolation applications. Crafted with a time-tested design, these springs feature fabric-reinforced neoprene or natural rubber flex members and corrosion-resistant end retainers, ensuring unparalleled quality and longevity. As vibration isolators, air springs play a crucial role in minimizing the detrimental effects of vibration. Their innovative design allows them to simultaneously isolate vibrations and adjust load height dynamically, providing consistent and reliable vibration isolation even under varying load conditions.

Product Specifications

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC

Screw Center Distance of Bottom Cover Plate : MIDDLE

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2-14NPT

Center Distance Between air inlet and Nut : 22 mm

Cover Plate

Top Cover Plate Diameter (Width): 113 mm

Bottom Cover Plate Diameter (Width): 113 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 144.5 mm

Rubber Bellows MAX Diameter : 165 mm

Design Height: 213mm

Bellows # NO.: 2400

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

We Can Supply Triple Convoluted Air Springs

3B12-304 3B12-305 FT 330-29 CI SP2910
3B14-351 3B14-353 FT 430-32 CI SP2895
3B14-354 3B15-375 FT 530-32 CI SP2923
3B15-376 3B15-377 FT 530-35 CI SP2861
3B15-378 FT 960-34 CI SP2863
FT 1330-35 CI SP1539
SP1542
SP1558
SP2141

Support And Services

  • Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
  • We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
  • Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

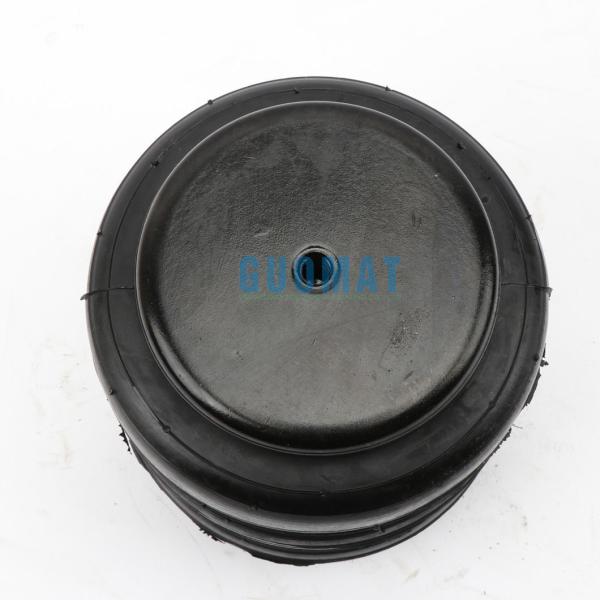

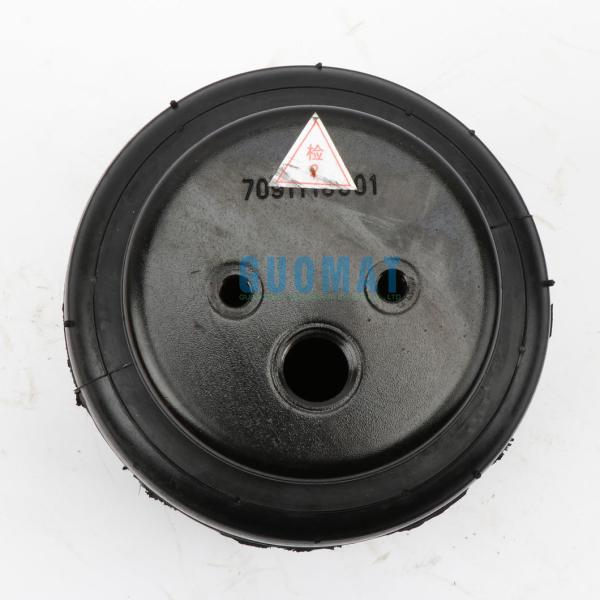

Real Photos

Guomat Industrial Air Spring 3B2400 Air Shocks Triple Convoluted Type Air Bellow

Guomat Industrial Air Spring 3B2400 Air Shocks Triple Convoluted Type Air Bellow
Guomat Industrial Air Spring 3B2400 Air Shocks Triple Convoluted Type Air Bellow
