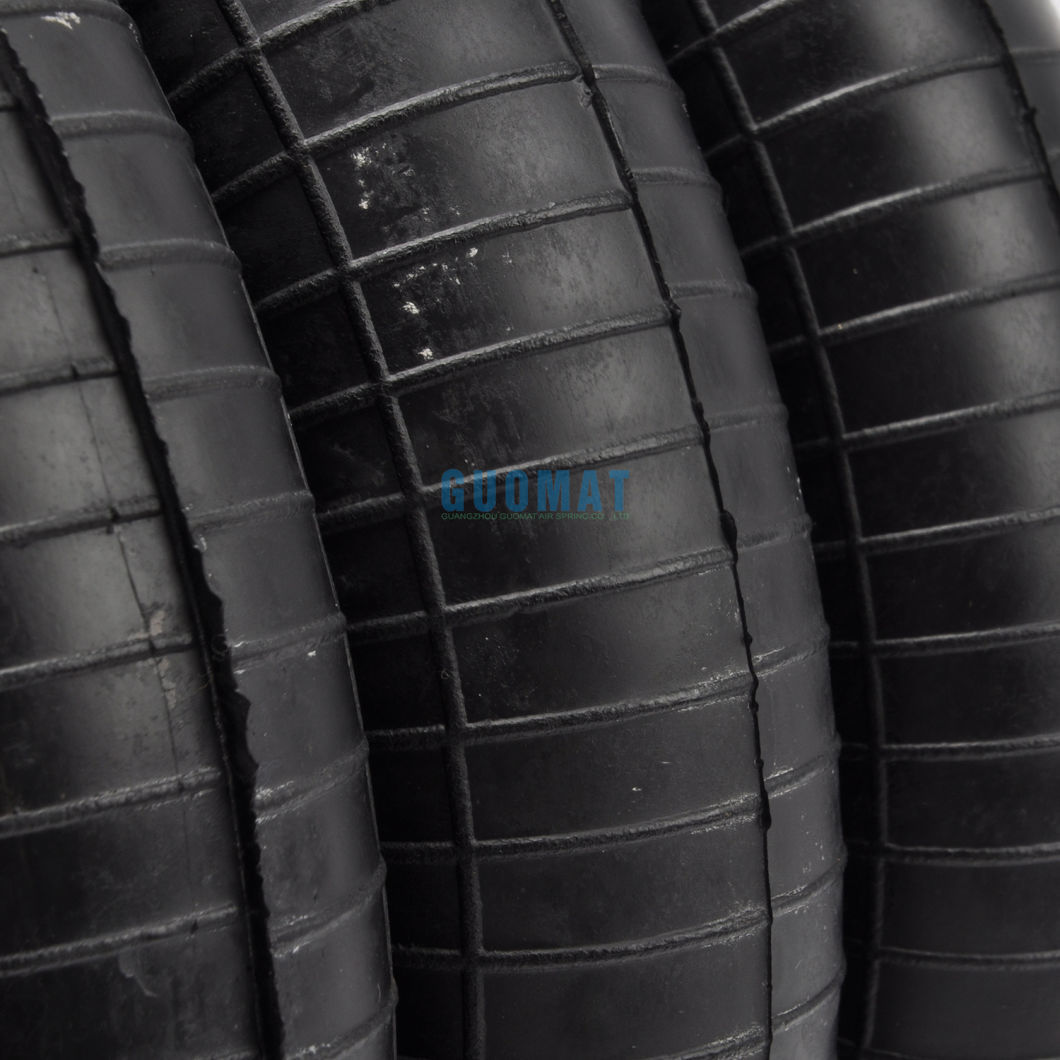

Guomat Air Spring 3B6617 Triple Convoluted Air Spring Rubber Bellow NO. 3B300

Name: Guomat Air Spring 3B6617 Triple Convoluted Air Spring Rubber Bellow NO 3B300
Brand: GUOMAT
Price: 1 USD

China Guomat Air Spring 3B6617 Triple Convoluted Air Spring Rubber Bellow NO. 3B300 wholesale

Brand Name : GUOMAT

Model Number : 3B6617

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : 3B6617

Pressure Ability : 0.2-0.8 M PA

Air Inlet : 1/4NPTF

Top Plate Dia : 231 mm

Warranty : One Year

Rubber Bellow Max. Dia. : 330 MM

Bellows Type : Triple Convoluted

Operation : Gas-filled

Contact Now

Guomat Air Spring 3B6617 Triple Convoluted Air Spring Rubber Bellow NO. 3B300

3B6617 Technical Parameters

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth	2pcsXM10-1.5
Screw Center Distance of Top Cover Plate	157.5mm
Bottom Cover Plate Screw (Nut) Tooth	2pcsXM10-1.5
Screw Center Distance of Bottom Cover Plate	157.5mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet	1/4NPTF
Cover Plate
Top Cover Plate Diameter	231 mm
Bottom Cover Plate Diameter	231 mm
Rubber Bellows
Rubber Bellows MAX Diameter	330 mm
Rubber Bellows Natural Diameter	300 mm
The Working Stroke	MAX 460 mm to MIN 130 mm
Maximum Height	460 mm
Minimum Height	130 mm
Compression Height	330 mm

CONTITECH FT 330-29 Cross others OEM

BELLOW Numbers	COMPLETE NO.	COMPLETE Numbers
AIRKRAFT 116008	AIRKRAFT 115033	AIRKRAFT 115027
FIRE STONE Air Spring FLEX 38R/38D	CONTITECH FT 330-29 773	CONTITECH FT 330-29 430
FIRE STONE Air Spring 095.0047	FIRE STONE Air Spring W01-358-8013	FT 330-29 498
GOODYEAR FLEX 556 3 3 8334	GOODYEAR 3B12-305	FT 330-29 503
578 93 3 100	AIRKRAFT 115035	FT 330-29 702
CONTITECH FT 330-29 432	FIRE STONE Air Spring W01 358 8006
FIRE STONE Air Spring W01-358-8010	W01 358 8030
GOODYEAR 3B12-301	GOODYEAR 3B12-304

Product Applications

Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press

FAQ

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
