FD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% Tested

Brand Name : GUOMAT

Model Number : 2B6943

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : 2B6943

Spring Material : Rubber And Steel

Structure : Double Convoluted

Function : Reduce Shock

Fire-Stone : W01-358-6943

Goodyear : 2B9-250

Trademark : GUOMAT

Warranty : 1 Year

Contact Now

FD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% Tested

Air Spring Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Product Specifications

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 89 mm
Bottom Plate Diameter: 161 mm
Bottom Plate Hole Quantity: 2
Bottom Plate Type: Steel
Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 89 mm
Top Plate Diameter: 161 mm
Top Plate Hole Quantity: 3
Top Plate Type: Steel
Bellow Maximum Diameter: 260 mm
Expanded Height: 325 mm
Compressed Height: 77 mm
Spring Type: Double Convoluted
Air Inlet: G 1/4
Nut/Blind Nuts Type: M8

Manufacturer Part Number

  • Fire-stone W01-358-6943
  • Contitech FD 200-25 426
  • Contitech 161332
  • Goodyear 2B9-250
  • Goodyear 578923206
  • Triangle 6332/4426
  • Watson&Chalin AS-0041
  • Neway/SAF 90557237
  • Ridewell 1003586943C
  • Tuthill 6352
  • V-Steer II(Lift Bag)
  • Van Raden

GUOMAT Air Spring Advantages

  1. Long service life
  2. Maintenance-free
  3. Highly operational safety
  4. Frictionless
  5. Lateral misalignment possible
  6. Chemical resistance


Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
FD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% Tested

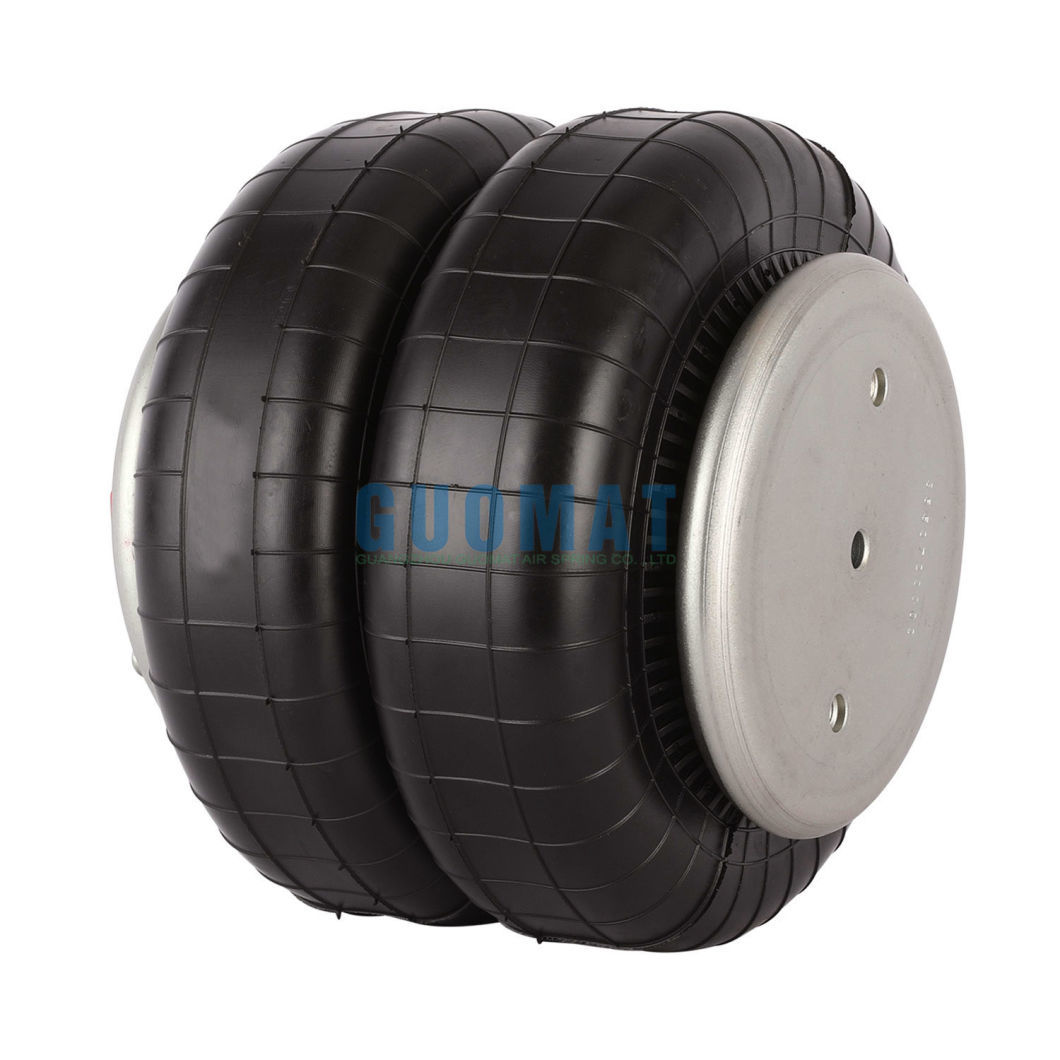

Product Images
FD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% TestedFD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% TestedFD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% TestedFD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% Tested
