Firestone Air Rubber Bellow W01-M58-6105 1/4 BSP Air Inlet Transfer Station Machine

Firestone Air Rubber Bellow W01-M58-6105 1/4 BSP Air Inlet Transfer Station Machine

Product Introduction

Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.

Product Information

• Number of screws on the top cover: 3
• Number of bottom cover screws: 2
• Top cover plate screw (nut) tooth: M8
• Top cover screw center distance: 93mm
• Screw (nut) teeth of the bottom cover plate: M8
• Center distance of bottom cover plate screw: 44 mm
• Air hole/air inlet/air connector
• Air hole/air inlet: 1/4 BSP
• Top cover diameter: 114 mm
• Diameter of bottom cover: 114 mm
• Rubber Bellow Max. Dia.: 163 mm
• Buffer block/buffer block
• Unbuffered block
• Waist ring/waist ring
• Strap ring: no strap ring

OEM Number

Firestone Style 255-1.5 We Can Supply

What Are The Advantages of Our Shock Absorbers

1. Increase driving comfort
2. Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
3. Lower fuel consumption and longer life
4. Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
5. High stability
6. In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

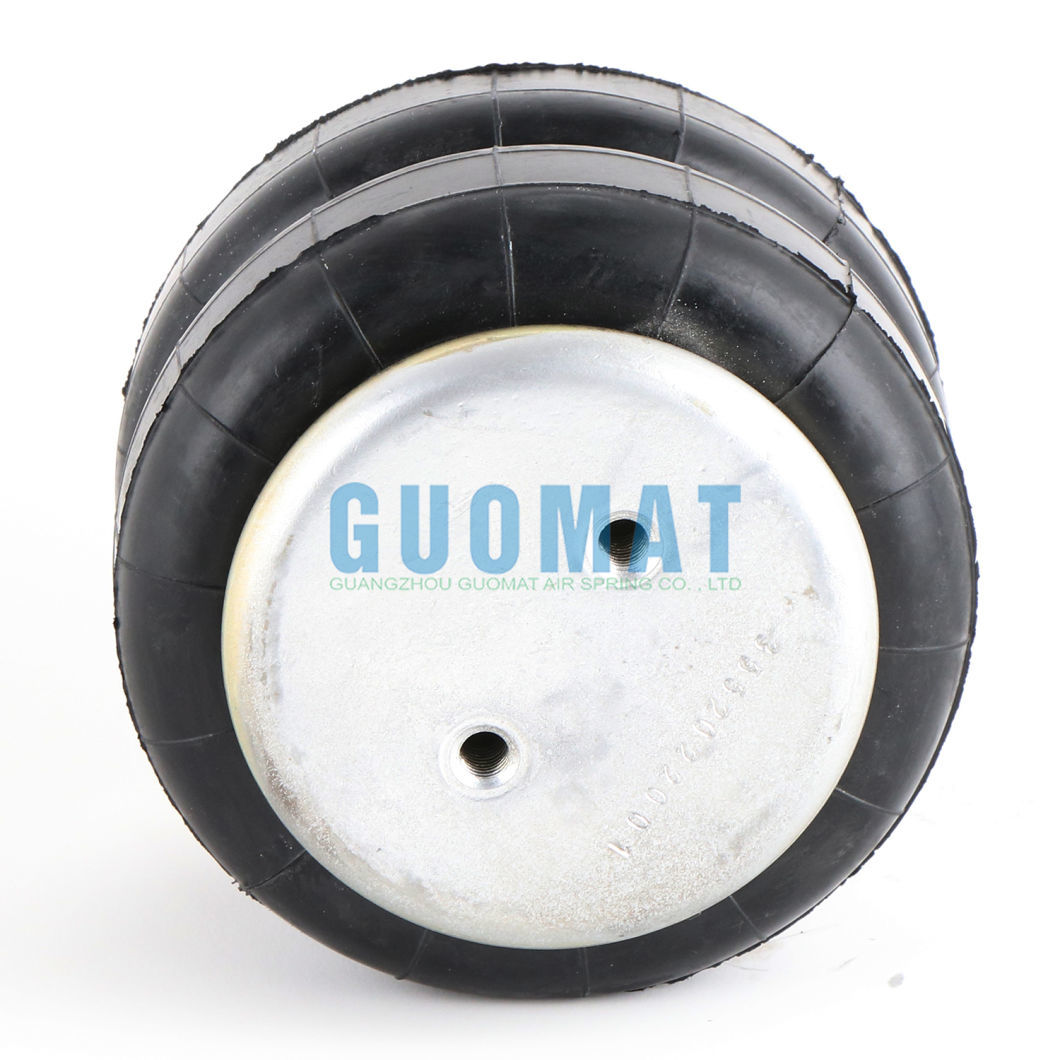

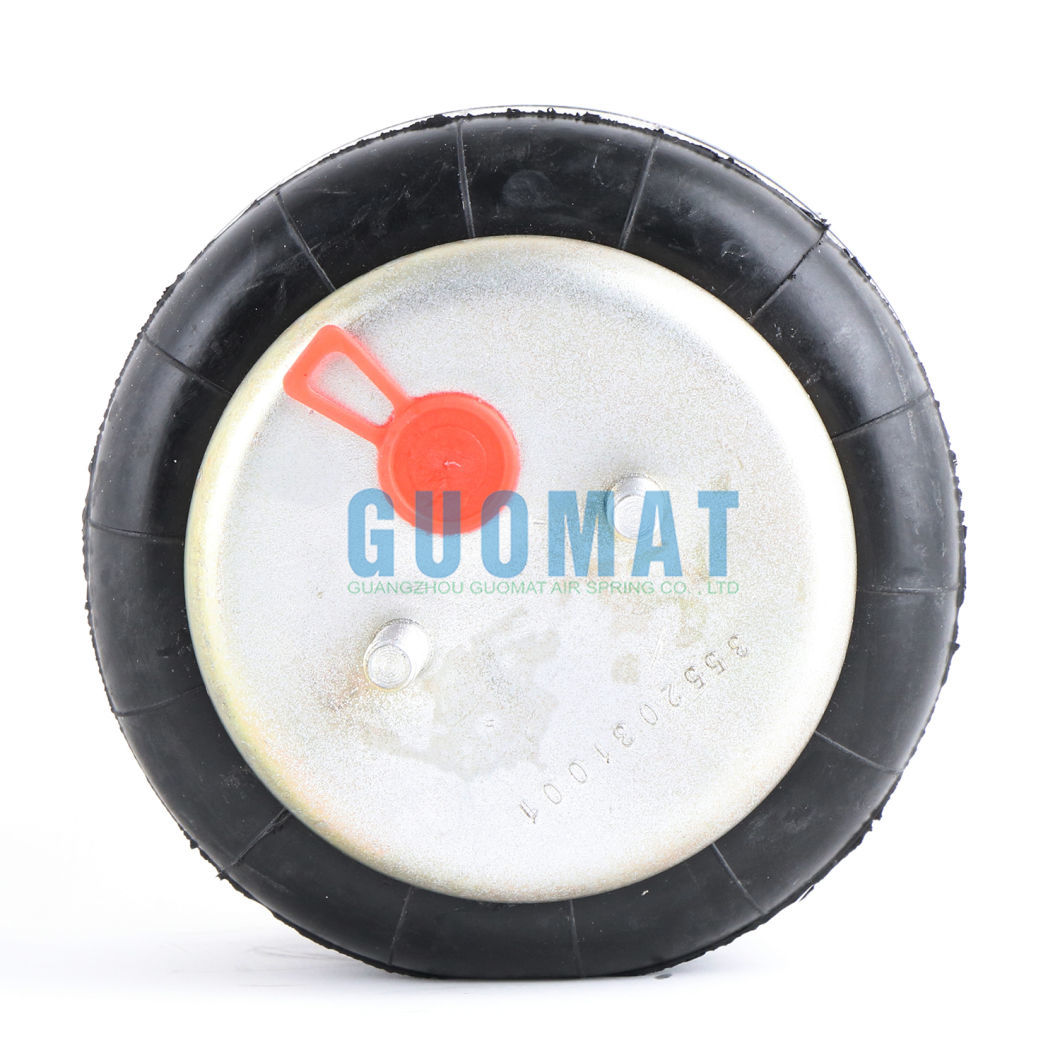

Product Images
