Contitech FD 614-26 Air Spring Suspension System For Pneumatic Applications

Name: Contitech FD 61426 Air Spring Suspension System For Pneumatic Applications
Brand: GUOMAT
Price: 1 USD

China Contitech FD 614-26 Air Spring Suspension System For Pneumatic Applications wholesale

Brand Name : GUOMAT

Model Number : 2B1426

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : 2B1426

Structure : Double Convoluted

Function : Reduce Shock

Quality : 100% Tested

Part : Air Spring

Operation : Gas-Filled

Minimum Height : 75 MM

Maximum height : 340 MM

Contact Now

Contitech FD 614-26 Air Spring Suspension System For Pneumatic Applications

Product Information

Bottom Cover Plate

Alignment: Parallel
Center To Center Diameter: 282.5 mm
Diameter: 310 mm
Hole Quantity: 4
Type: Steel

Top Cover plate

Alignment: Parallel
Center To Center Diameter: 282.5 mm
Diameter: 310 mm
Hole Quantity: 5
Type: Steel

Rubber Bellow

Maximum Diameter: 400 mm
Expanded Height: 75 mm
Compressed Height: 340 mm
Spring Type: Double Convoluted

Air Inlet/Air Hole/Gas Hole/Gas Fitting

Type: 1/2 BSP

Nut/Blind Nuts

Type: 4×M10

Cross References

Contitech Part Number

FD614-26

FD 614-26

FD614-26 DS

FD 614-26 DS

FD614-26 DS G1/2

FD 614-26 DS G1/2

Contitech Model Series D Type Air Spring

Single Convoluted Bellows
FS 22-3 DI CR	2 3/4X1
FS 44-5 DI CR	4 1/2X1
FS 76-7 DI CR	6X1
FS 76-7 DS CR	6X1
FS 138-8 DS	8X1
FS 210-10 DS	10X1
FS 412-10 DS	12X1
FS 614-13 DS	14X1
FS 916-15 DS	16X1

Double Convoluted Bellows
FD 22-4 DI CR	2 3/4X1
FD 44-10 DI CR	4 1/2X1
FD 76-14 DI CR	6X2
FD 76-14 DS CR	6X2
FD 138-18 DS	8X2
FD 209-21 DS	9 1/4X2
FD 210-22 DS	10X2
FD 412-18 DS	12X2
FD 614-26 DS	14X2
FD 816-30 DS	16X2

Triple Convoluted Bellows
FT 22-6 DI CR	2 3/4X3
FT 44-15 DI CR	4 1/2X3
FT 76-20 DI CR	6X3
FT 76-20 DS CR	6X3
FT 138-26 DS	8X3
FT 210-32 DS	10X3
FT 412-32 DS	12X3
FT 614-36 DS	14X3
FT 816-40 DS	16X3

Advantages of GUOMAT Air Spring

Enhanced Durability: Built with reinforced rubber and steel components, the FD 614-26 air spring is highly resistant to wear, corrosion, and extreme environmental conditions.
Optimal Shock Control: The advanced technology within the Contitech FD 614-26 effectively minimizes vibrations and impact forces for smoother operation.
Extended Service Life: Ensures long-term reliability, reducing routine maintenance costs and downtime.
Wide Compatibility: The product can seamlessly integrate into a variety of systems, thanks to its compatibility with multiple OEM parts.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Contitech FD 614-26 Air Spring Suspension System For Pneumatic Applications

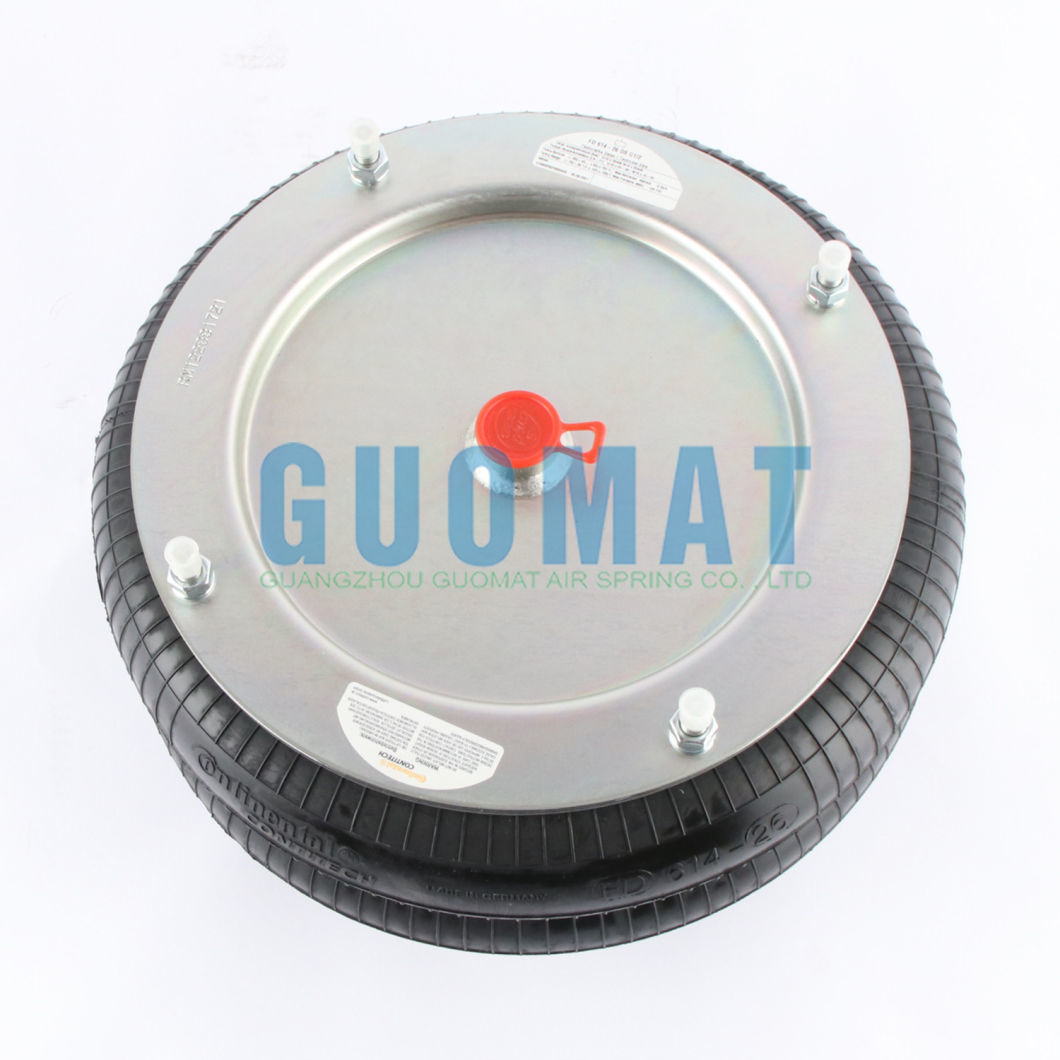

Product Images
