Firestone Air Rubber Bellow W01-R58-4055 Air Spring Suspension 4×M10 Studs
2B8×2T Air Spring Information
| Bottom Plate Alignment: Parallel |
| Bottom Plate Center To Center Diameter: 156 mm |
| Bottom Plate Diameter: 184 mm |
| Bottom Plate Hole Quantity: 4 |
| Bottom Plate Type: Steel |
| Top Plate Alignment: Parallel |
| Top Plate Center To Center Diameter: 156 mm |
| Top Plate Diameter: 184 mm |
| Top Plate Hole Quantity: 5 |
| Top Plate Type: Steel |
| Bellow Maximum Diameter:230 mm |
| Expanded Height: 72 mm |
| Compressed Height: 225 mm |
| Spring Type: Double Convoluted |
| Air Inlet: 1/2 BSP |
| Nut/Blind Nuts Type: 4×M10 |
Alternative Items
| FIRE-STONE NO. | W01-R58-4055, W01R584055, W01/R58/4055 w01-r58-4055, w01r584055, 4055, 8x2 , 8''x2 , 8'x2 |
| FRUEHAUF NO. | F48054, M80A04, F 48054, M 80A04 |
| LOHR NO. | A06030604, A 06030604 |
| SAMRO NO. | H2500021, H2500188, H 2500021, H 2500188, H 250 0021, H 250 0188 |
| SISU TRUCK NO. | 1531110600, 153 111 0600 |
| DUNLOP NO. | SP1490, SP918, SP 1490, SP 918 |
| CONTITECH NO. | FD 138-18 DS, FD138-18 DS, FD128 18 DS, FD 138 18 DS |
| NORGREN NO. | M/31082, M 31082, M31082 |
| PARKER NO. | 9109011 |
Product Applications
- Gate Valve Operator
- Glue Coating Machine
- Web Tightening Tool
- Stripper
- Tool Spring Driver
- Quenching Drain Driver
- Paper Mill
- Pickling Tank Driver
FAQ
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.
Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world
Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.
Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

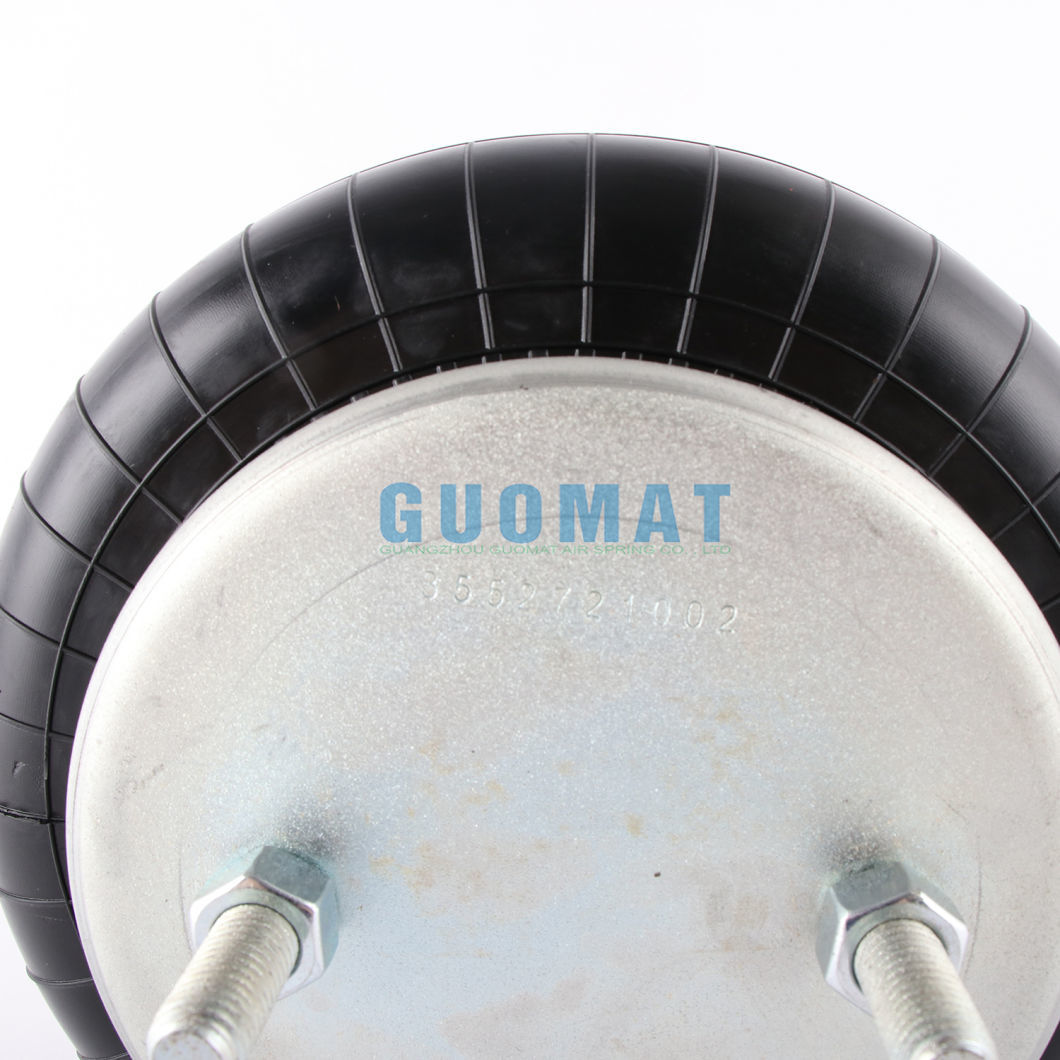

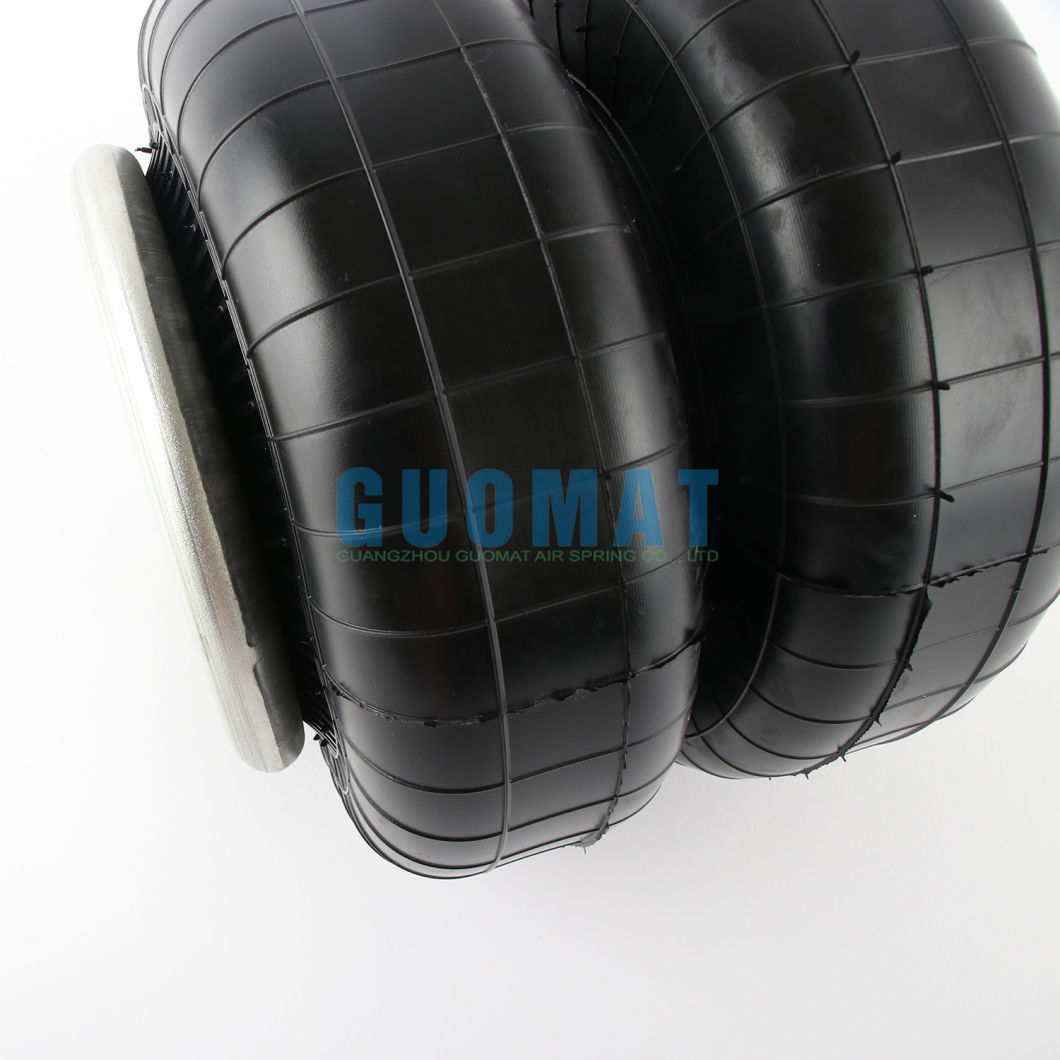

Product Images
