Contitech FD40-10 Rubber Air Spring For Truck For Trailer Air Shock Suspension
Product Description
GUOMAT NO.:2B4060
Contitech:FD40-10
Contitech:FD 40-10
Contitech:FD40-10 CI
Contitech:FD 40-10 CI
Contitech:FD40-10 CI 1/8 NPT
Contitech:FD 40-10 CI 1/8 NPT
Technical Data
Top Cover Plate Diameter (Width): 90 mm
Bottom Cover Plate Diameter (Width): 90 mm
Air inlet : G1/8
Top Cover Plate Screw (Nut) Tooth : 2 X M8X1.25
Screw Center Distance of Top Cover Plate : 20 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 X M8X1.25
Screw Center Distance of Bottom Cover Plate : 20 mm
Rubber Bellows Natural Diameter : 125mm
Rubber Bellows Natural Height : 145 mm
With Girdle Hoop :One Piece of Girdle Hoop
Contitech Air Spring Bags
| FS 22-3 DI CR | FS 44-5 DI CR | FS 76-7 DI CR |
| FS 76-7 DS CR | FS 138-8 DS | FS 210-10 DS |
| FS 412-10 DS | FS 614-13 DS | FS 816-15 DS |
| FD 22-4 DI CR | FD 44-10 DI CR | FD 76-14 DI CR |
| FD 76-14 DS CR | FD 138-18 DS | FD 209-21 DS |
| FD 210-22 DS | FD 412-18 DS | FD 614-26 DS |
| FD 816-30 DS | FT 22-6 DI CR | FT 44-15 DI CR |
| FT 76-20 DI CR | FT 76-20 DS CR | FT 138-26 DS |
| FT 210-32 DS | FT 412-32 DS | |

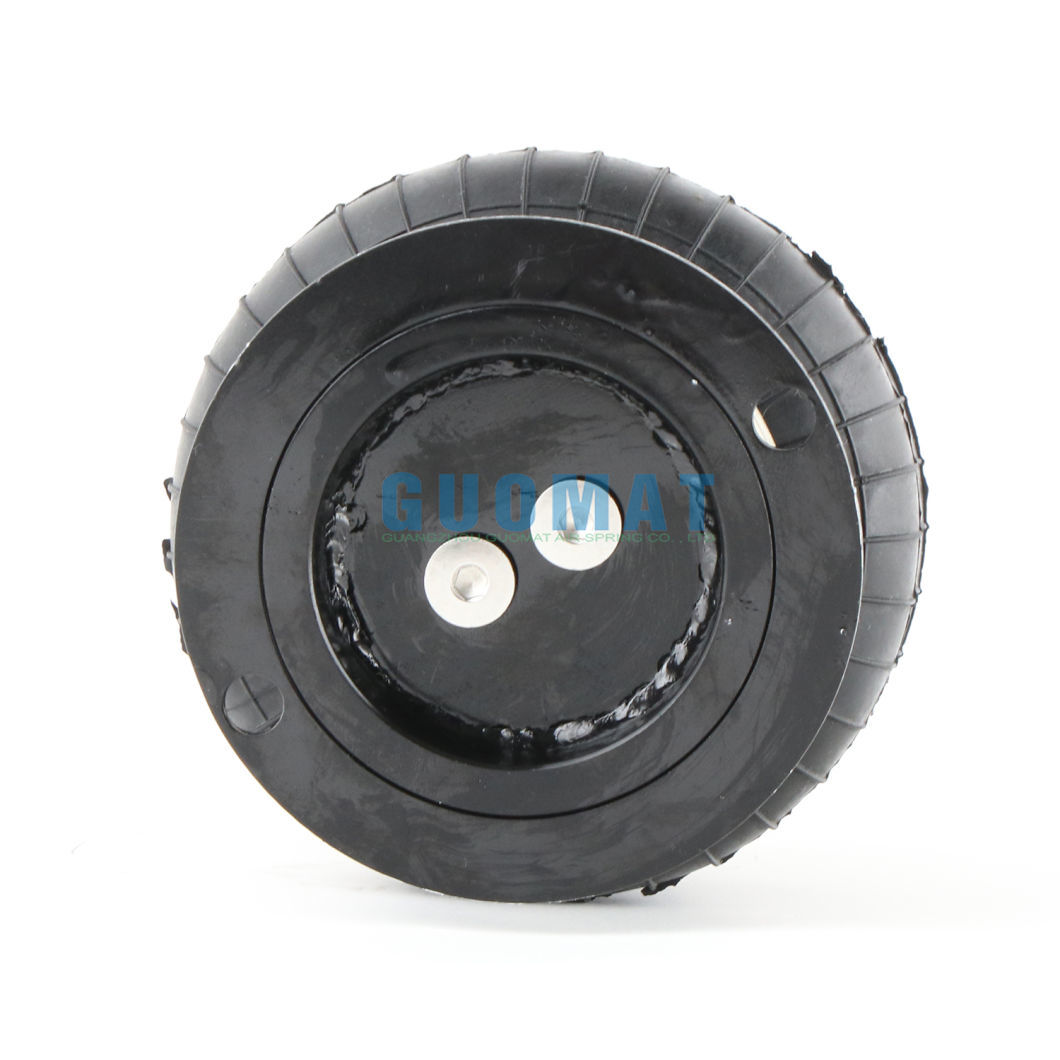

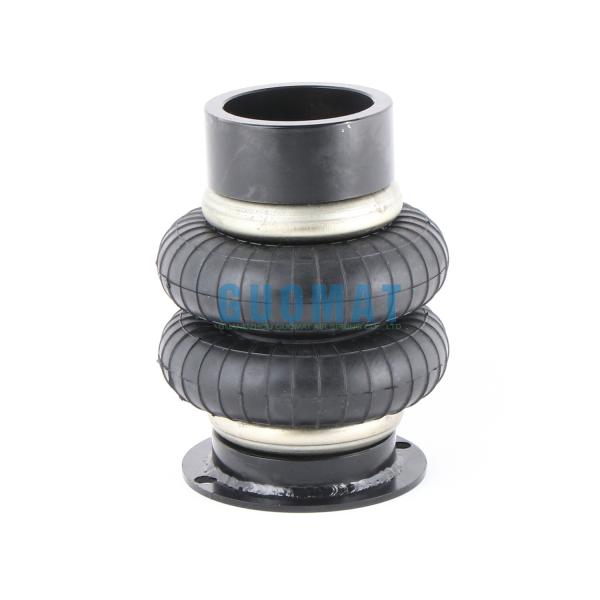

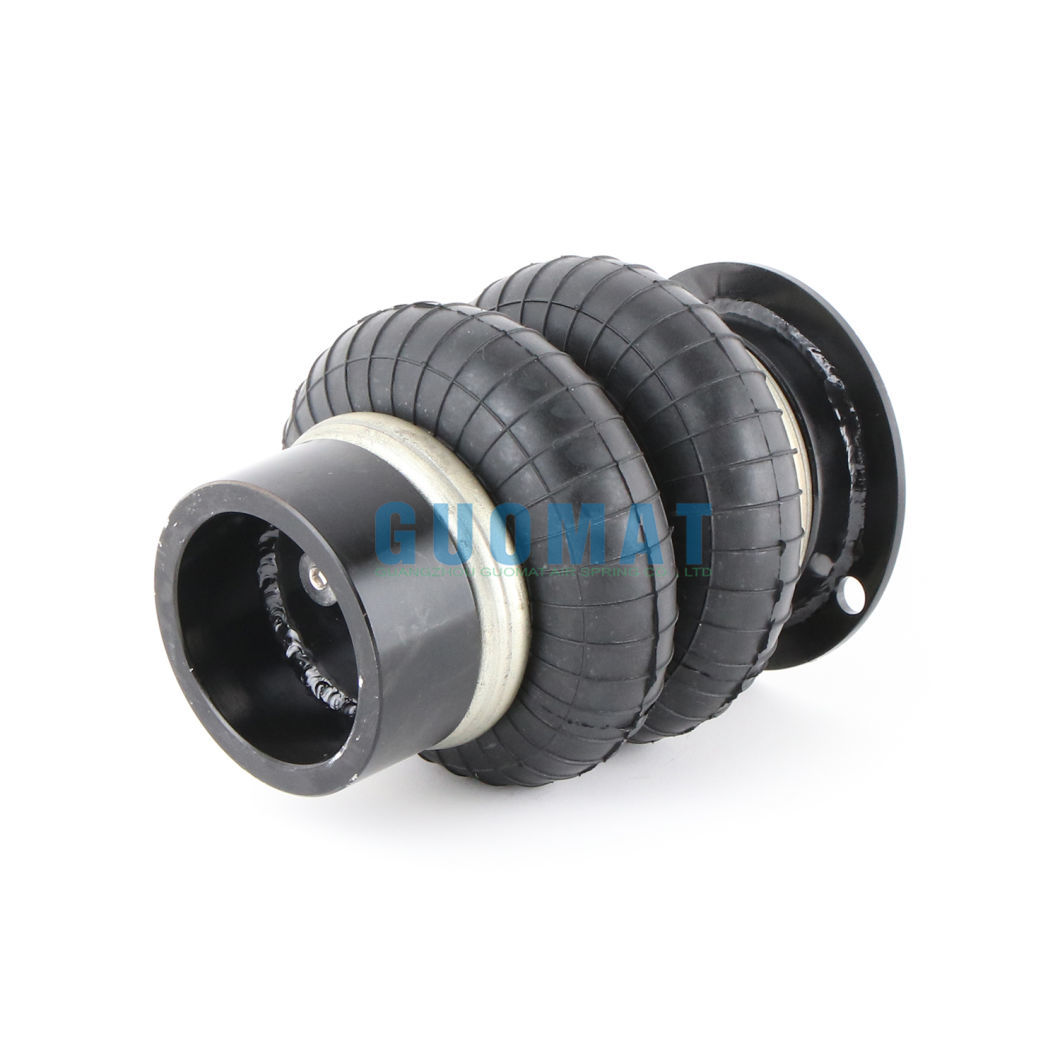

The pictures of air spring/air actuator/air ballon
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
Factory workshop
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.
Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
