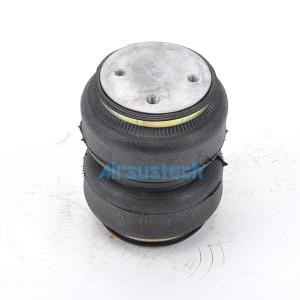

2B5813 Double Convoluted Air Shock Suspension By GUOMAT Air Spring Manufacturer
About Air Spring Production Knowledge
Rubber lining is a retractable inner mold with different shapes formed by the polymer properties of vulcanized rubber and high-strength fiber cloth. It is a product made of vulcanized rubber and fibers. It is compressive, elastic and airtight. After being filled with compressed air, the air bag will expand to meet the design requirements of its cross-section. Under the premise of ensuring quality, if it is used improperly, the service life of the air spring will be greatly shortened. Due to its low quality, good comfort and fatigue resistance, the rubber air spring has the advantages of long service life, vibration reduction and noise reduction. Widely used in industrial machinery, instrumentation and other equipment.
2B5813 Specification
| Top plate screw (nut) teeth | 2X3/8-16UNC |
| The screw center distance of the top cover plate | 68.5 mm |
| Bottom cover plate screw (nut) teeth | 3X3/8-16UNC |
| Distance between the center of the most two screws | 69.5 mm |
| Air hole | PT1/4 |
| Distance betweem air hole and screw | 35 mm |
| Rubber bellows stroke | 188 mm |
| Rubber bellows diameter | 141 mm |
| Top plate diameter (width) | 105.5 mm |
| Bottom cover plate diameter | 105.5 mm |
Other Types Of Air Lift Loadfilter Air Spring Replacement
| 58218 |
| 58124 |
| 58103 |
| 5814 |
| 5815 |
| 58352 |
| 58623 |
| 58616 |
| 58615 |
What Are The Advantages of Our Shock Absorbers
- Increase driving comfort
- Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
- Lower fuel consumption and longer life
- Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
- High stability
- In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

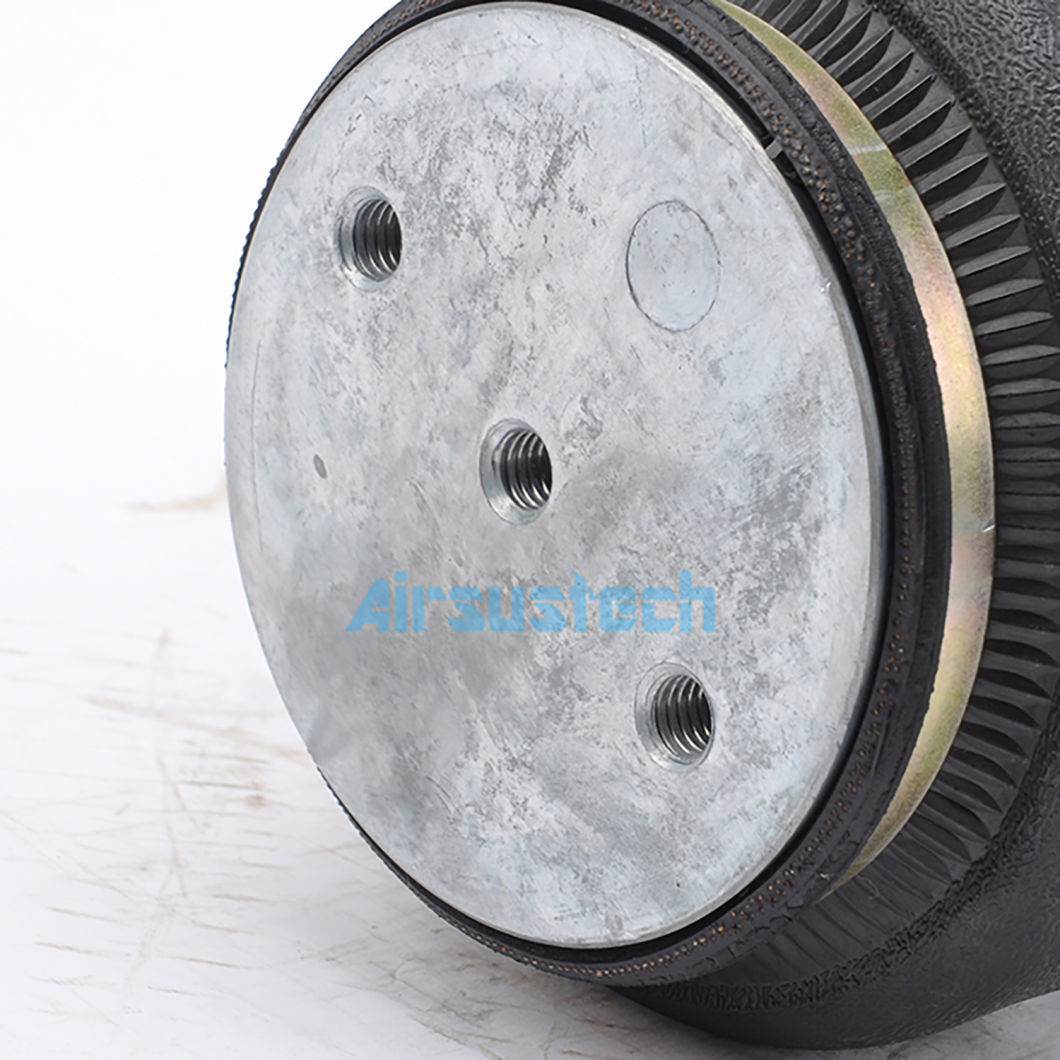

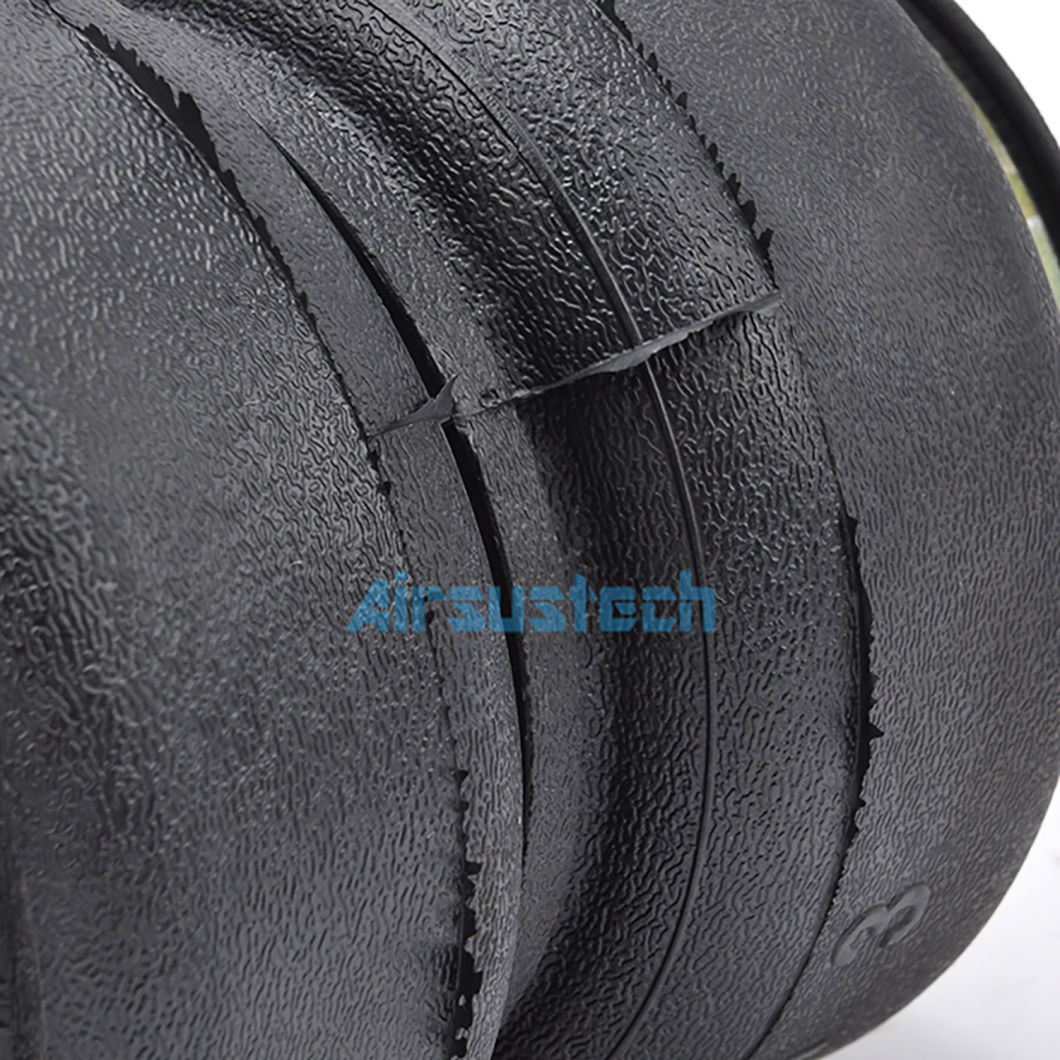

The Related Picture
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory Workshop
