Convoluted Air Spring GUOMAT 2B5240 Airride Air Spring Assembly Heavy Truck Part

Name: Convoluted Air Spring GUOMAT 2B5240 Airride Air Spring Assembly Heavy Truck Part
Brand: GUOMAT
Price: 1 USD

China Convoluted Air Spring GUOMAT 2B5240 Airride Air Spring Assembly Heavy Truck Part wholesale

Brand Name : GUOMAT

Model Number : 2B5240

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Bellows Type : Double Convoluted

Quality : 100 % Tested

Trademark : GUOMAT

Working Temperature : -40℃ To +70℃

Air Hole : 3/8 NPT

Rubber Bellows Stroke : 160 MM

Nut/Blind Nuts : 2×3/8-16 UNC | Customized Request

Contact Now

Convoluted Air Spring GUOMAT 2B5240 Airride Air Spring Assembly Heavy Truck Part

2B5240 Specification

Top plate screw (nut) teeth: 2X3/8-16UNC

The screw center distance of the top cover plate: 44.5mm

Bottom cover plate screw (nut) teeth: 3/8-16UNC

Air hole/air inlet/air fittings: 3/8NPT

The distance betweem the air hole/air inlet/air fittings and the screw: 22mm

Rubber bellows stroke: 160mm

Rubber bellows diameter: 121mm

Top plate diameter (width): 111 mm

Bottom cover plate diameter: 111 mm

Bumper block/bumper block: without

Belt loop: with one piece of belt loop/girdle hoop

Working Temperature: -40°C +70°C

Failure testing: ≥3 millions

GUOMAT Air Spring Features

Premium Quality Materials: Our Convoluted Air Spring GUOMAT 2B5240 is crafted with high-quality materials, ensuring maximum durability and reliability for heavy-duty use.
Excellent Suspension Performance: This air spring assembly offers superior suspension performance, thanks to its ability to absorb and buffer external shocks effectively. It provides a smooth and comfortable ride for both the driver and the load.
Adjustable Stiffness: The air spring allows for easy adjustment of stiffness, making it adaptable to different applications and working conditions. This feature ensures optimal performance in a variety of scenarios.
Long Service Life: Built with precision engineering and high-grade materials, this air spring assembly is designed to offer a long service life, reducing the need for frequent replacements and maintenance.
Environmental Friendliness: Made with eco-friendly materials, this air spring contributes to protecting the environment while also saving energy.

GUOMAT 2B5240 Applications

Air Cushion Spring
Pneumatic Suspension Spring
Heavy-Duty Truck Part Air Spring Assembly
Product Applications:
This Convoluted Air Spring GUOMAT 2B5240 is designed for use in heavy-duty trucks, providing support and suspension for the vehicle. It ensures a smooth ride even on rough roads, reducing wear and tear on the vehicle and its components.

FAQ

Q: Are you a Manufacture factory?
A: Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.

Q: What's your transportation?
A: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight.

Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.

Q: Can I use my own logo and design on products?
A: YES,OEM is welcomed.

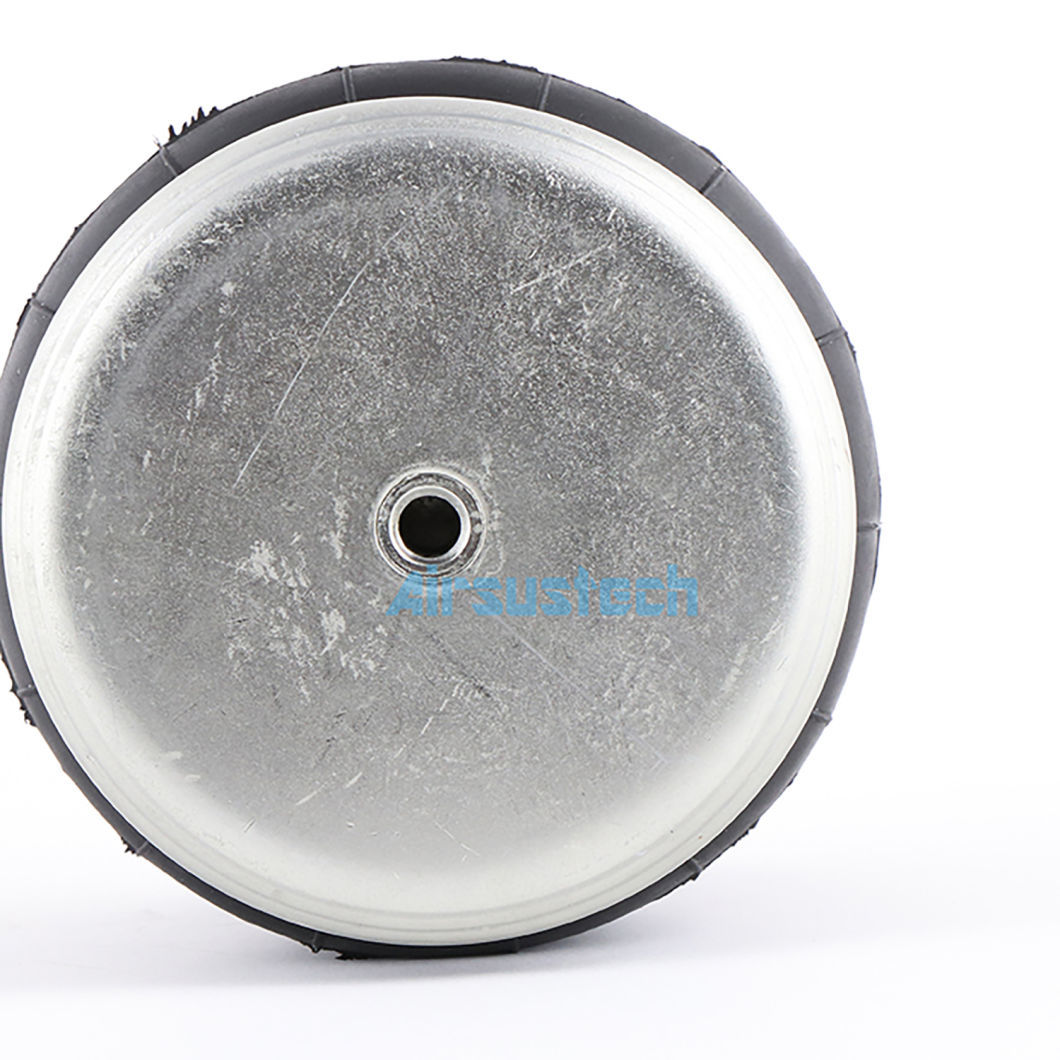

2B5240 Air Spring Real Pictures

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
