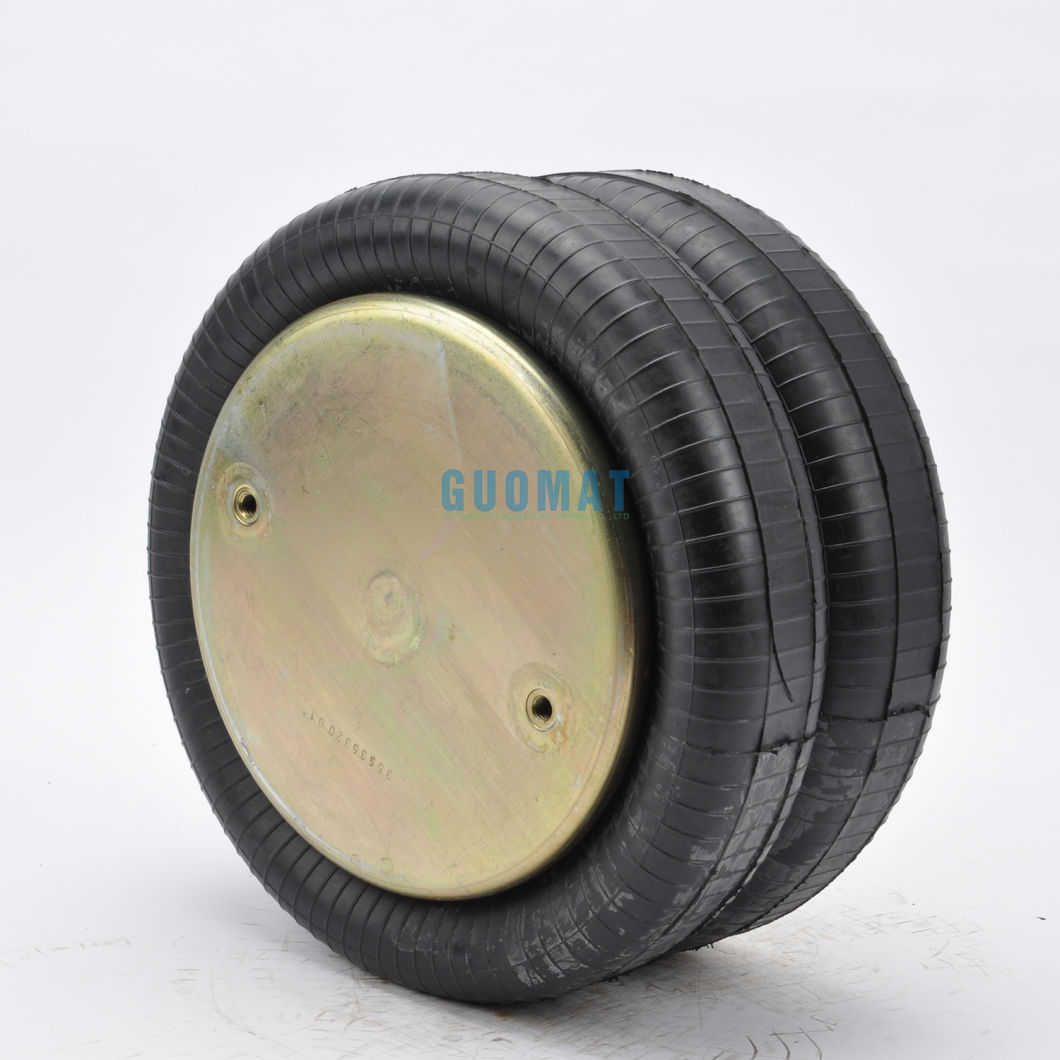

Contitech FD 331-26 514 Suspension Air Spring Air Inlet 1/4-18 NPTF Air Bags

Name: Contitech FD 33126 514 Suspension Air Spring Air Inlet 1418 NPTF Air Bags
Brand: GUOMAT
Price: 1 USD

China Contitech FD 331-26 514 Suspension Air Spring Air Inlet 1/4-18 NPTF Air Bags wholesale

Brand Name : GUOMAT

Model Number : 2B12345

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Product NO. : 2B12345

Air Inlet : 1/4NPTF

Top Plate Hole/Stud : 1/2-13unc and 3/4-16unf

Bottom Plate Hole/Stud : 2X3/8-16unc

Warranty : One Year

Bellow Max. Dia : 13.5 Inches

Quantity : 100% Tested

Brand : AIRSUSTECH Air Spring

Contact Now

Contitech FD 331-26 514 Suspension Air Spring Air Inlet 1/4-18 NPTF Air Bags

Product Specification

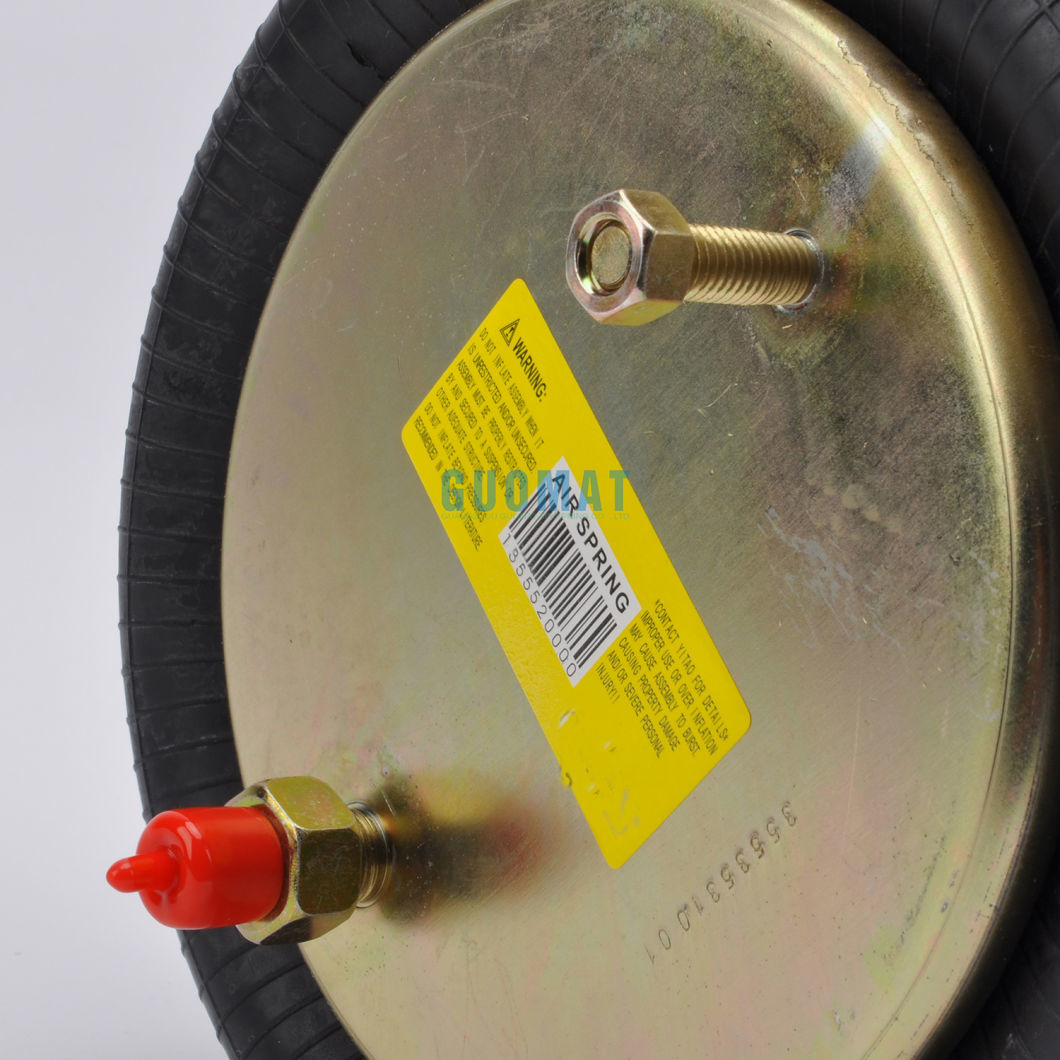

Cover Plate
Top Cover Plate Diameter: 9 in.
Screw Center Distance of Top Cover Plate: 6.2 in.
Bottom Cover Plate Diameter: 9 in.
Screw Center Distance of Bottom Cover Plate: 6.2 in.

Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC

Gas Hole/Air Inlet/Air Fitting
Air Hole: 1/4-18 NPTF

Rubber Bellow
Rubber Bellow Dia: 13.5 in.
Minimum Height: 3.5 in.
Maximum Height: 14.3 in.

OEM Reference

GUOMAT NO. 2B12345
Air Spring 7545 AS-0087-1F 4514
Goodyear#: 2B12-345; 2B12 345; 2B12345
Corrugation type: double
Automann Bellow#: SP2B22RB
Fire stone Air Spring Bellow#: 228C-1.5 is 228-1.5
Goodyear Bellow#:578-92-3-315;578 92 3 315;578923315
Contitech Bellow#: FD 331-26;FD 331 26;FD 33126

Manufacturer Cross OEM Reference	Other Cross OEM Reference
Fire stone Air Spring : W01-358-7545 / W01 358 7545 / W013587545	Triangle Part Number:4514
Fire stone Air Spring Bellows Number:228-1.5 / 228C-1.5	Triangle Bellows Number:6375
Fire stone Air Spring Top Plate Number:3271	Hendrickson Auxiliary : 001796
Fire stone Air Spring Piston Number:3183	(Paralift Ultra/High Lift) - Lift bag
Contitech : FD 331-26 514	Watson&Chalin : AS-0087-1F / AS-0109
Contitech Bellows#: FD 331-26, 64284
Goodyear : 2B12-345 / 2B12 345 / 2B12345
GoodYear Bellows#: 578-92-3-315 / 578 92 3 315 / 578923315

Air Spring Characteristics

Our industrial air springs boast cost-effectiveness, versatility, and user-friendly operation, making them the preferred choice for a wide range of applications.
These springs offer an extended service life, eliminating the need for regular maintenance and lubrication, thus reducing downtime and associated costs.
Engineered for flexibility and durability, our air springs are designed with a strong loading capacity, ease of installation, and a straightforward structure that simplifies maintenance.
Featuring a frictionless and cushioning medium, our air springs provide smooth operation and enhanced performance, ensuring a comfortable and efficient working environment.

The Drawing And Data of GUOMAT 2B12345 Air Spring

Contitech FD 331-26 514 Suspension Air Spring Air Inlet 1/4-18 NPTF Air Bags

Contitech FD 331-26 514 Suspension Air Spring Air Inlet 1/4-18 NPTF Air Bags
