FD 40-10 Contitech Air Bellow Double Convoluted Air Actuator G 1/8 Gas Hole

Name: FD 4010 Contitech Air Bellow Double Convoluted Air Actuator G 18 Gas Hole
Brand: GUOMAT
Price: 1 USD

China FD 40-10 Contitech Air Bellow Double Convoluted Air Actuator G 1/8 Gas Hole wholesale

Brand Name : GUOMAT

Model Number : 2B4010

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangdong, China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : FD 40-10

Brand New : 100%

Screw Tooth : M8X1.25

Type : Gas-Filled

Spring Material : Rubber And Steel

Structure : Double Convoluted

Manufacturer : GUOMAT

Quality : 100% Tested

Contact Now

FD 40-10 Contitech Air Bellow Double Convoluted Air Actuator G 1/8 Gas Hole

Product Information

Top Cover Plate Diameter	90 mm
Screw Center Distance of Top Cover Plate	20 mm
Bottom Cover Plate Diameter	90 mm
Screw Center Distance of Bottom Cover Plate	20 mm
Top Cover Plate Screw(Nut) Tooth	M8×15
Bottom Cover Plate Screw(Nut) Tooth	M8×15
Gas Hole	G 1/8
Rubber Bellow Dia	145 mm
Min. Height	70 mm
Max. Height	170 mm
Total Storke	100 mm

Vibration Isolation-Dynamic Characteristic Values

Pressure P	[bar]	3	4	5	6	7	8	VoI.[I]
Height H(mm)	160	1.1	1.6	2.0	2.4	2.8	3.2	1.2
	140	1.6	2.2	2.8	3.3	3.9	4.5	1.1
	120	2.0	2.7	3.4	4.1	4.8	5.5	0.9
	100	2.3	3.1	4.0	4.8	5.6	6.4	0.7
	80	2.6	3.5	4.5	5.4	6.3	7.1	0.6

Double Convoluted Type Air Spring Other OEM Number

FD 40-10 CI	FD 70-13 CI
FD 110-15 CI	FD 120-17 CI
FD 120-20 CI	FD 200-19 CI
FD 200-22 CI	FD 200-25 CI
FD 330-22 CI	FD 330-30 CI
FD 530-22 CI	FD 530-22 CI
FD 530-30 CI	FD 530-35 CI
FD 960-22 CI	FD 1330-25 CI

Support and Services

Buy Norgren 2B4010 at the best prices and delivery conditions at suspensionairspring.com, which is a factory that has been engaged in the production of air springs for 18 years. We offer a large list of industrial automation products. We deliver our products to every country with the shortest deadlines. Buy original products of many brands from the GUOMAT company with guaranteed quality. We always answer customer queries quickly. With us, you will be able to get rid of cooperation with many suppliers, which greatly speeds up and facilitates your work.

FAQ

Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, you can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.

Q: When will make delivery ?
A: Delivery time is 3-8woring days.

Q: After-sales service?
A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

Q: What's your transportation?
A: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight.

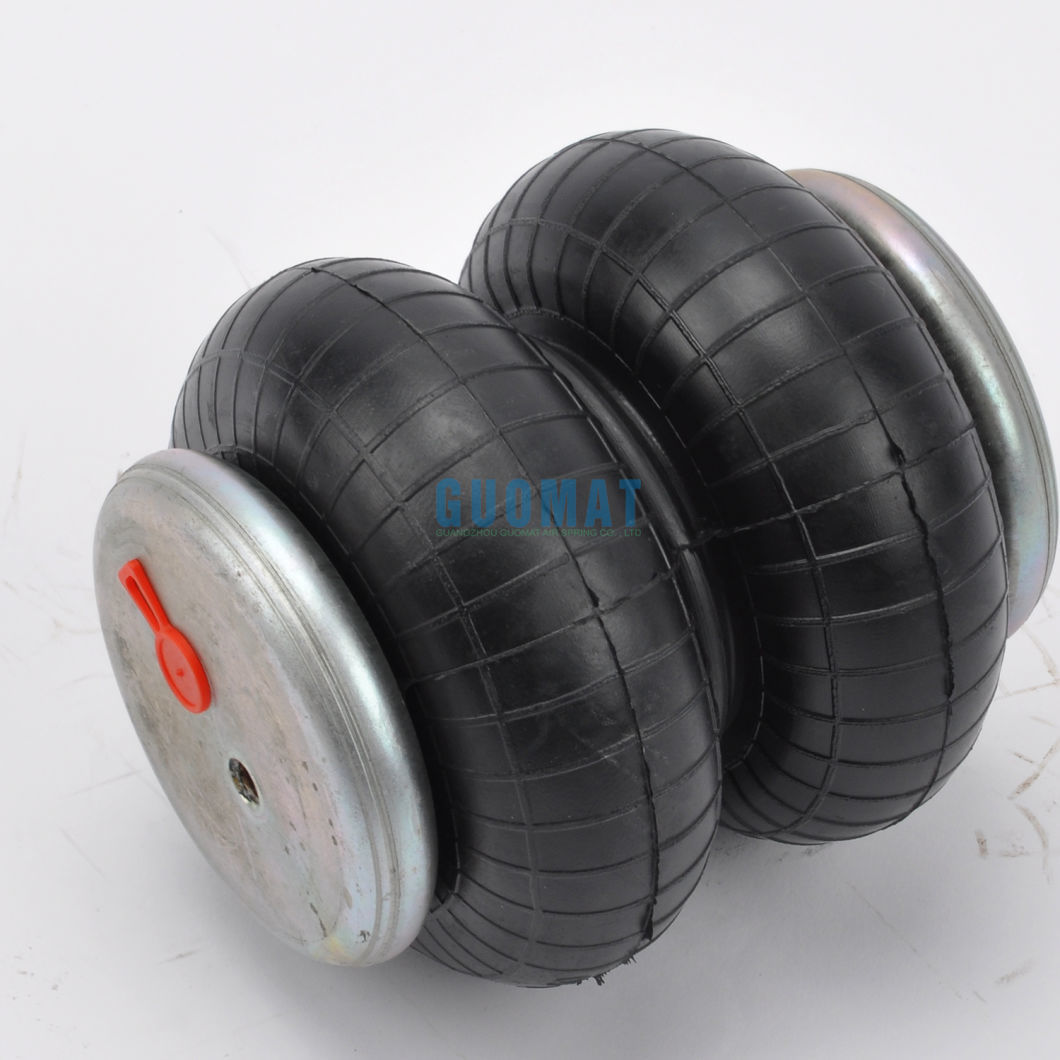

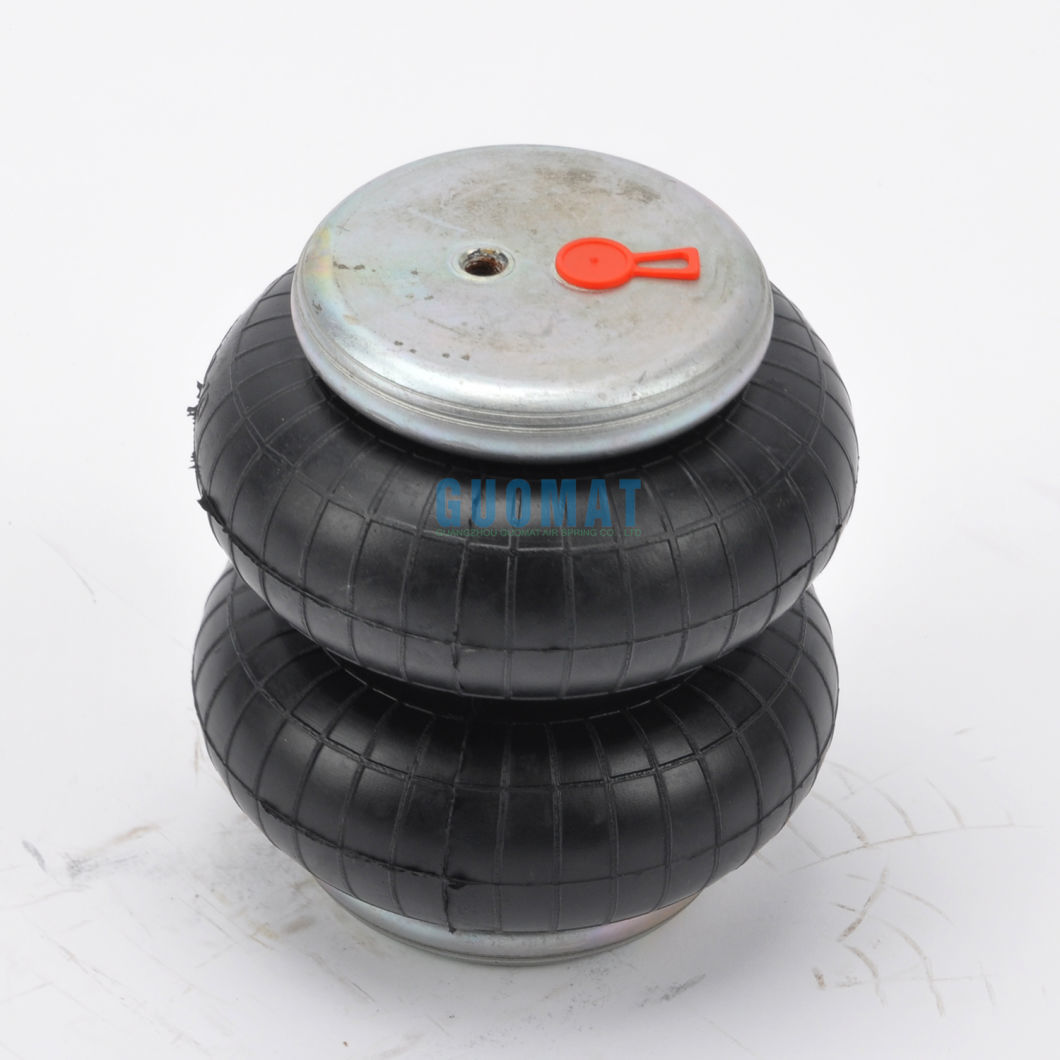

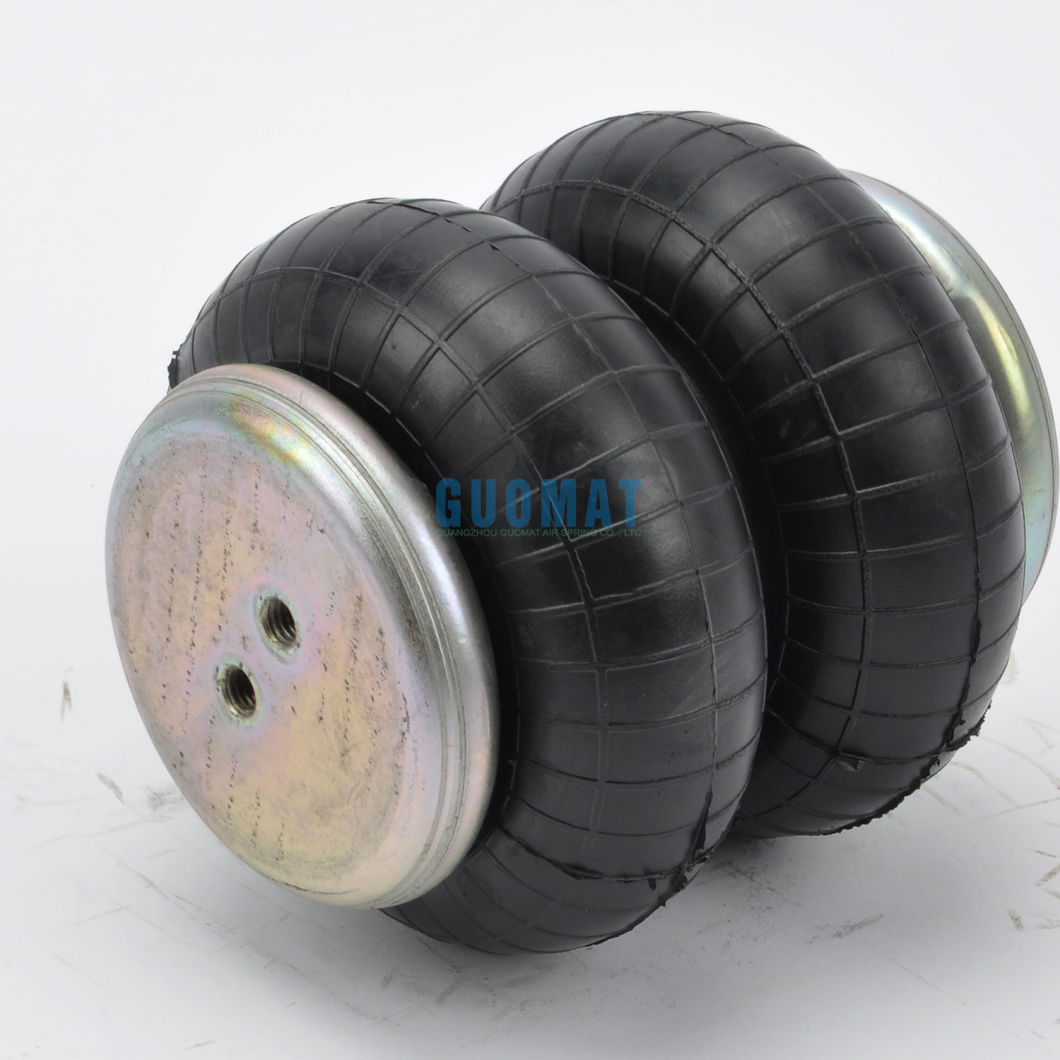

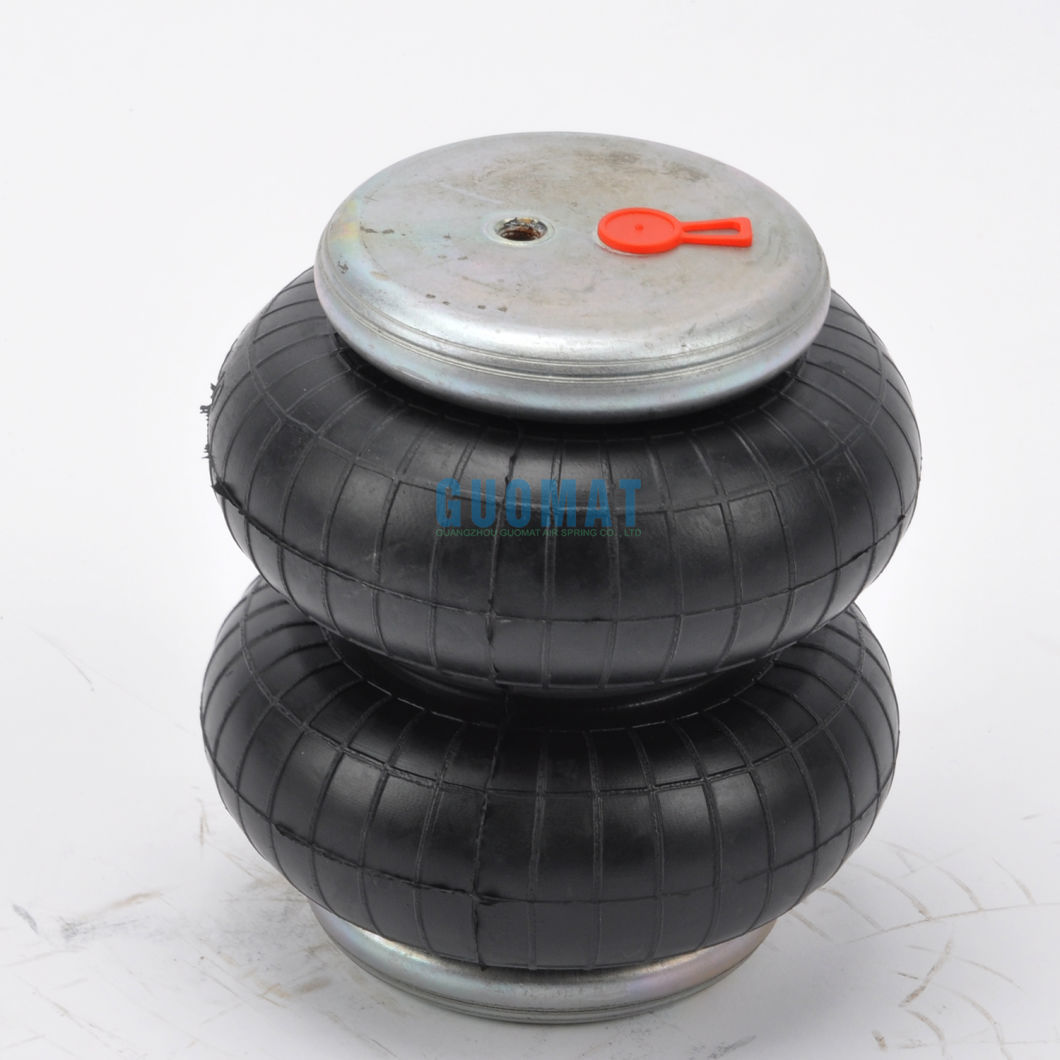

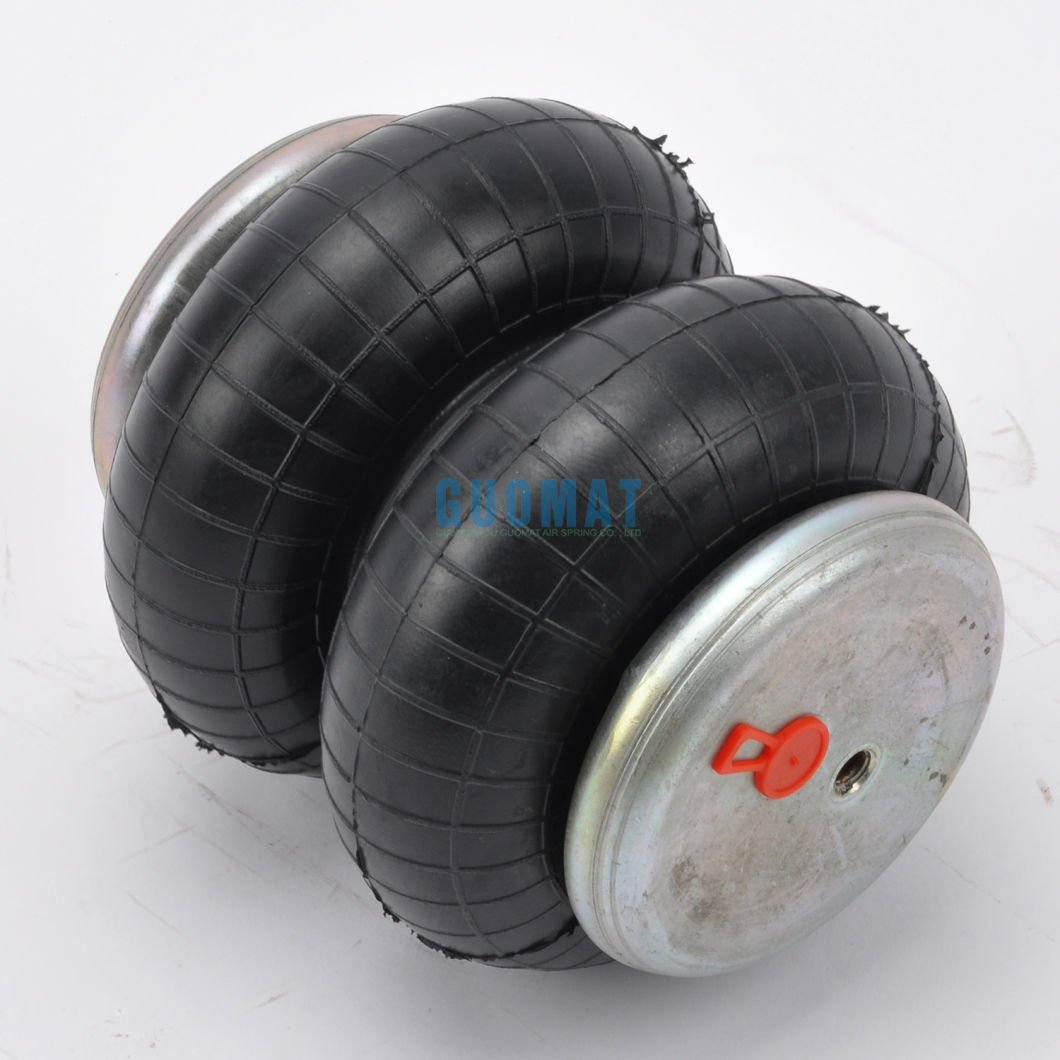

2B4010 Real Photos
