New Firestone W21-760-0335 Air Bag Double Convoluted Air Suspension A01-760-0335
Product Information
| Top Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Screw Center Distance of Top Cover Plate | 70 mm |
| Bottom Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Screw Center Distance of Bottom Cover Plate | 70 mm |
| Gas Hole / Air inlet | 3/8NPTF |
| Top Cover Plate Diameter (Width) | 132 mm |
| Bottom Cover Plate Diameter (Width) | 132 mm |
| Rubber Bellows Natural Diameter | 203mm |
| Rubber Bellows Natural Height | 180 mm |
| Working Stroke | 75MM-230MM |
| With Girdle Hoop | One Piece of Girdle Hoop |
GUOMAT: 2B0335 Cross others OEM
W21-760-0335, W21 760 0335, W217600335
A01-760-033, A01 760 033, A01760033
2B0335
Prodct Applications
Air Springs are a type of suspension system that uses compressed air as a cushioning medium. They are commonly used in various applications, including vehicles, heavy machinery, and industrial equipment. Here are some of the key features and functions of air springs:
1. Adjustable Load Capacity: Air springs can be easily adjusted to accommodate different load capacities. This makes them suitable for vehicles that carry varying loads, such as buses, trucks, and trailers.
2. Comfortable Ride: The use of compressed air as a cushioning medium provides a smooth and comfortable ride. This is especially beneficial for long journeys and for vehicles that travel over rough terrain.
3. Improved Stability: Air springs help improve the stability of a vehicle by absorbing shocks and vibrations. This is particularly important for heavy vehicles, as it helps prevent excessive bouncing and rolling.
4. Space-saving Design: Air springs have a compact design that takes up less space than traditional coil springs. This makes them suitable for use in vehicles with limited space, such as buses and trucks.
5. Easy Installation and Maintenance: Air springs are relatively easy to install and maintain. They do not require special tools or equipment, and can be easily replaced if they become worn or damaged.
6. Longevity: Air springs are designed to be durable and long-lasting. With proper maintenance, they can provide reliable performance for many years.
7. Versatility: Air springs can be used in a wide range of applications, from passenger vehicles to heavy machinery. They are also available in various sizes and shapes to suit different needs.
In summary, air springs offer a number of benefits, including adjustable load capacity, comfortable ride, improved stability, space-saving design, easy installation and maintenance, longevity, and versatility. These features make them a popular choice for a wide range of applications.

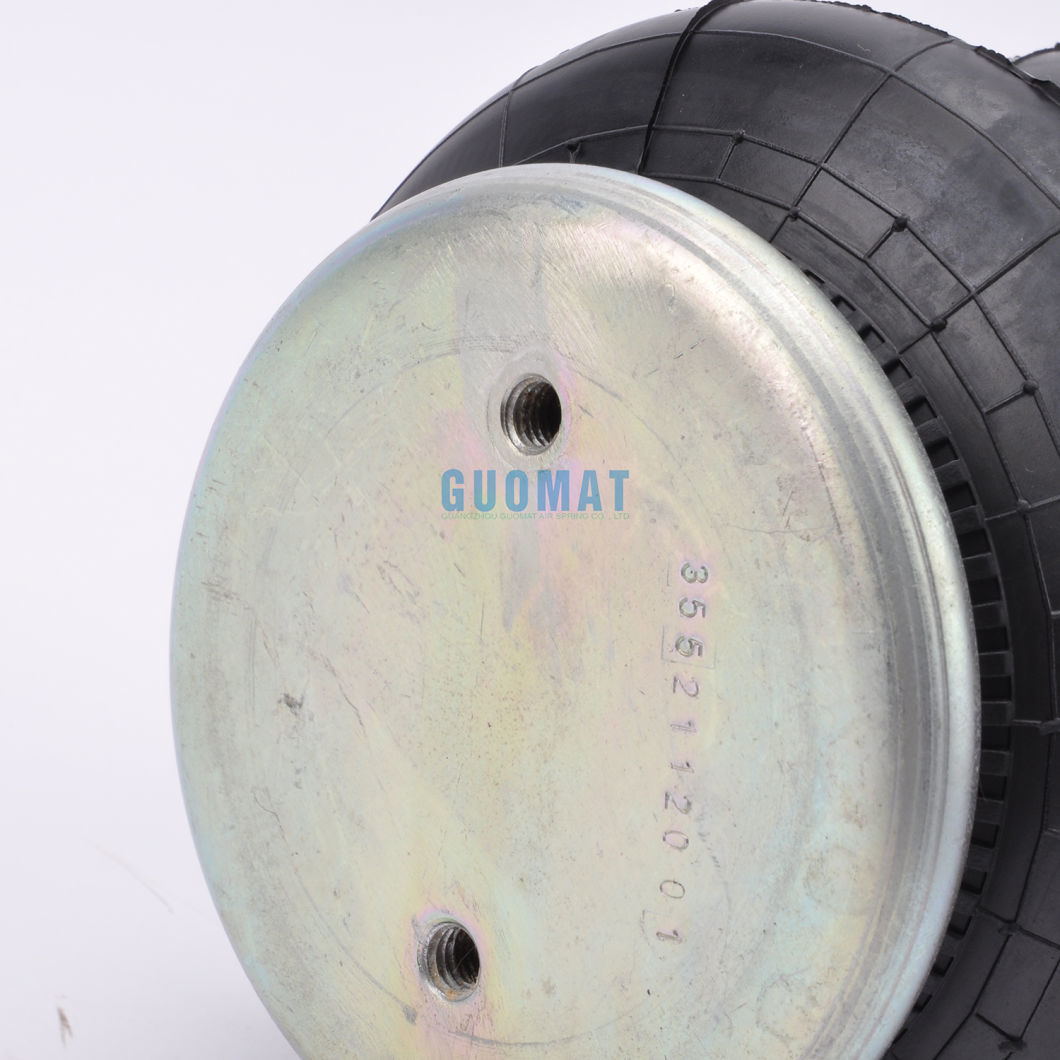

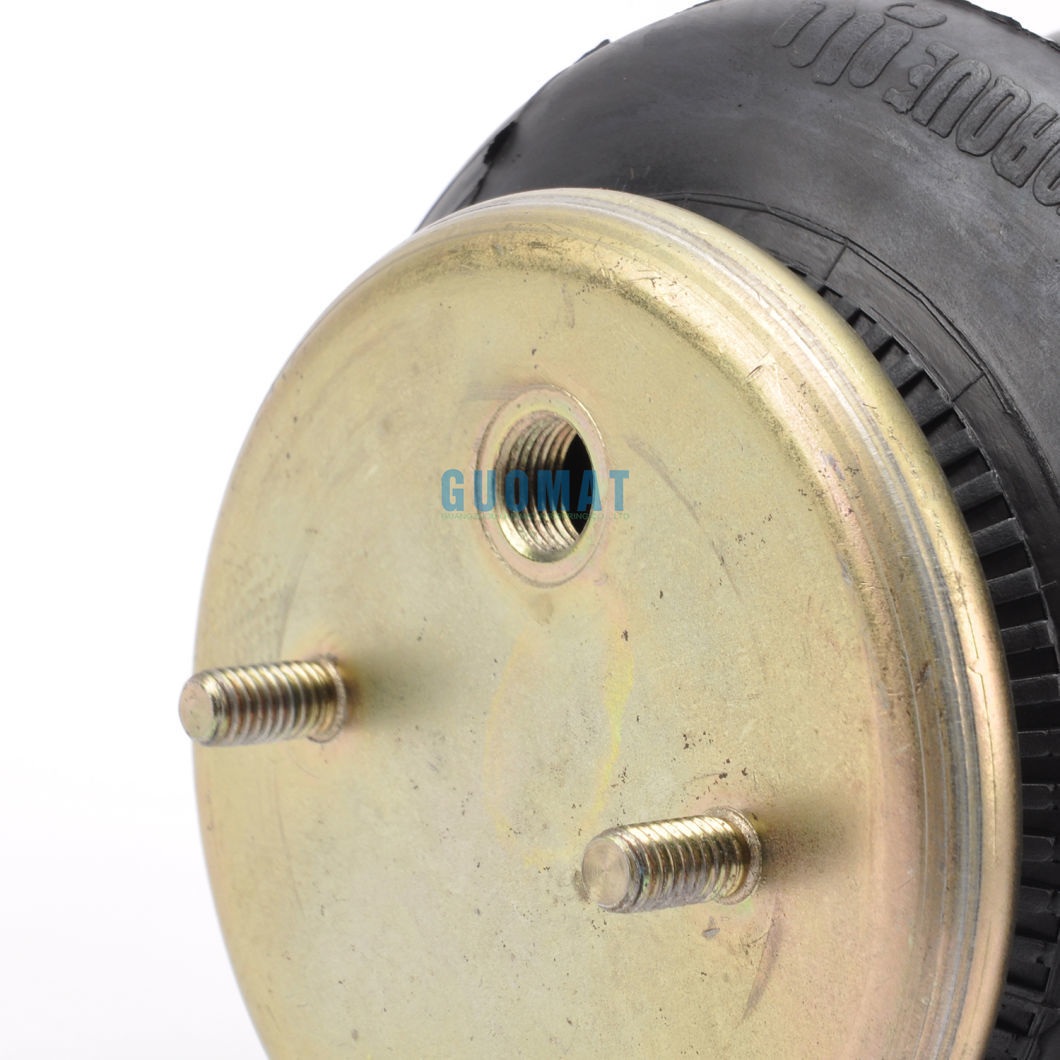

The Real Picture
