FS70-7 Contitech Air Spring Rubber Bellows Only For Pneumatic Lifts Air Suspension
Product Information
Cover Plate
Top Cover Plate Diameter: 4.25 in.
Screw Center Distance of Top Cover Plate: 1.75 in.
Bottom Cover Plate Diameter: 4.25 in.
Screw Center Distance of Bottom Cover Plate: 1.75 in. |
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×3/8 UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8 UNC |
Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/4 NPT |
Rubber Bellow
Rubber Bellow Max Dia: 6.50 in.
Installation Space Required: 7.09 in.
Minimum Height: 2.0 in.
Maximum Height: 4.5 in. |
Product Details
| GUOMAT | 1B7070 |
| Contitech | FS70-7/FS 70-7/FS707 |
| Fire stone | W01-358-7731/W013587731/W01 358 7731 |
| Phoenix | SP1B05/SP 1 B 05/SP 1B 05 |
| Fes-to | EB-165-65/EB 165 65/EB16565 |
| Weforma | WBE 200-E1/WBE200-E1 |
Single Convoluted Rubber Bellows Technical Data
| Item Code | Max Dia (mm) | Max Stroke (mm) | Min Height (kN) | Max Height (kN) | Gas Hole |
| FS 40-6 CI | 145 | 60 | 6.9 | 2.4 | G 1/8 |
| FS 50-5 CI | 150 | 44 | 9.0 | 2.2 | G 1/4 |
| FS 70-7 CI | 165 | 64 | 9.9 | 5.2 | G 1/4 |
| FS 100-10 CI | 210 | 94 | 14.7 | 1.6 | G 3/4 |
| FS 120-9 CI | 215 | 85 | 17.7 | 6.6 | G 3/4 |
| FS 120-10 CI | 231 | 99 | 19.5 | 4.6 | G 3/4 |
| FS 120-12 CI | 235 | 119 | 18.7 | 7.2 | G 3/4 |
| FS 200-10 CI | 250 | 89 | 23.8 | 9.1 | G 3/4 |
Advantageous Features of Air Suspension
1. shock absorption effect is better, can effectively improve the comfort of the whole car
The airbag in the air suspension system has variable stiffness characteristics, which can rapidly reduce the vibration of the vehicle driving process and improve the ride comfort of the vehicle. In the glass, precision instruments and other goods transportation with high requirements for shock absorption, the advantages of airbag suspension are especially obvious.
2. Effectively reduce fuel consumption, improve economic efficiency
Air suspension reduces fuel consumption mainly in two aspects, the first aspect is that when the vehicle equipped with air suspension in the unloaded state, the axle can be lifted up to reduce friction, thereby reducing fuel consumption, the other aspect relies on the airbag has a good shock absorption, in the bumpy sections of the air suspension models can be effective in reducing the frequency of gear shifting and acceleration and deceleration, thereby reducing fuel consumption.
3. Protect the vehicle's own parts, extend the life of the vehicle
The air suspension system can effectively reduce the impact vibration on the body caused by the uneven road surface through the vibration isolation of the airbag, thus improving the service life of the chassis and body electrical system.
4. Facilitate dumping transportation, effectively improve the transportation efficiency
When the tractor equipped with air suspension in the dumping transportation, can be adjusted through the height of the airbag to quickly realize the off-hanging, pick hanging, improve the efficiency of transportation.
5. Facilitate the loading and unloading of goods on platforms of different heights.
Different platforms in different yards have height differences, when the vehicle equipped with air suspension docking loading and unloading platform, you can adjust the height of the airbag according to the different height of the platform, thus adjusting the height of the vehicle body, and facilitating the realization of rapid loading and unloading of goods.
6. Extend the service life of tires and help road surface protection
Air suspension can effectively reduce the impact between the tires and the road surface, reduce tire wear, but also reduce the impact of the load on the road surface, can increase the effective protection of the road surface, reduce road maintenance costs.
7. Good safety performance
Because the air suspension compared to the plate spring suspension vibration frequency is reduced, so the vehicle tire adhesion will be effectively enhanced, thereby reducing wheel slip, effectively improve the starting ability in the low adhesion coefficient on the road, and then improve the safety of vehicle driving.
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
Packaging & Shipping
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.
Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

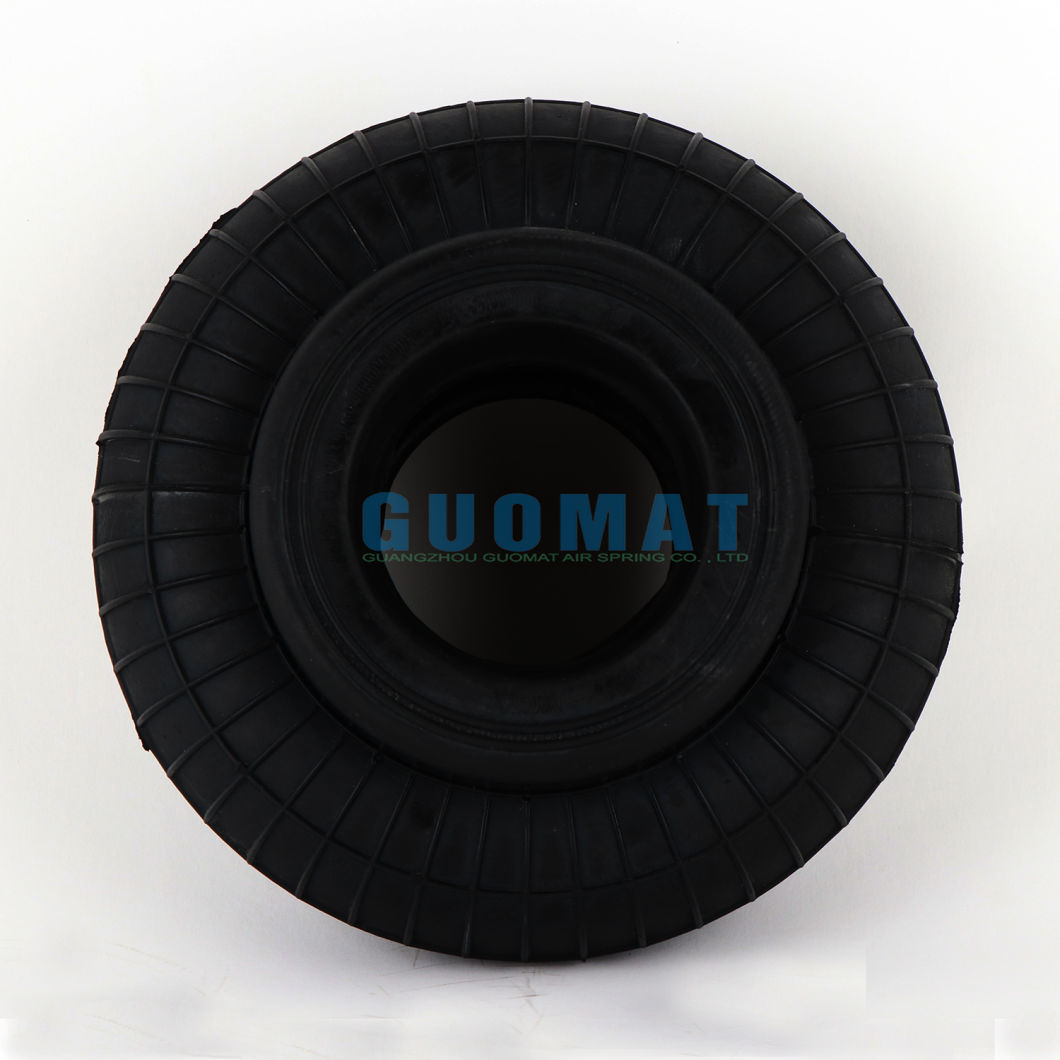

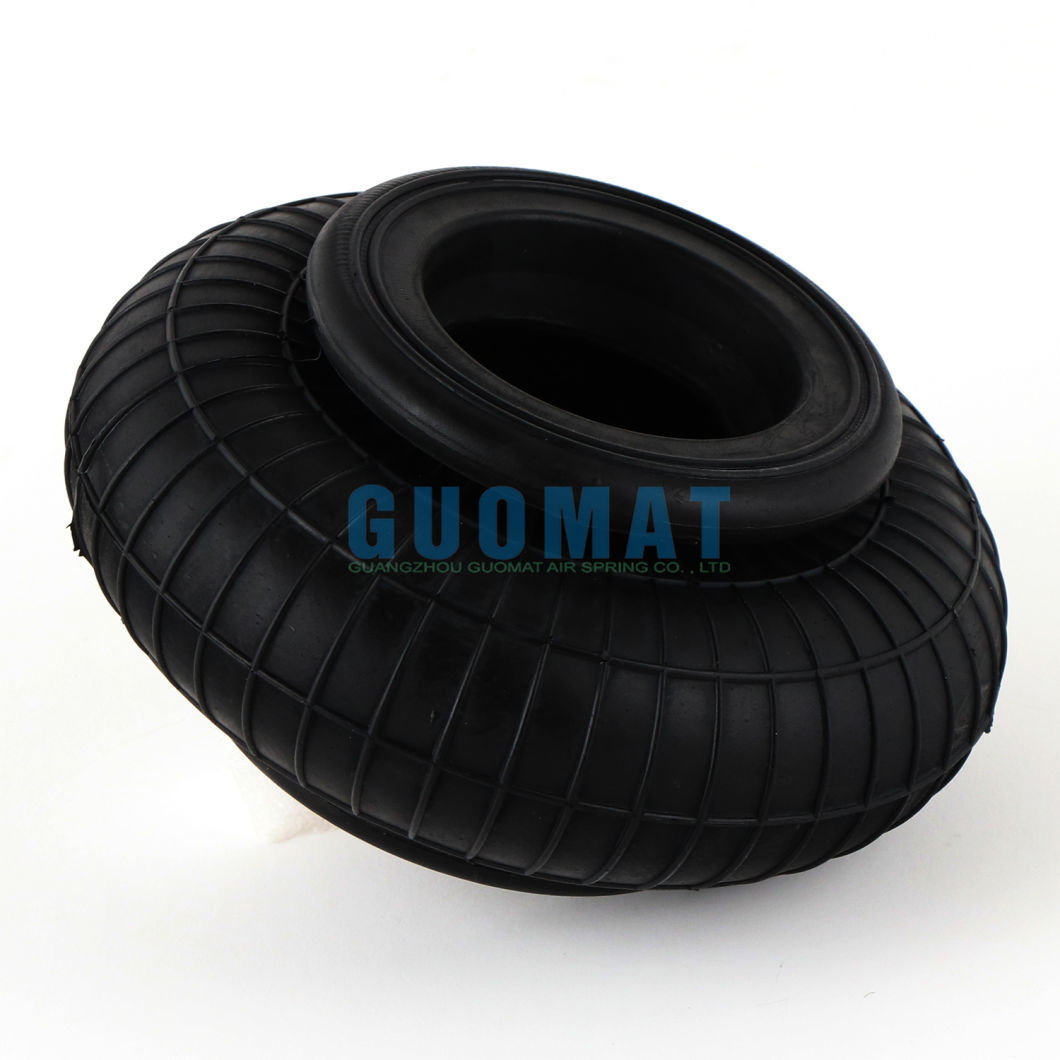

Product Images
