Firestone W01-358-7564 Air Spring Suspension Cross Contitech FS120-10 Air Shocks
Product Parameters
Cover Plate
Top Cover Plate Diameter : 135mm
Bottom Cover Plate Diameter : 135mm
Nut/ Blind Nut
Top Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Top Cover Plate : 70mm
Bottom Cover Plate Screw(Nut) Tooth : 2x3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70mm
Gas Hole/Air Inlet/Air Fitting
Gas Hole : 1/4 NPTF
Rubber Bellow
The Rubber Bellow MAX Diameter : 230mm
The Working Stroke : MAX 140mm To MIN 50mm
Maximum Height : 140mm
Minimum Height : 50mm
Compression Height : 90mm
Style 116, We Can Supply
| Blind nuts, 1/4 NPT | W01-358-7564, W013587564, W01 358 7564 WO1-358-7564, WO13587564, WO1 358 7564 |
| Blind nuts, 3/4 NPT | W01-358-7561, W013587561, W01 358 7561 WO1-358-7561, WO13587561, WO1 358 7561 |
| Countersunk steel bead rings, 13/4 bolts, nuts, washers | W01-358-7568, W013587568, W01 358 7568 WO1-358-7568, WO13587568, WO1 358 7568 |
| Blind nuts with installed 1/4 tank valve | W01-A72-7518, W013587518, W01 358 7518 WO1-358-7518, WO13587518, WO1 358 7518 |
| Rubber bellows only | W01-358-0133, W013580133, W01 358 0133 WO1-358-0133, WO13580133, WO1 358 0133 |
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.
Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.

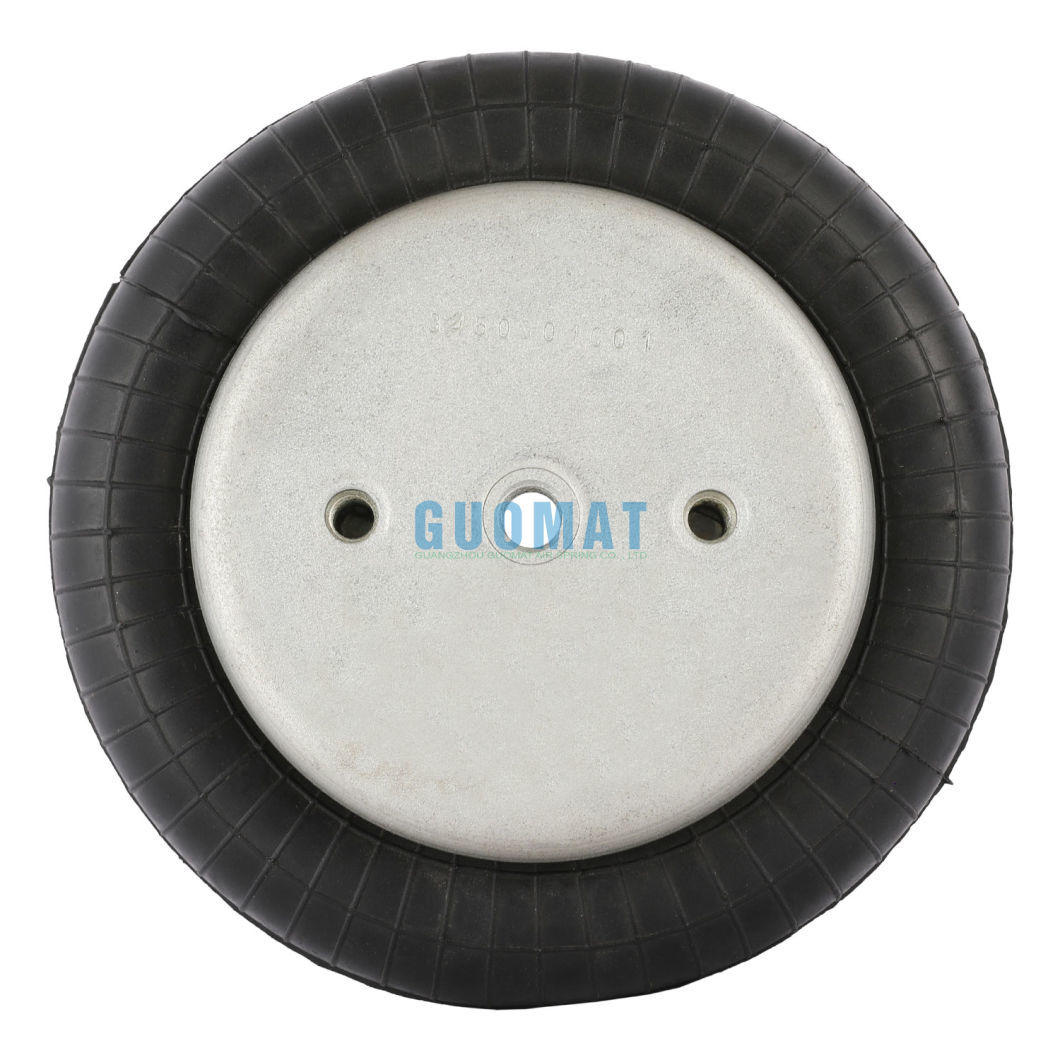

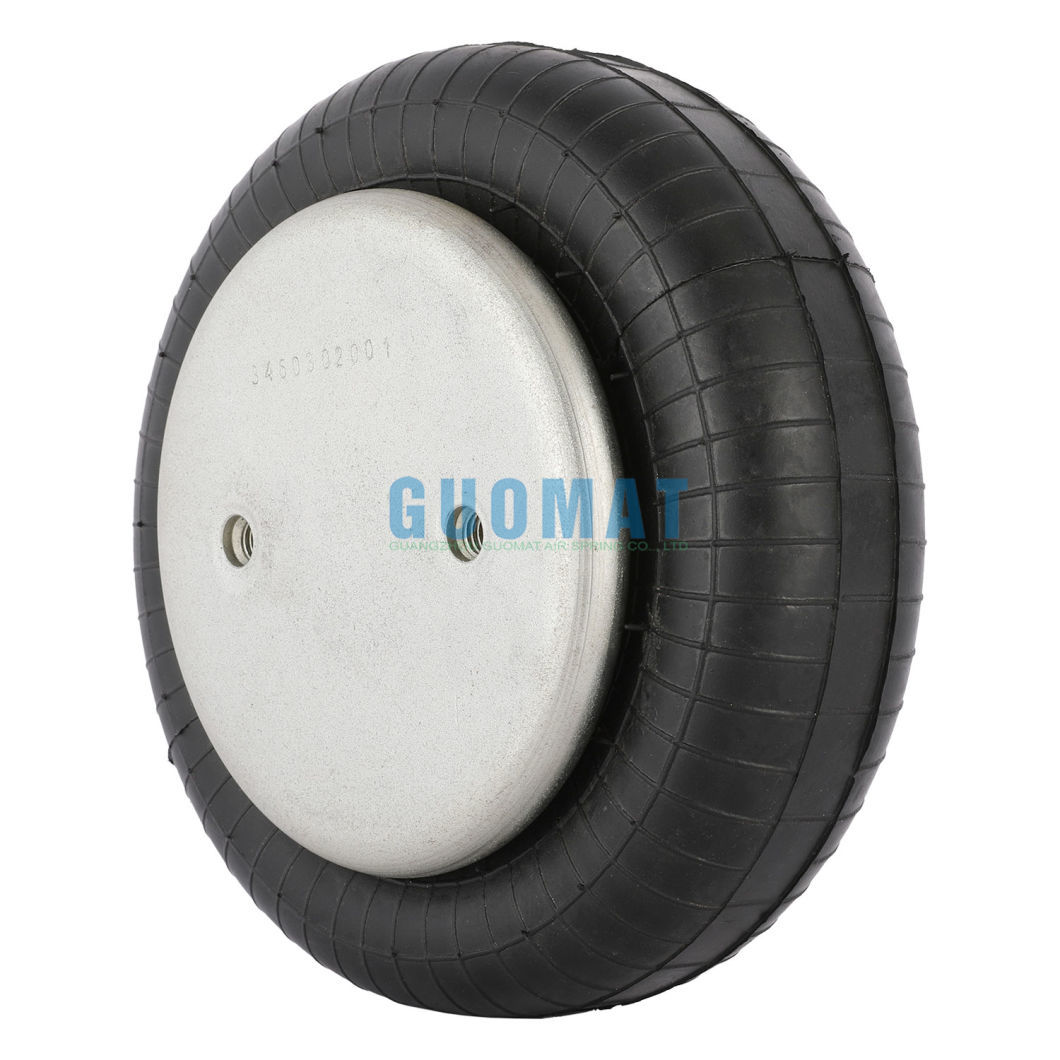

Detailed Photos
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
Factory workshop
