1B8X4 Firestone Air Spring W01-358-7564 Single Rubber Convoluted Air Actuators

Name: 1B8X4 Firestone Air Spring W013587564 Single Rubber Convoluted Air Actuators
Brand: GUOMAT
Price: 49.9 USD

China 1B8X4 Firestone Air Spring W01-358-7564 Single Rubber Convoluted Air Actuators wholesale

Brand Name : GUOMAT

Model Number : 1B8X4

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangzhou China

MOQ : 5pcs

Price : USD49.9-59.9/PC

Payment Terms : L/C, T/T, Western Union Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Fuction : Reduce Shock

Key : Firestone W01-358-7564

HS Code : 8708809000

Warranty : 12 Months

Type : Gas-Filled

Goodyear : 1B8-550

Max.Diameter : 230mm

Stroke Height : 50mm-140mm

Contact Now

1B8X4 Firestone Air Spring W01-358-7564 Single Rubber Convoluted Air Actuators

Refer No.

Cross reference No.

Firestone.W01-358-7564
Firestone. W01 358 7564
Firestone. W013587564

Goodyear : 1B8-550
Goodyear : 1B8 550
Goodyear : 1B8550

Contitech : FS120-10
Contitech : FS120 10
Contitech : FS12010

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B8×4

Nut/blind nut

Top plate screw (nut) teeth: 2×3/8-16UNC
The screw center distance of the top cover plate: 70mm
Screw (nut) teeth of the bottom cover plate:2×3/8-16UNC
The screw center distance of the bottom cover plate: 70 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF
The distance between the air hole and screw: 35mm

Cover plate

Top plate diameter: 135mm
Diameter of the bottom cover: 135mm

Bell rubber bellows

Rubber Bellow Diameter: 200mm
Max. OD: 230mm
Stroke: from 50mm to 140mm

Bumper block/bumper block

No bumper block

Belt loop/Belt loop

Without belt loop

Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.0kg

Vibration isolation - dynamic characteristic values
Design Height H: recommended 110mm, minimum 90mm

Pressure p[bar]	3	4	5	6	7	8	Vol. V[l]
Force(Load) [KN]	3.9	5.3	6.8	8.3	9.6	10.9	1.8
Spring rate [N/cm]	1335	1620	1925	2230	2535	2840
Natural frequency [Hz]	2.9	2.8	2.7	2.6	2.6	2.6

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	120	3.1	4.3	5.6	6.9	8.0	9.2	1.9
	110	3.9	5.3	6.8	8.3	9.6	10.9	1.8
	100	4.5	6.1	7.9	9.7	11.0	12.4	1.7
	90	5.0	6.8	8.9	10.8	12.2	13.8	1.5
	80	5.5	7.4	9.7	11.6	13.3	15.0	1.3
	70	5.9	7.9	10.3	12.3	14.2	16.0	1.1
	60	6.3	8.2	10.7	13.0	15.0	17.0	0.9

Firestone Style 116 Convoluted Air Spring

Description		Assembly Order No.
Style 116	Blind nuts, 1/4 NPT	W01-358-7564
Style 116	Blind nuts, 3/4 NPT	W01-358-7561
Two Ply Bellows	Countersunk steel bead rings,13/4 bolts, nuts, washers	W01-358-7568
	Blind nuts with installed 1/4 tank valve	W01-A72-7518
	Rubber bellows only	W01-358-0133

Plate diameter: 5.31 in / 135 mm
Maximum stroke: 4 in / 101 mm
Maximum height: 6 in / 152 mm
Min. height: 2 in / 51 mm
Air connection: 1/4 NPT
Bellows material: NR
Mounting thread: 2x3/8-16 UNC
Style: 116
Min./max. temperature range: - 40°C / +70°C
Recommended maximum working height: 5.1 in / 130 mm
Max. diameter: 5.31 in / 231 mm max. load: 3.41 psi / 16.55 kN

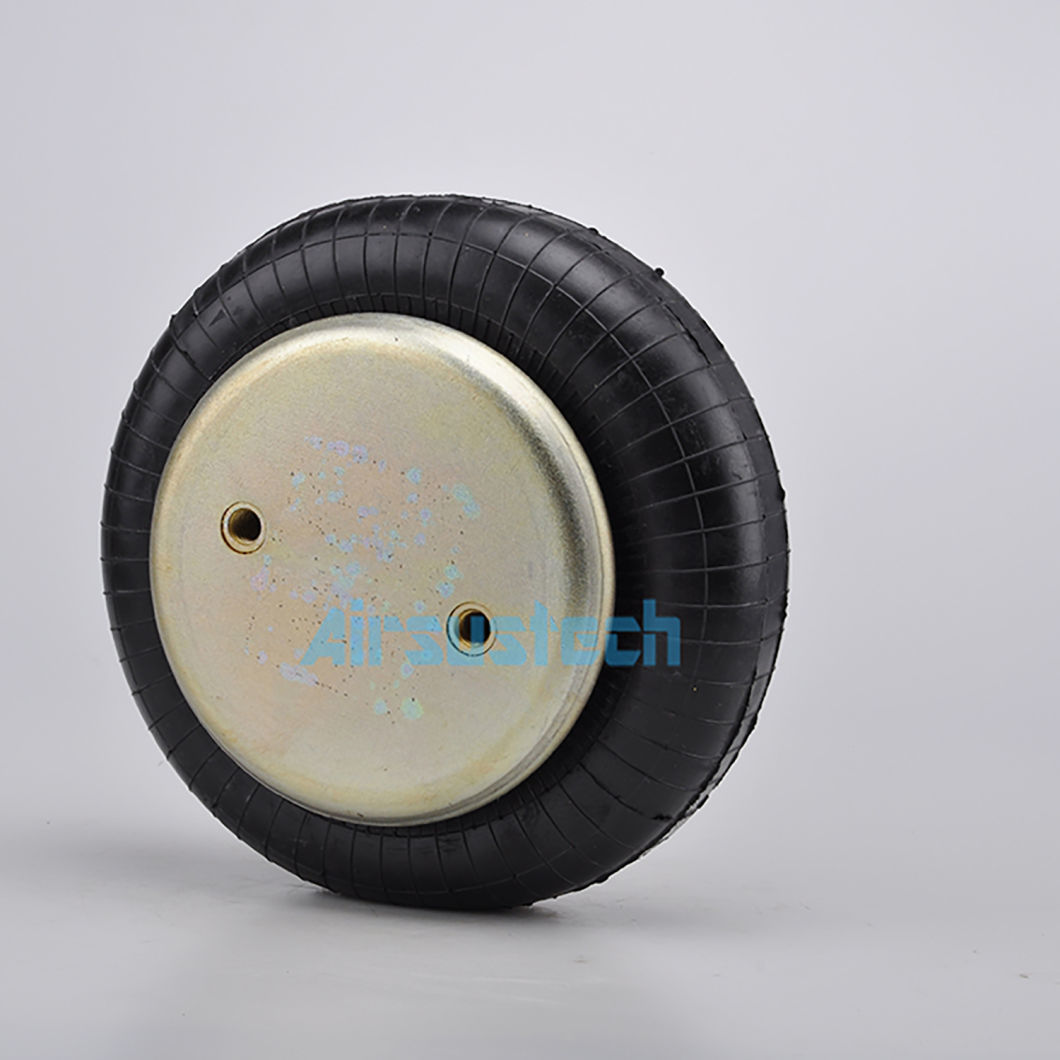

The related picture of 1B8×4
