Brand Name : GUOMAT
Model Number : 3B7386
Certification : ISO/TS16949:2009
Place of Origin : Guangzhou,China
MOQ : 5pcs
Price : USD69.9-79.9/PC
Payment Terms : L/C, T/T, Western Union Or Others
Supply Ability : 1000PCS/Week
Delivery Time : 3-7 Working Days
Packaging Details : Strong Carton Box or as Customers Requirement
Type : Suspension Air Spring
N.W. : 8.5 Kg
Bumper : with
Air Inlet : 3/4NPT
Bottom Plate Hole/Stud : 4X3/8-16unc
Bottom Plate Dia : 289 mm
Specification : 38*38*22 cm
Material : Rubber and Iron
Triple Convoluted Air Bag GUOMAT NO. 3B7386 Bellow No.3B383 Industrial Air Spring 4x3/8-16UNC Screw
3B7386 Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC
Screw Center Distance of Top Cover Plate : 159mm
Bottom Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 NPT
Cover Plate
Top Cover Plate Diameter: 289 mm
Bottom Cover Plate Diameter: 289 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 405 mm
Rubber Bellows Natural Diameter :353 mm
The Working Stroke : MAX 460 mm to MIN 110 mm
Maximum Height : 460 mm
Minimum Height :110 mm
Compression Height : 350 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
Pneumatic application - static eigenvalue force F [kN]
pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | vol V[l] |
height H [mm]
| 380 | 17.7 | 23.8 | 30.0 | 36.4 | 42.9 | 49.1 | 31.0 |
300 | 21.3 | 28.4 | 36.1 | 43.4 | 50.7 | 58.0 | 25.4 | |
220 | 24.3 | 32.3 | 40.4 | 48.5 | 56.6 | 64.6 | 19.4 | |
140 | 27.3 | 36.3 | 45.4 | 54.5 | 63.4 | 72.0 | 12.4 |
![]() |

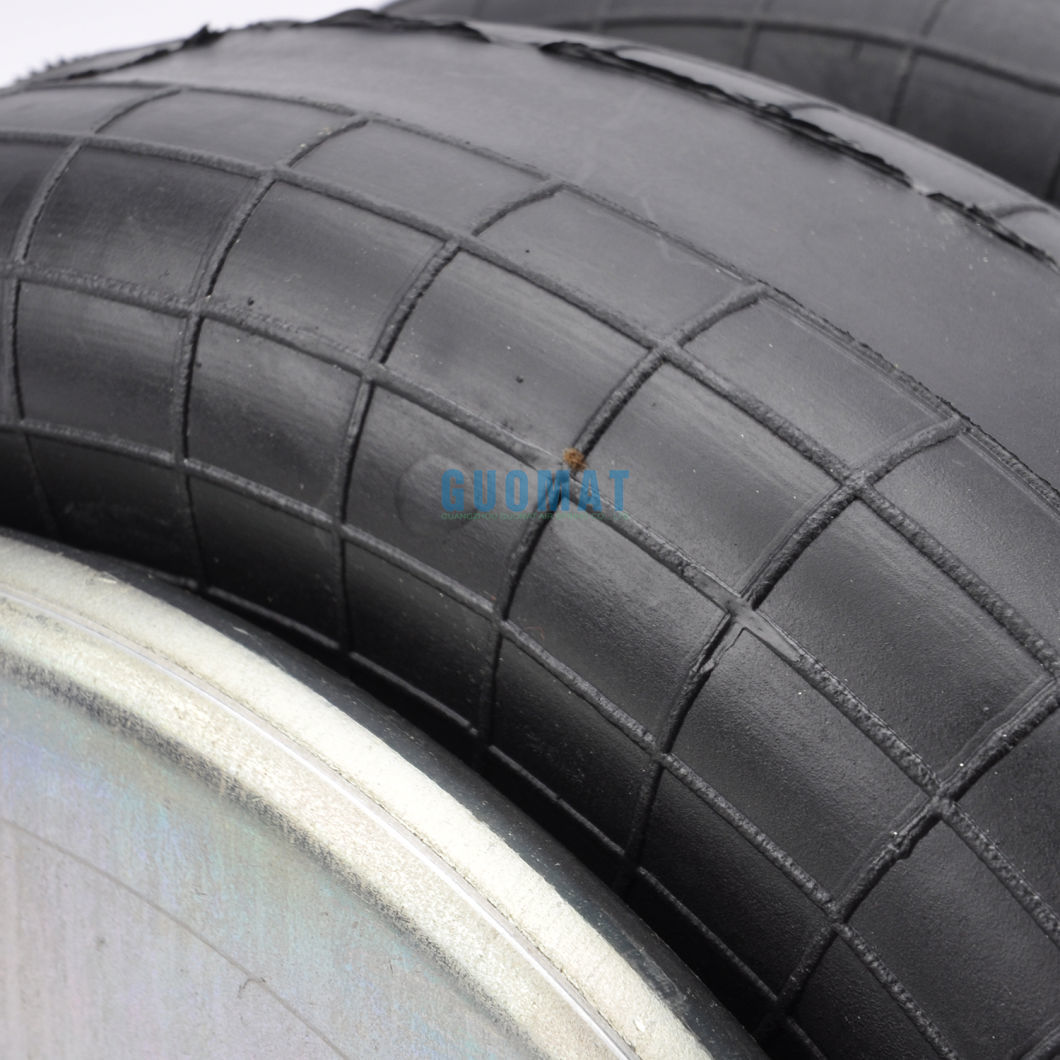

Triple Convoluted Air Bag GUOMAT NO. 3B7386 Bellow No.3B383 Industrial Air Spring 4x3/8-16UNC Screw Images |
