Contitech FS 40-6 1/8M8 Phoenix SP1B04 Air Suspension Single Bellow Airbag
Company Introduction
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump Cover Plate

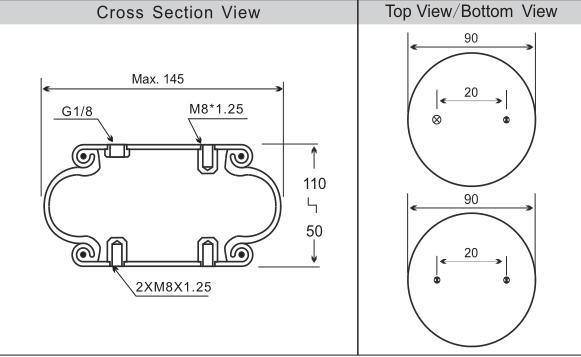

Top Cover Plate Diameter: 90 mm
Bottom Cover Plate Diameter: 90 mm
Air Inlet/Gas Hole
Air Inlet:G1/8
Blind Nut
Top Cover Plate Screw(Nut)Tooth:1XM8X1.25
Bottom Cover Plate Screw(Nut)Tooth:2XM8X1.25
Distance Between Air Hole And Screw of Top Cover Plate:20mm
Screw Center Distance of Bottom Cover Plate:20mm
Rubber Bellow
Rubber Bellow MAX Diameter:145mm
The Woring Stroke :MAX 110 mm to MIN 50mm
Maximum Height:110mm
Minimum Height:50mm
Technical Data | Min. pressure 0 bar |
| Return force to min. height ≤ 120 N |
| Overall weight with clamped plates 0.9 kg |
Cross Reference
Contitech:FS 40-6 1/8 M8
Phoenix:SP1B04
Weforma:WBE100-E1
Packing & Shipping
1. For small orders those in stock, we usually deliver in 2-8 working days after your payment.
2. While for those out of stock,it depends,we will inform you by email once you inquire.
3. Our payment terms : L/C , T/T, Western Union,Paypal
4. Freight may vary depending on specific weight, volume, and address, please check with us for the exact freight.

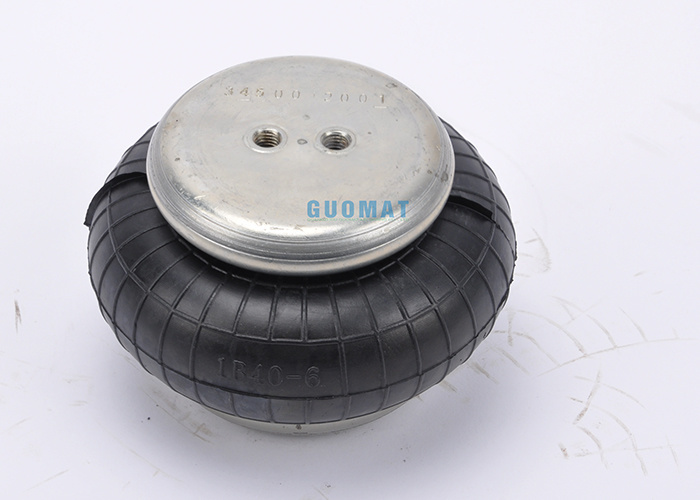

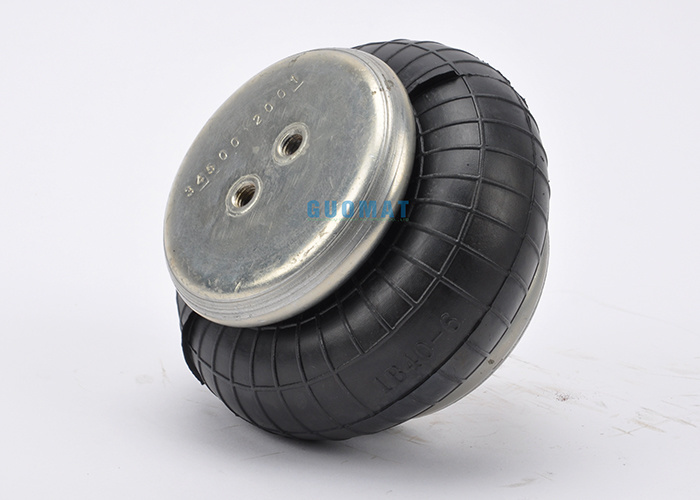

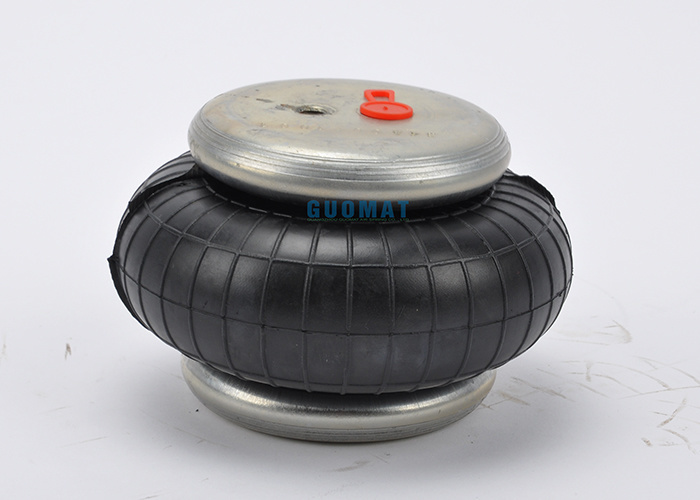

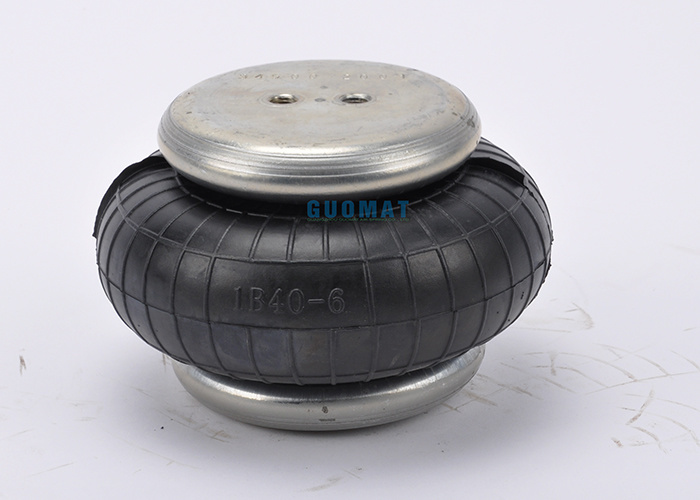

Product Image
