16"X2 Industrial Air Spring Shocks GUOMAT NO. FL320166-2 With MAX diameter 430 mm
16X2 Data:
16X2 AIRSPRING
LOBES: 2
ø MAX: 430
STATIC HEIGHT: 180 MM
TOTAL STROKE: 243 MM
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT: 6.12 LBS
DIMENSIONS: 16" X 16" X 4"

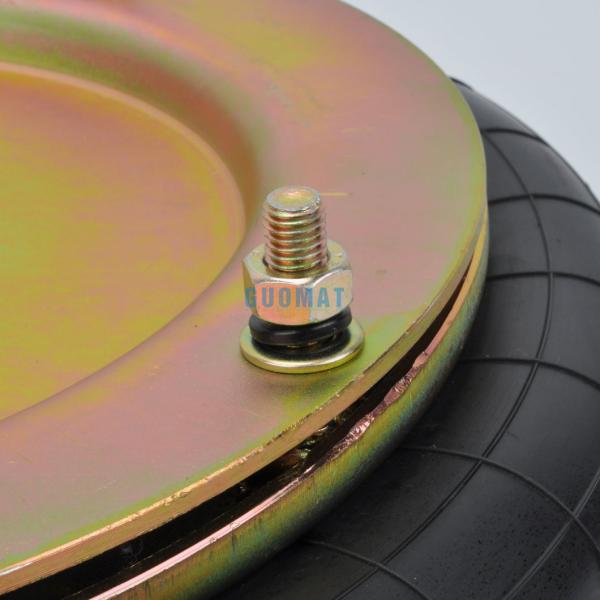

Nut/ Blind Nut
Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 282 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 282 mm
air hole / air inlet / air connector
Air vent / air inlet: G1 / 2
cover plate
Top cover diameter (width): 310MM
Bottom cover diameter (width): 310MM

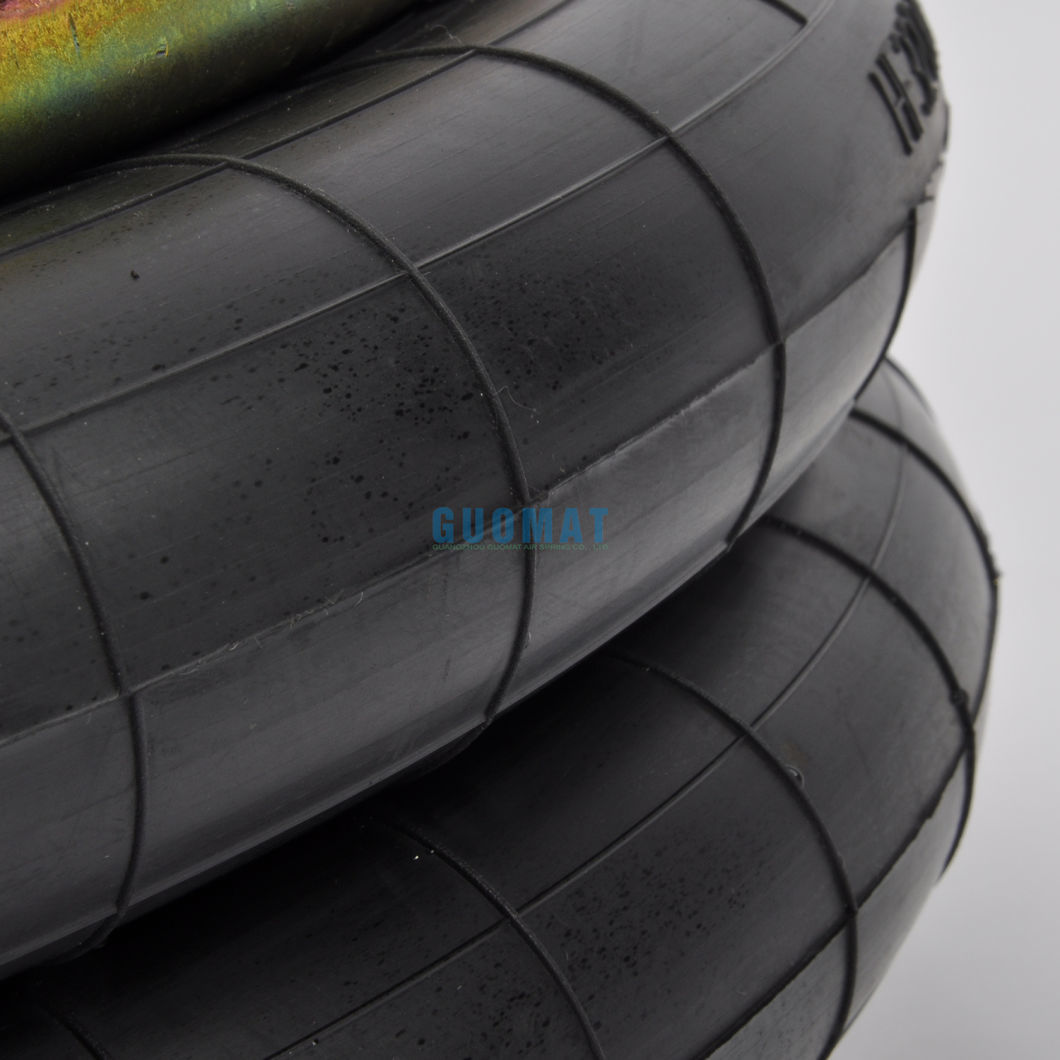

Rubber bellows
Rubber bellows MAX diameter: 430 mm
Working stroke: 77 MM- 320 MM
Maximum height: 320 MM
Minimum height (compression height): 77 mm
Stroke height: 155 mm
bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
FL320166-2 Air Spring Cross Reference Number
| Firestone | W01R584067 , W01-R58-4067 , W01 R58 4067 |
| Firestone | WO1R584067 , WO1-R58-4067 , WO1 R58 4067 |
| Contitech | FD 816-30 DS , FD 816-30 , FD816-30 DS |
| Norgren | M/31162 , M31162 , M 31162 |
| Dunlop | SP1557 , SP 1557 , 16X2 , 16''X2 |
FD816-30 DS Contitech Air Spring Shock
| Type | Order No. |
| Rubber bellows only | |
| With dismountable plates,G1/2 air inlet | |
Pneumatic Application – Static Characteristic Values
Force F [kN]
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H [mm] | 350 | 12.6 | 17 | 21.9 | 26.5 | 31.5 | | 30 |
| 300 | 17.6 | 23.9 | 29.9 | 36 | 42.4 | 48.7 | 27 |
| 250 | 21.5 | 28.9 | 36.2 | 43.3 | 51 | 58.4 | 24 |
| 200 | 25.5 | 34.4 | 43 | 51.4 | 60.5 | 69.3 | 19 |
| 150 | 29.2 | 39.2 | 49 | 58.5 | 68.7 | 78.5 | 15 |
| 100 | 31.2 | 41.8 | 52.3 | 62.2 | 73 | 83.3 | 11 |
