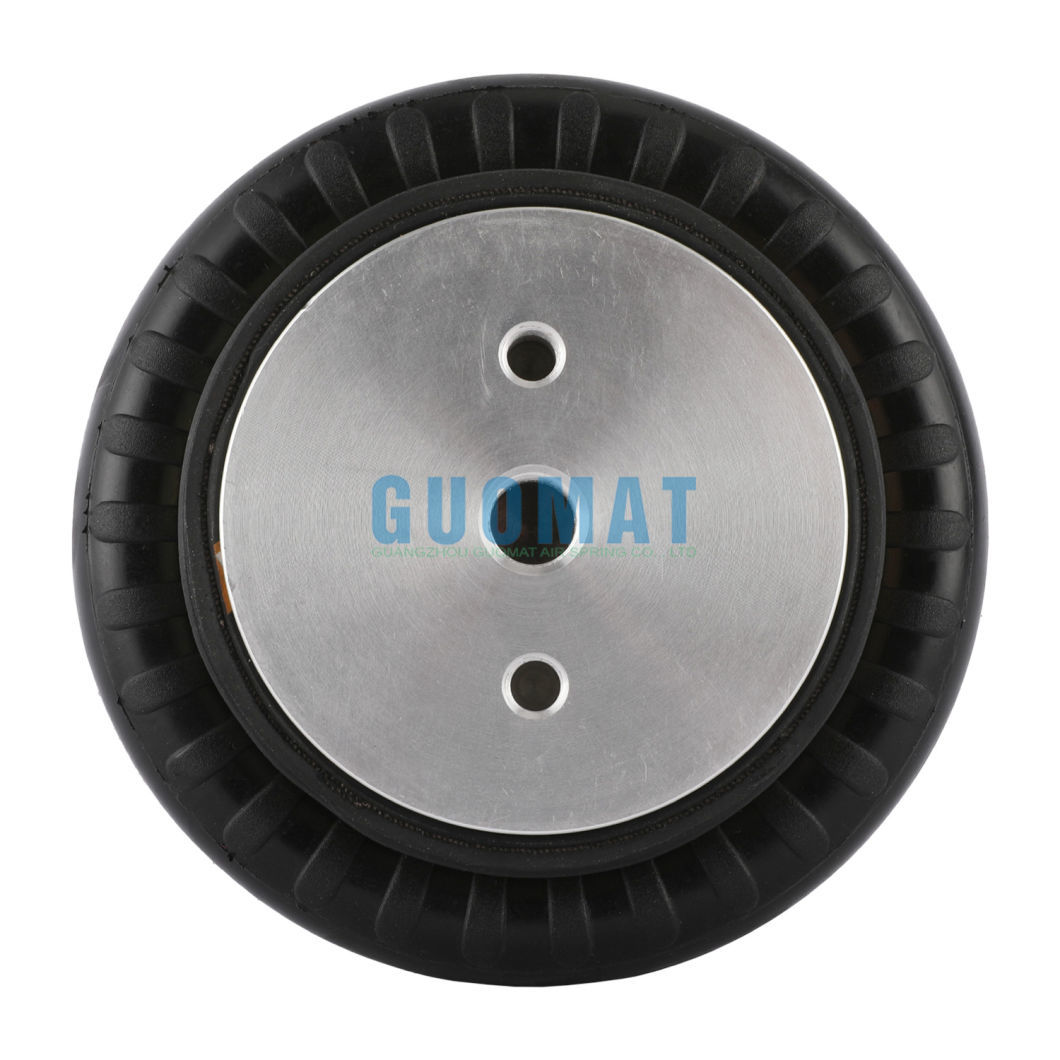

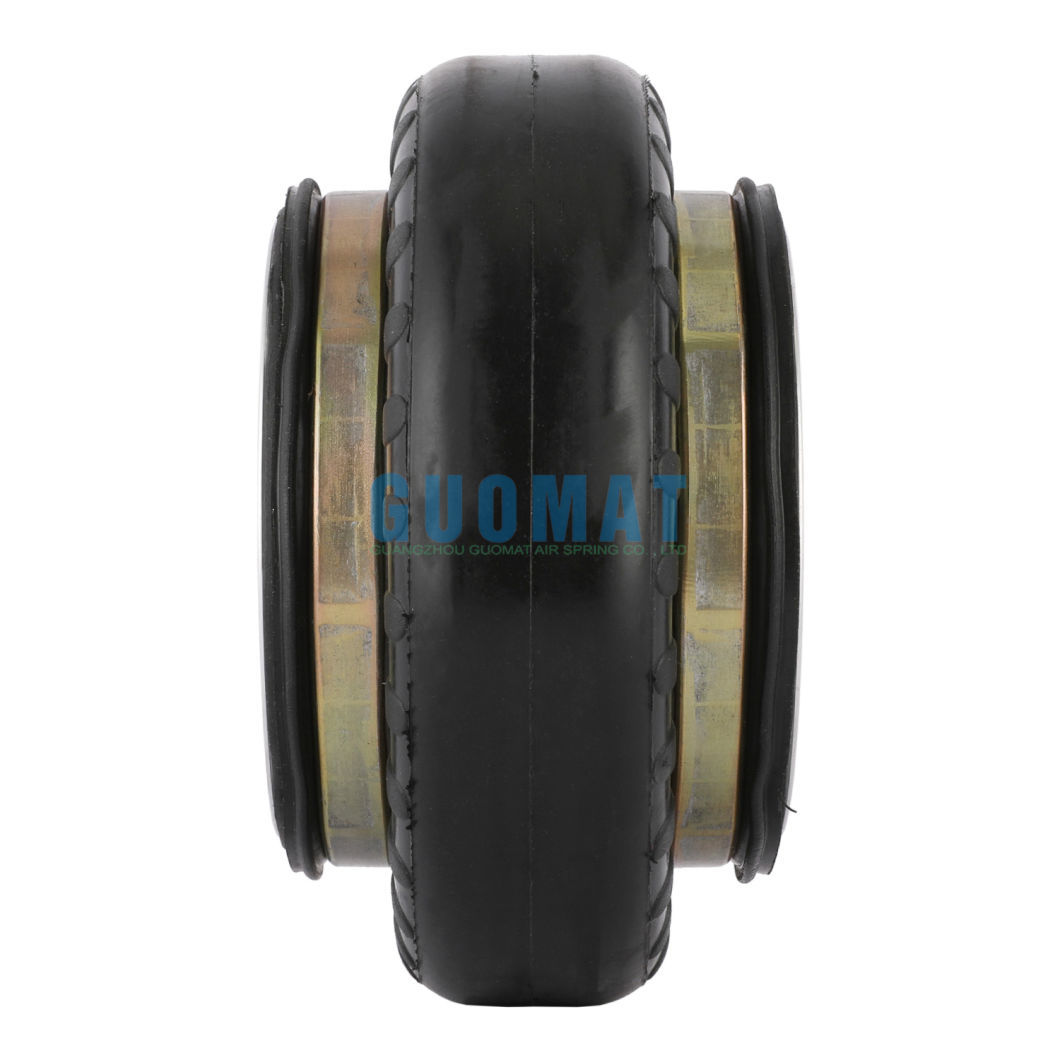

1B5-500 Goodyear Industrial Rubber Bellow Air Spring Convolute Style Air Pillow

Name: 1B5500 Goodyear Industrial Rubber Bellow Air Spring Convolute Style Air Pillow
Brand: GUOMAT
Price: 69.9 USD

China 1B5-500 Goodyear Industrial Rubber Bellow Air Spring Convolute Style Air Pillow wholesale

Brand Name : GUOMAT

Model Number : 1B5500

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 5pcs

Price : USD69.9-79.9/PC

Model NO. : 1B5-500

Spring Material : Rubber

Structure : Single Convoluted

Car Make : Guomat or Neutral

Brand : Guomat or Neutral

Damping Force Direction : Bidirectional

Quality : 100 % Tested

Cetification : ISO/Ts16949:2009

Function : Reduce Shock

Cross Reference : 1b5-500

Transport Package : Strong Cartons

Specification : Rubber

Trademark : GUOMAT

Origin : Guangzhou, China

HS Code : 8708809000

Supply Ability : 1000PCS/Week

After-sales Service : 12 Months

Warranty : 12 Months

Part : Air Spring

Position : Guomat or Neutral

Type : Gas-Filled

Spring Type : Air Spring

Samples : US$ 129.9/Piece 1 Piece(Min.Order) | Request Samp

Customization : Available | Customized Request

Contact Now

1B5-500 Goodyear Industrial Rubber Bellow Air Spring Convolute Style Air Pillow

Item Name : Steel Single Convoluted Air Bag

Product Number : 1B5-500

Factory Warranty : 12 Months

Product Material : Natural Rubber and Steel

Package : Strong Carton Box

Delivery Time : 2-8 working day

Spring Type : Single Convoluted Air Spring

Goodyear Original:1B5-500
Goodyear Original:1B5 500
Goodyear Original:1B5500
Goodyear Rubber Bellows NO. 1B5 579-913-500
Goodyear Rubber Bellows NO. 1B5 579 913 500
Goodyear Rubber Bellows NO. 1B5 579-913-500

Material Code	Nitrile Butadiene Rubber (NBR)
Maximum Ambient Temperature (°C)	70
Maximum Working Pressure (Bar)	8
Minimum Ambient Temperature (°C)	-40
Net Weight	0.85 KG
MAX Diameter	145 MM
Number of Convolutions	Single
Port Size	G1/4
Stroke Length	50.8 MM
Cylinder Type	Standard
End Cap Material	Aluminum

Characteristics of Air Springs
1. Highly durable, precisely designed and cost-effective for a variety of drive and vibration isolation applications
2. Offering superior quality and performance - time-tested design, fabric reinforced neoprene or 3. Natural rubber flexible member construction and corrosion resistant end retainers
4.As actuators, they provide linear or angular motion
5. Compared with the cylinder, it has a good stroke to compression height ratio
6. Accepts various drive media such as air, water, nitrogen or antifreeze
7. As isolators, they can effectively reduce the harmful effects of vibrations
8. Simultaneously isolate vibration and adjust load height, and achieve consistent vibration isolation under different loads
GUOMAT offers a variety of air spring types to suit your drive or isolation needs
