S200-2 Double Convolutedd Air Suspension Spring Samll Rubber Shock Absorption With Puncing Machine
Quick Details
Product Name:Double Convoluted Air Spring
Size:Standard
Part Number:F-200-2R
Warranty:12 Months
Color:Black
Net Weight:2.5KG
Gross Weight:3.0KG
Package Size:120mmX260mmX260mm
Compressed height:65mm
Maxumum Height:130mm
Full Stroke:65mm
Working Medium:Water,Air
Technical Data Purchase Order Data
| GUOMAT NO. | Reference NO. | Height H(mm) | Common Maximum Travel (mm) | Compression Max Outside Diameter (mm) | Effective Area (cm2) | Volume (L) |
| Design Height (mm) | Max Height (mm) | Min Height (mm) |
| F-200-4 | S-200-4 | 206 | 311 | 111 | ±70 | 260 | 315 | 7.2 |
| F-200-3 | S-200-3 | 152 | 232 | 82 | ±53 | 260 | 315 | 5.2 |
| F-200-2 | S-200-2 | 98 | 148 | 53 | ±35 | 260 | 315 | 3.2 |
| GUOMAT NO. | Reference NO. | Load (KN) | Dynamic Spring Constant (n/mm) | Natural Vibration Frequency (Hz) | Maximum Internal Pressure (MPa) | Internal Pressure Failure(MPa) |
| F-200-4 | S-200-4 | 15.4 | 177 | 1.7 | 0.88 | 2.9-3.9 |
| F-200-3 | S-200-3 | 15.4 | 235 | 2.0 | 0.88 | 2.9-3.9 |
| F-200-2 | S-200-2 | 15.4 | 373 | 2.5 | 0.88 | 2.9-3.9 |
Who We Are
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
What We Do
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know.
We are looking forward to establishing business with you.

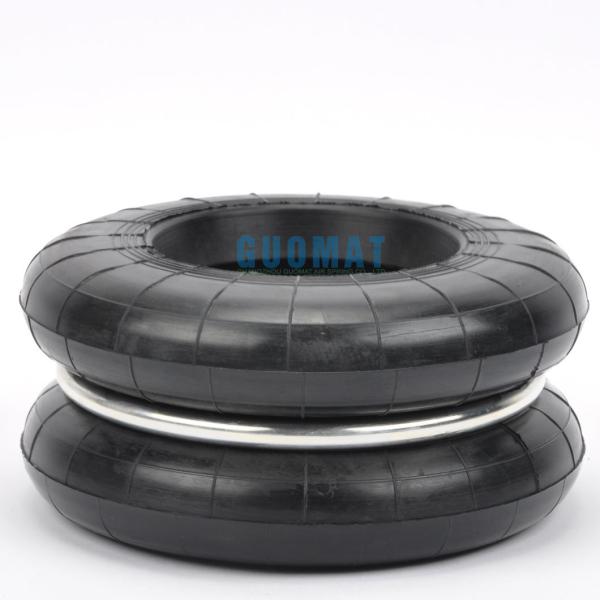

Product Images
