EB-165-65 Festo Single Convoluted Bellow Air Spring FS 70-7 Contitech Bellows Cylinder Roller Friction BrakeFor
Product Description
Manufacturer: GUOMAT
Manufacturer Number: 1B7070
Warranty: 1Year
Material: Rubber,Steel
Certification: ISO/TS16949:2009
Spring Type: Single Convoluted Air Spring
Convolutions: 1
MOQ: 3 Pieces
Delivery Time: 3-10 Working Days
Cross Reference Number
Contitech Part Number: FS 70-7
Contitech Part Number: FS70-7
Contitech Part Number: FS 70 7
Phoenix Part Number: SP 1 B 05
Phoenix c: SP1B05
Bosch Part Number : 822419002
Festo Part Number: EB-165-65
Weforma Part Number: WBE 200-E1
GUOMAT NO.1B7070 Technical Data
Top Plate Hole/Stud: 2XM8X1.25
Air Hole: G1/4
Bottom Plate Hole/Stud: 2XM8X1.25
Top Plate Diameter: 105mm
Bottom Plate Diameter: 105mm
Max. Height: 115mm
Min.Height: 50mm
Distance Between Threaded Holes:44.5
Natural Outer Diameter: 150mm
Max.Outer Diameter: 165mm
Festo Bellows Cylinders
| Type | Threaded hole center distance | outer diameter | Installation space | Cover diameter | Air Hole | Air hole and threaded hole distance | natural height | Min.heit | Max.height | Smax | Tilt angle max. |
| EB-145-60 | 20 | 145 | 160 | 90 | G1/8 | - | 90 | 50 | 110 | 10 | 20° |
| EB-165-65 | 44.5 | 165 | 180 | 108 | G1/4 | 0 | 90 | 51 | 115 | 10 | 20° |
| EB-215-80 | 70 | 215 | 230 | 141 | G3/4 | 0 | 110 | 50 | 135 | 10 | 20° |
| EB-250-85 | 89 | 250 | 265 | 161 | G3/4 | 38.1 | 110 | 51 | 140 | 10 | 20° |
| EB-325-95 | 157.5 | 325 | 340 | 228 | G1/4 | 73 | 130 | 51 | 150 | 10 | 15° |
| EB-385-115 | 158.8 | 385 | 400 | 287 | G1/4 | 79.4 | 145 | 51 | 175 | 10 | 15° |
Industrial Air Spring
Industrial air springs are important components in various applications, providing support, stability, and vibration isolation. Proper maintenance of industrial air springs is essential to ensure their optimal performance and longevity.
Cleaning and Maintenance
Proper cleaning and maintenance can help extend the lifespan of industrial air springs. Here are some tips:
Keep the Surrounding Area Clean: Maintain a clean environment around the air springs to prevent the accumulation of dirt, debris, or corrosive substances that could potentially damage the components.
Avoid Chemical Contamination: Be cautious when using cleaning agents or chemicals near the air springs. Some chemicals may cause degradation or corrosion of the rubber components. Follow the manufacturer's recommendations for cleaning agents, if necessary.
Protective Measures: Consider using protective covers or shields to minimize exposure to harsh environmental conditions, such as extreme temperatures, chemicals, or abrasive materials.
Lubrication: Some air springs may require periodic lubrication of specific components. Refer to the manufacturer's guidelines for lubrication recommendations, if applicable.

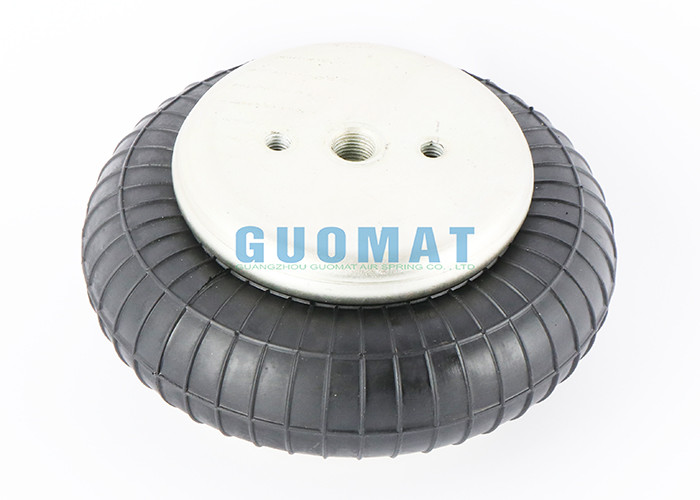

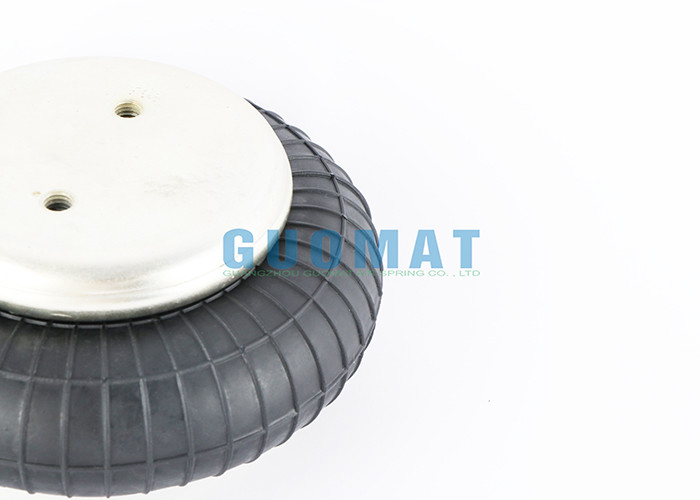

The Real Pictures
