Replaces FD 120-17 Contitech Double Convolution Air Actuator Airkraft 113053 2B-181

Replaces FD 120-17 Contitech Double Convolution Air Actuator Airkraft 113053 2B-181

Product Description

Technical Data: FD120-17 Air Spring

Cover diameter: 70 mm
Threaded hole: 2XM8X1.25
Center distance between threaded holes: 70mm
Maximum outer diameter of skin bag: 215 mm
Natural height: 167mm
Minimum height: 75mm
Maximum height: 230mm

GUOMAT Number: 2B12017-G3/4

Contitech Number: FD 120-17

Airkraft Number: 113053/2B-181

Gas Hole: G3/4

GUOMAT Number: 2B12017-G1/4

Firestone: W01-M58-6353

Contitech Number: FD 120-17

Airkraft Number: 113054/2B-181

Gas Hole: G1/4

GUOMAT Number: 2B12017-G3/8

Contitech Number: FD 120-17

Gas Hole: G3/8

GUOMAT Number: 2B12017-RC3/8

Contitech Number: FD 120-17

Gas Hole: RC3/8

What is an Industrial Air Spring
An industrial air spring is a type of suspension system used in various industrial applications. It consists of a flexible air-filled bag or bellows that can be inflated or deflated to provide support and cushioning. Industrial air springs are typically made of rubber or synthetic materials and are designed to withstand heavy loads and provide a smooth and stable ride.

These air springs are commonly used in a wide range of industries, including automotive, transportation, manufacturing, and agriculture. They are used to support and dampen vibrations in machinery, vehicles, and equipment. Industrial air springs can be found in applications such as:

• Suspension systems: They are used in heavy-duty vehicles like trucks, buses, and trailers to provide a comfortable ride and improve stability and load-carrying capacity.
• Isolation systems: They are used to isolate sensitive equipment and machinery from vibrations, shocks, and impacts. This helps protect the equipment and ensures smooth and precise operation.
• Conveyor systems: They are used in material handling equipment to provide shock absorption and reduce the impact of heavy loads on the conveyor belts.
• Industrial machinery: They are used in various types of industrial machinery, such as presses, stamping machines, and vibrating screens, to reduce vibrations and improve performance and longevity.
• Pneumatic systems: They are used in pneumatic tools and equipment to provide cushioning and absorb shocks, ensuring smooth operation and reducing wear and tear.

Packing Details

1. One piece in a poly bag.1piece in a carton.

2. Mark the product numbers and the QTY outside the carton.

3. As your requirement.

Marking

1. Be possible to mark your logo as request.

2. No specified, will mark our Logo as standard.

3. OEM is accepted.

2B-181 Double Convolution Air Actuator

113053 Double Convolution Air Actuator

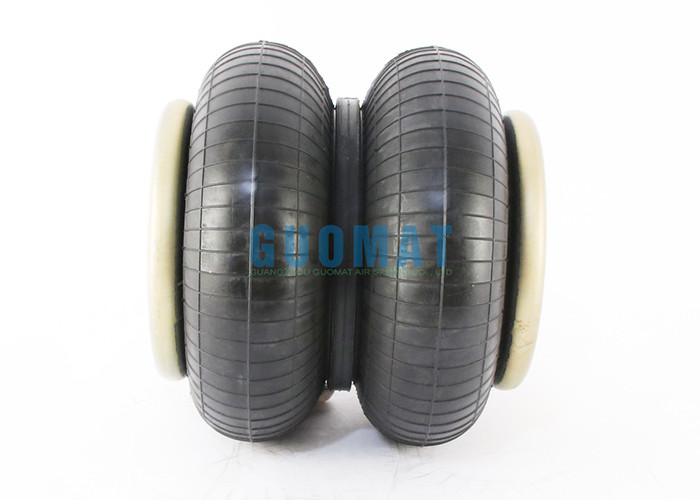

Replaces FD 120-17 Contitech Double Convolution Air Actuator Airkraft 113053 2B-181 Images
