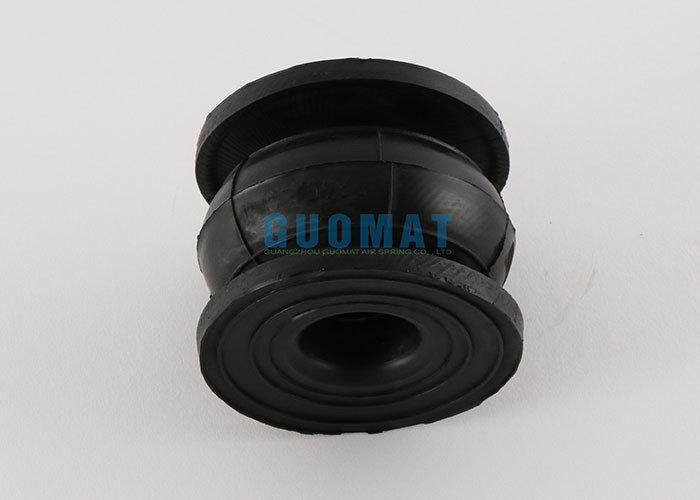

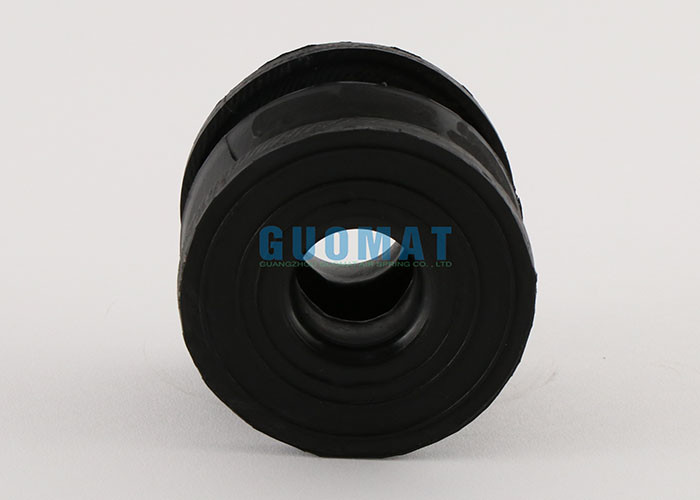

60mm Height Single Convoluted Parts Rubber Air Bellows GF40/60-1 Air Springs Actuator
Product Description
GF40/60-1 is a type of air spring used in suspension systems for industrial applications. the GF40/60-1 air spring has a nominal diameter of 40mm, and a working pressure of 0.8MPa. The air spring is made of rubber and has a bellows-like structure that allows it to absorb shocks and vibrations while providing support for heavy loads.
Technical Data: GF40/60-1 Industrial Air Spring
| Nominal diameter | 40mm |
| Outer diameter | 80mm |
| Maximum outer diameter | 90mm |
| Natural Height | 60mm |
| Max.height | 70mm |
| Min.height | 40mm |
| Number of convolution | 1 |
| Weight | 0.5KG |
| Type | Rubber bellows only |
| Burst pressure | ≥ 2.0 |
| Working pressure | ≤0.7Mpa |
| Fatigue test | ≥ 1 million times |
| Use medium | water, air |
GF type rubber air spring is the most common type, its upper and lower sides are wider for users to punch holes, and then according to the needs of users themselves, they can be used with machinery by installing matching flanges and cover plates. The fixed type is mainly used for papermaking machinery, and other machinery can also be used according to the usage conditions.
GF rubber air spring is widely used in papermaking machinery in the papermaking industry. It is used for stroke adjustment and tension control in pneumatic blanket straighteners, calenders, presses, scraper wires, dehydrators and other parts. The air spring can be very It can control the offset of the net blanket well, and can find the balance point in a short time, so as to achieve its stable operation.
GF Type Industrial Air Spring
| Model | Convolutions | Nominal Diameter | Max.Outer Diameter | Desigh Height | Stroke |
| GF40/60-1 | 1 | 40 | 80 | 60 | 40-70 |
| GF80/58-1 | 1 | 80 | 120 | 58 | 35-66 |
| GF100/140-2 | 2 | 100 | 150 | 145 | 68-168 |
| GF100/166-2 | 2 | 100 | 160 | 176 | 74-200 |
| GF100/238-3 | 3 | 100 | 160 | 256 | 98-275 |
| GF120/102 | 1 | 120 | 188 | 102 | 50-118 |
| GF150/206-2 | 2 | 150 | 230 | 216 | 74-250 |
| GF150/298-3 | 3 | 150 | 230 | 316 | 98-350 |
| GF200/206-2 | 2 | 200 | 280 | 218 | 74-250 |
| GF200/298-3 | 3 | 200 | 280 | 320 | 98-350 |
| GF230/206-2 | 2 | 230 | 310 | 218 | 74-250 |
| GF230/298-3 | 3 | 230 | 310 | 320 | 110-350 |
| GF250/206-2 | 2 | 250 | 330 | 218 | 74-250 |
| GF250/298-3 | 3 | 250 | 330 | 320 | 110-350 |
