FS70-7 CI S VP Contitech Rubber Bellow Only W01-358-0131 Firestone Air Spring Bag
Product Description
Item: Industrial Rubber Air Spring
Brand: GUOMAT
Model: 1B7070
Material: Natural Rubber
Warranty: 1 Year
Height: 81.7mm
Rubber Bellow Diameter: 154.5mm
Opening Diameter: 63mm
OEM Number
Contitech Order Number: 60512
Contitech OEM Number: FS70-7
Contitech OEM Number: FS 70-7
Contitech OEM Number: FS70-7 CI
Contitech OEM Number: FS 70-7 CI
Contitech OEM Number: FS70-7 CI S VP
Contitech OEM Number: FS 70-7 CI S VP
Firestone Style Number: 131
Firestone OEM Number: W01-358-0131
Firestone OEM Number: W01 358 0131
Firestone OEM Number: W013580131
Firestone OEM Number: WO1-358-0131
Firestone OEM Number: WO1 358 0131
Firestone OEM Number: WO13580131
Installing a New Air spring without Metal Parts
1. Clean the bead seats on the clamping plate and spring piston.Check that the mounting hardware is free of burr and is not corroded (replace if necessary).Apply a soap solution or an approved fitting lubricant(not grease) to the bead seat of the piston.
2. Compress the new air spring to a hand's width,while pushing it in below the upper bead.
3. Place the folded air spring between the piston and the clamping plate.
4. Fix the lower bead to its seat on the piston and the upper bead to its seat on the clamping plate.
5. Pressurise the air spring so that its beads fit precisely between the plate and psiton.The beads should snap into place.
6. Lower the vehicle and the air spring will automatically roll down the piston. The air spring is now fitted.
Single Convolution Air Spring Cross Reference Chart
| GUOMAT | Description | FIRESTONE | CONTITECH |
| Style | Number | Style | Number |
| 1B5050 | Rubber Bellow Only | 16 | W01-358-0010 | 62242 | FS50-5 S VP |
| 1B5050 | Crimped,G1/4,Blind Nuts | 16 | W01-M58-6140 | 61388 | FS50-5 CI G1/4 |
| 1B5050 | Crimped,1/4NPT,Blind Nuts | 16 | W01-358-7001 | 75246 | FS50-5 CI 1/4NPT |
| 1B7070 | Rubber Bellow Only | 131 | W01-358-0131 | 60512 | FS70-7 CI S VP |
| 1B7070 | Crimped,1/4BSP,Blind Nuts | 131 | W01-M58-6155 | 2681015000 | FS70-7 CI G1/4 |
| 1B7070 | Crimped,1/4NPT,Blind Nuts | 131 | W01-358-7731 | 75240 | FS70-7 CI 1/4NPT |
| 1B10010 | Rubber Bellow Only | 110 | W01-358-0100 | 63457 | FS100-10 S VP |
| 1B10010 | Crimped,G1/4,Blind Nuts | 110 | W01-M58-6145 | 65745 | FS100-10 CI G1/4 |
| 1B10010 | Crimped,1/4NPT,Blind Nuts | 110 | W01-358-7451 | 65529 | FS100-10 CI 1/4NPT |
| 1B1209 | Rubber Bellow Only | 116 | W01-358-0133 | 72994 | FS120-9 S VP |
| 1B1209 | Crimped,1/4BSP,Blind Nuts | 116 | W01-M58-6166 | 61358 | FS1209 CI G1/4 |
| 1B1209 | Crimped,3/4BSP,Blind Nuts | 116 | W01-M58-6165 | 2681030000 | FS1209 CI G3/4 |
| 1B1209 | Crimped,1/4NPT,Blind Nuts | 116 | W01-358-7564 | 75360 | FS120-9 CI 1/4NPT |
| 1B120-9 | Crimped,3/4NPT,Blind Nuts | 116 | W01-358-7561 | 75349 | FS120-9 CI 3/4NPT |
| 1B20010 | Rubber Bellow Only | | | 72850 | FS200-10 S VP |
| 1B33011 | Rubber Bellow Only | 19 | W01-358-0134 | 72539 | FS330-11 S VP |
| 1B33011 | Crimped,1/4BSP,Blind Nuts | 19 | W01-M58-6008 | 60424 | FS330-11 CI G1/4 |
| 1B33011 | Crimped,3/4BSP,Blind Nuts | 19 | W01-M58-6011 | 62743 | FS330-11 CI G3/4 |
| 1B33011 | Crimped,3/4NPT,Blind Nuts | 19 | W01-358-7011 | 74097 | FS330-11 CI 3/4NPT |

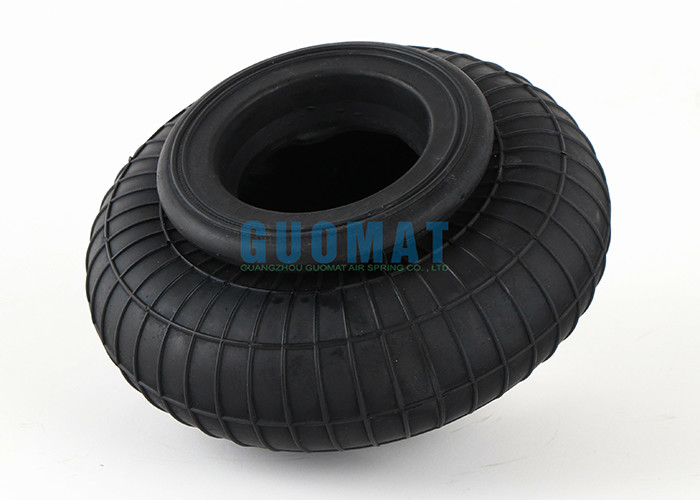

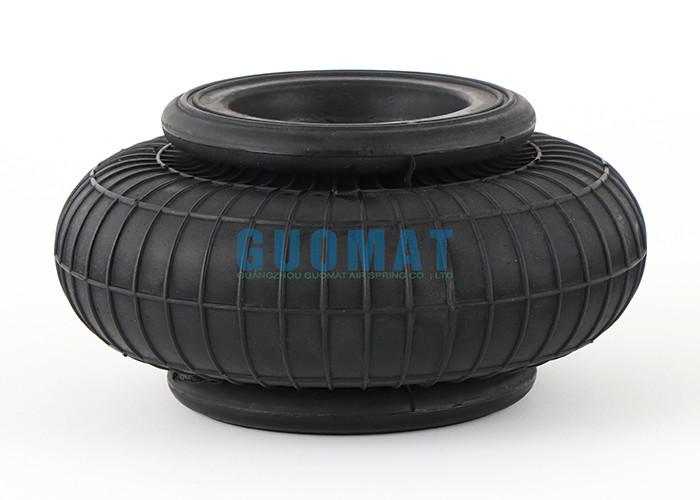

GUOMAT 1B7070 Rubber Air Bellow Real Pictures
