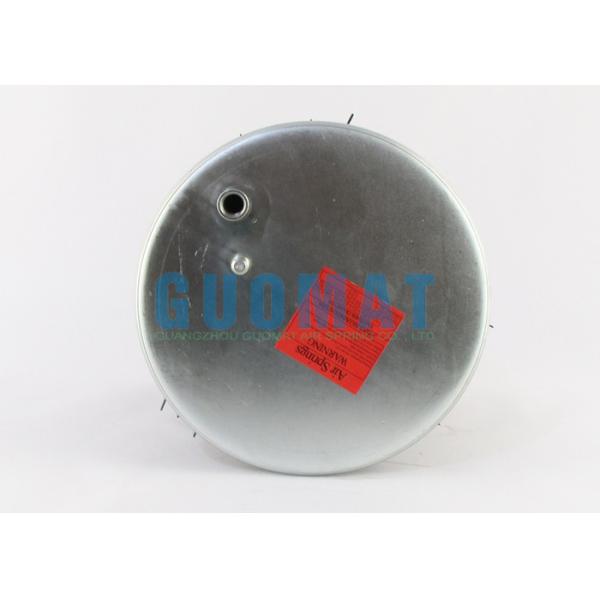

4884N1P06 Contitech Air Suspension Spring 1R11-861 Goodyear Truck Rubber Air Shock For MAN 81436006035
Product Description
Item Name: Rolling Lobe Air Spring
Brand: GUOMAT/Neutral
Material: Rubber+Steel
Manufacturer Warranty: 1 Year
Warehouse: Guangzhou Warehouse
Package: Carton
Delivery Time: 3-8 working days
Trade Terms: EXW,FOB,CIF,CNF
Cross Reference Number
| Contitech | 4884N1P06 | Contitech | 4884 N1P06 |
| Contitech | 4884 N1 P06 | Airtech | 34884K |
| Goodyear | 1R11-861 | Goodyear | 1R 11-861 |
| Airfren | 20.4884.6.CM | DT | 3.66423 |
| Templin | 04.010.6200.080 | MAN | 81.43600.6035 |
| Templin | 040106200080 | MAN | 81436006035 |
Technical Data
Cover Plate Diameter: Ø262
Air Inlet: M16X1.5
Bolt/Stud: M12X1.5
Rubber Bellow Diameter: Ø270mm
Bolt/Stud on Bottom: M18
Piston Width: 200mm
Piston Height: 130mm
Truck Air Suspension Air Spring
An air spring is a carefully designed flexible part of rubber and ply, which contains a certain volume of compressed air column inside. The air spring itself does not provide force and support load, it is done by compressed air column. The air spring is also equipped with a metal end seal plate, and the standard double-wire mesh layer is composed of four layers.
Trucks and trailers with air springs have far fewer "wear and crack" failures than trucks with leaf springs. This means longer cab and car life, lower operating costs, less downtime, etc.
Beyond that, the truck rides better, which is also important for a loaded truck. Trucks fitted with air springs experience less cargo damage than trucks with traditional leaf springs, improving economics. After the air spring is installed, the driver can drive more comfortably, with higher efficiency and less fatigue.
Other Related Air Spring
| GUOMAT No. | Cross Number |
| 1T3918 | 4183NP23 |
| 1T9393 | 4183NP24 |
| 1T5830 | 4838NP01 |
| 1T5832 | 4838NP02 |
| 1T5868 | 4757NP01,9519,D13T01,1VSC300-26,206785 |
| 1T6024 | 4390NP01,9505,D12T10,1KF21-1NP |
| 1T6297 | W01-M58-6297,1T15MPW-7,4157NP04,1R11-111 |
| 1T8747 | W01-M58-8747,1T17N-11,1R13-150 |
| 1T8701 | W01-M58-8701,1T17AR-4.5,836MB K6,1DF25-15 |
| 1T8721 | W01-M58-8721,836M2K1,1R12-711,1DF25-13 |
| 1T8722 | W01-M58-8722,836MK1,1R12-712 |
| 1T6345 | W01-M58-6345,810MB,1R14-716,1D28A-2 |
| 1T8632 | W01-377-8636,715MB |
| 1T8602 | W01-M58-8602,4881NP02,1R14-757 |
| 1T9580 | W01-358-9580,4884N1P02,1R13-118 |
| 1T8786 | W01-M58-8786,4912NP07,1R13-738-039 |
| 1T6251 | W01-M58-6251,1T15AA-3,50046,1R11-826,1T15S-6 |
| 1T9105 | W01-358-9105,1T15M-2,91012A319,1R12-132 |
| 1T7358 | W01-M58-7358,4813NP07,1R14-727 |
