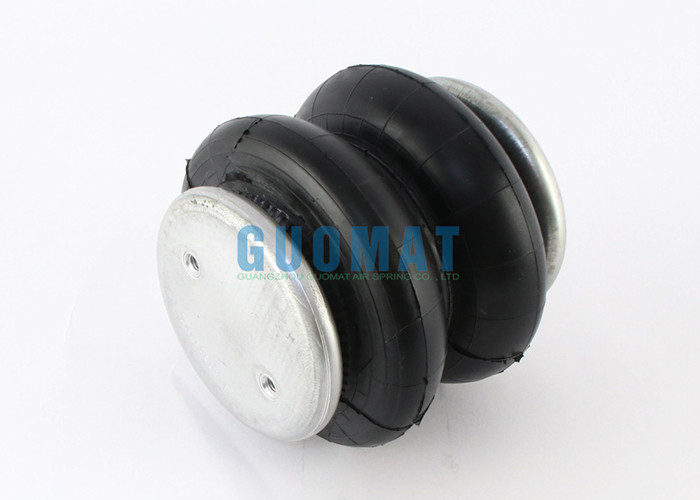

Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits

Name: Double Convoluted Truck Air Spring A017600335 Firestone Air Ride Rubber Air Bag Kits
Brand: GUOMAT
Price: 59.9 USD

China Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits wholesale

Brand Name : GUOMAT

Model Number : 2B0335

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Product Type : Truck Suspension Spring

Material : Rubber Bellow and Aluminum Cover

Warranty : 1 Year Warranty

Function : Reduce Shock

Quality : 100 % Tested

MOQ : 10 Pcs

Sample : Accept

Price Term : FOB,EXW,CNF,CIF

Contact Now

Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits

Product Description

Product Type: Air Spring,Air Bag

Truck Model: Heavy Duty Truck

Material: Steel + Rubber

Warranty: 12 Months

Color: Black

Place of Origin: Guangzhou,China

Certification: ISO/TS16949:2009

Packing: Neutral Packing

Quality: High-Quality

Position: Auto/Truck parts

Application: Truck Suspension Systems

OEM Reference Number

GUOMAT	2B0335
Firestone	A01-760-0335
Firestone	A01 760 0335
Firestone	A017600335
WATSON & CHALIN	AS-0092
Contitech	FD200-19 510
Contitech	FD 200-19 510

GUOMAT 2B0335 Air Spring Technical Data

Working temperature	-40°C bis +70°C
Failure testing	≥3 millions
Top Cover Plate Diameter	Ø132mm
Bottom Cover Plate Diameter	Ø132mm
Gas Hole / Air inlet	3/8NPT
Rubber Bellows MAX Diameter	Ø203mm
The Working Stroke	MAX 1230 mm to MIN 75 mm
Top Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth	2X3/8-16UNC
Screw Center Distance of Top Cover Plate	Ø70mm
Distance Between Screw and Air Hole	Ø33mm
Screw Center Distance of Bottom Cover Plate	Ø70mm

Our Advantage
1. Wide product range (truck, bus, truck seat, industrial equipment and car suspension)
2. Accept sample order, we can also make air spring according to drawing
3. Affordable, safe and efficient logistics services
4. Flexible payment methods
5. One year guaranteed warranty

GUOMAT Double Convoluted Rubber Air Spring

GUOMAT No	Outer Diameter (mm)	Max.Height (mm)	Min.Height (mm)	Firestone No.
2B6926	Max.251	260	75	W01-358-6926
2B6884	Max.251	274	81	W01-358-6884
2B6890	Max.251	274	81	W01358-6890
2B5243	Max.251	274	95	W01-358-6897
2B6900	Max.251	260	75	W01-358-6900
2B6902	Max.251	274	95	W01-358-6902
2B6905	Max.251.5	274	95	W01-358-6905
2B6908	Max.251	274	81	W01-358-6908
2B6910	Max.251	260	75	W01-358-6910
2B6926	Max.251	274	95	W01-358-6926
2B6932	Max.251	274	95	W01-358-6932
2B6935	Max.251	274	95	W01-358-6935
2B6940	Max.251	274	81	W01-358-6940
2B6941	Max.251	274	81	W01-358-6941
2B6949	Max.251	274	95	W01-358-6949
2B7788	Max.251.5	274	95	W01-358-7788
2B7795	Max.251	274	81	W01-358-7795
2B7892	Max.251	274	81	W01-358-7892
