Single Convolute Bellow Air Spring 1B8-560 Industrial Air Bags 579-912-560-00000
Product Description
Highly durable, sophisticated and cost-effective, GUOMAT gas springs are suitable for a variety of drive and vibration isolation applications. GUOMAT air springs offer superior quality and performance with a proven design, fabric reinforced neoprene or natural rubber flexible member construction and corrosion resistant end retainers. As actuators, GUOMAT gas springs provide linear or angular movement. As isolators, air springs effectively reduce the harmful effects of vibrations.
Model No.: 1B8-560
Material: Rubber
Manufacturer Warranty: 12 Months
Bellows Type: Single Convolution
Convolutions: Single
Air Inlet: 1/4 in
End Closure: Style 2 end Retainer
Temperature Range [MAX]: 150 °F
Temperature Range [MIN]: -40 °F
Firestone Goodyear Contitech Crossover Chart
| FIRESTONE | GOODYEAR | CONTITECH |
| W01-358-7008 | 1B12-300/313 | FS 330-11 474 |
| W01-358-7009 | 1B12-301 | FS 330-11 468 |
| W01-358-7564 | 1B8-550 | FS120-10 |
| W01-358-6890/20 | 2B9-606 | FD 200-19 539 |
| W01-358-6897 | 2B9-229/228 | FD 200-19 505 |
| W01-358-6900 | 2B9-216/204 | FD 200-19 319 |
| W01-358-6902 | 2B9-201 | FD 200-19 310 |
| W01-358-6905 | 2B9-206 | FD 200-19 315 |
| W01-358-6908 | 2B9-210 | FD 200-19 362 |
| W01-358-6910 | 2B9-200 | FD 200-19 320 |
| W01-358-6932 | 2B9-246 | FD 200-19 452 |
| W01-358-6935 | 2B9-201 | FD 200-19 499 |
| W01-358-6940 | 2B9-230 | FD 200-19 450 |
| W01-358-6941 | 2B9-265/280 | FD 200-19 448 |
| W01-358-7788 | 2B9-245 | FD 200-19 510 |
| W01-358-7795 | 2B10-226 | FD 200-22 524 |
| W01-358-7894 | 2B9-287 | FD 200-19 P04 1/4 M10 |
| W01-358-6905 | 2B9-206/209 | FD 200-19 315 |
| W01-358-7325/26 | 2B8-550 | FD 120-20 509 |
| W01-358-6945 | 2B9-253 | FD 200-25 427 |
Matters Needing Attention
1. Do not place the air spring in a twisted position. Doing so may result in damage to the air spring assembly.
2. Do not exceed the maximum protrusion height shown.
3. Do not exceed the maximum inflation pressure of 100 psi
4. Do not exceed 200 psi internal pressure
5. Do not let the air spring compress below its compressed height without bumper in any application.
6. Do not use oil

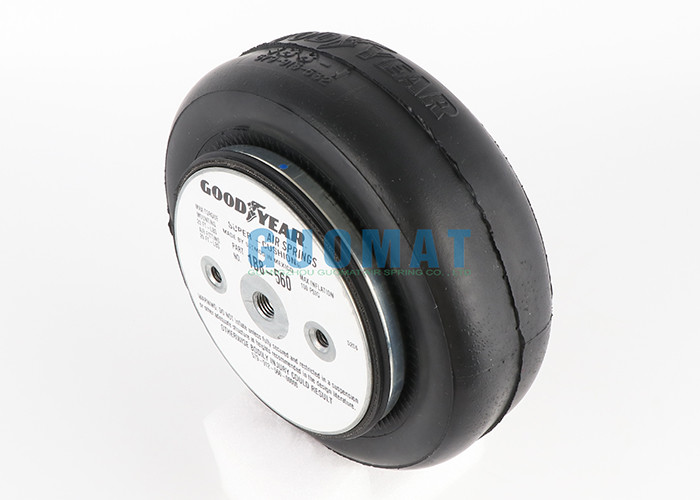

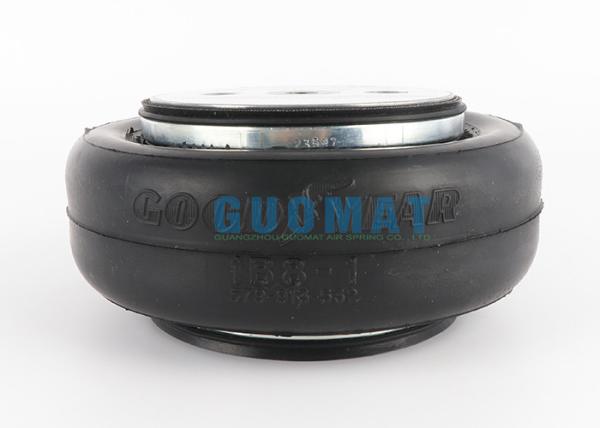

The Pictures of Goodyear 1B8-560
